Don't throw away, repair!Repairable ratchet

Don't throw away, repair !

Extending useful life by repairing is a great way of working for the future.

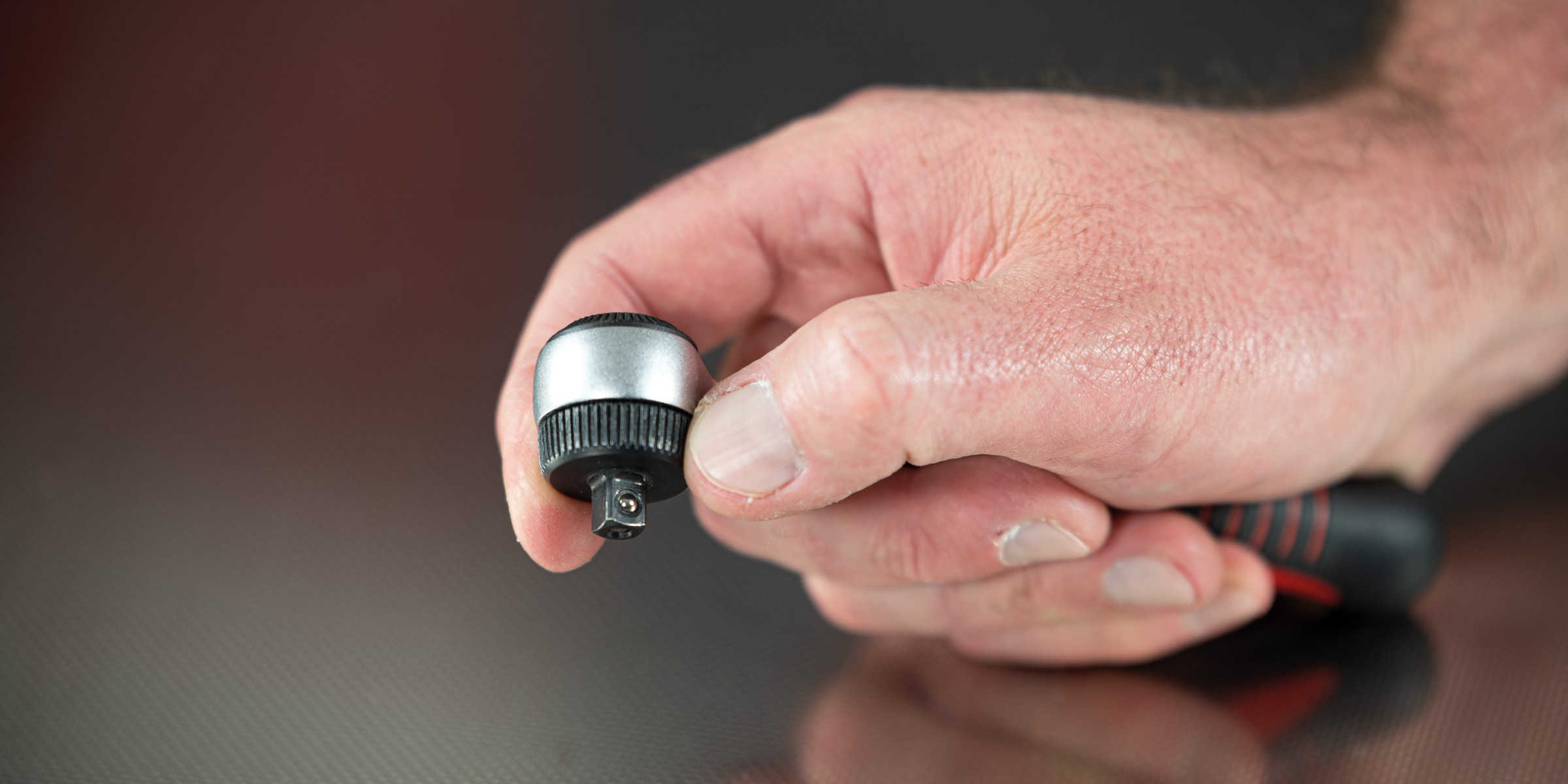

REPAIRABLE RATCHETS

The advantage of a ratchet is speed, but you can't force the mechanism, which can give way. Should this happen to you, however, the design of round and FAST ratchets means that only the mechanism can be repaired.

HOW TO REPAIR A MOB RATCHET?

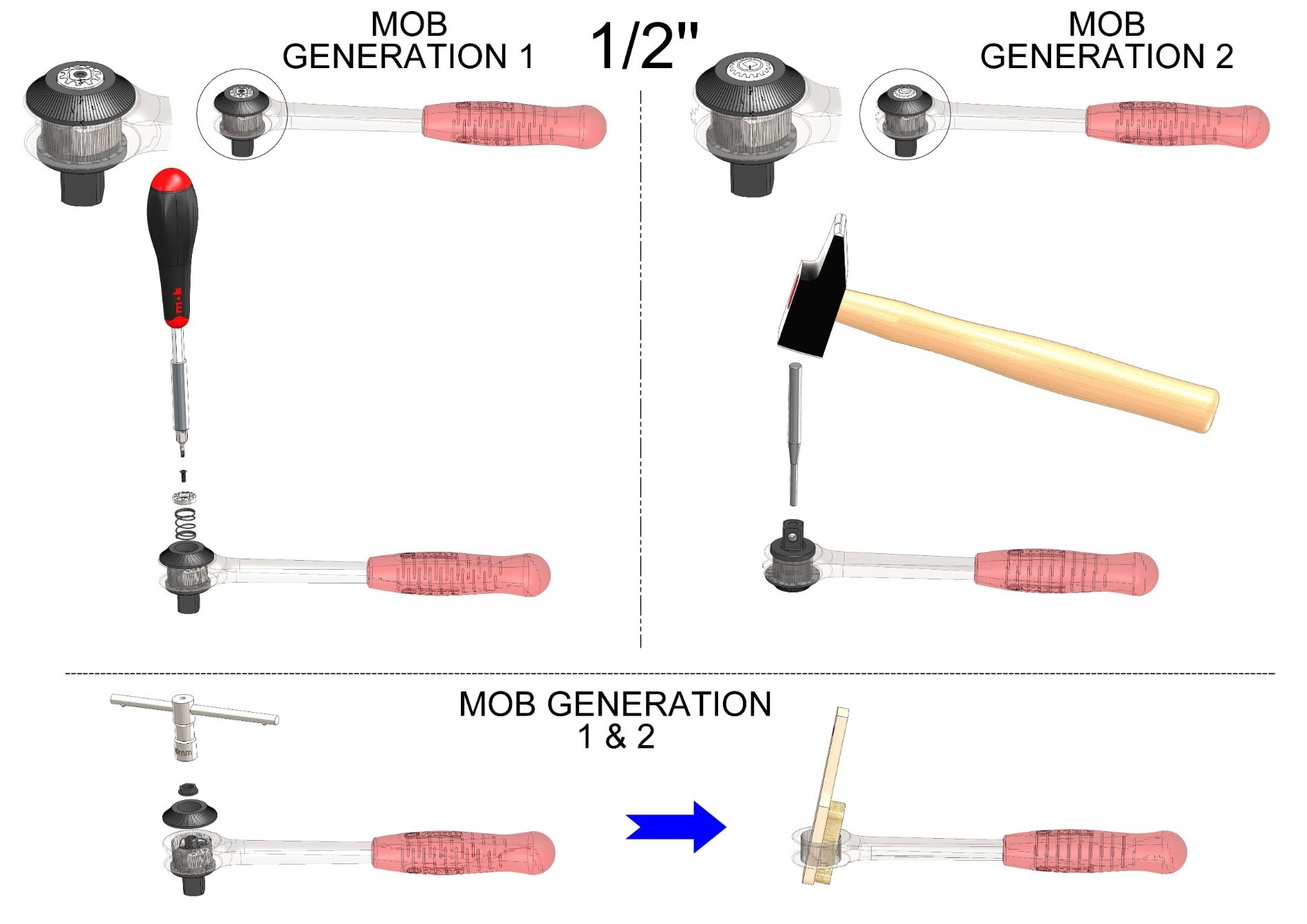

Generation 1: If the ratchet has a screw on the top, unscrew it.

Generation 2: hunting with a square-sided pin-hunter.

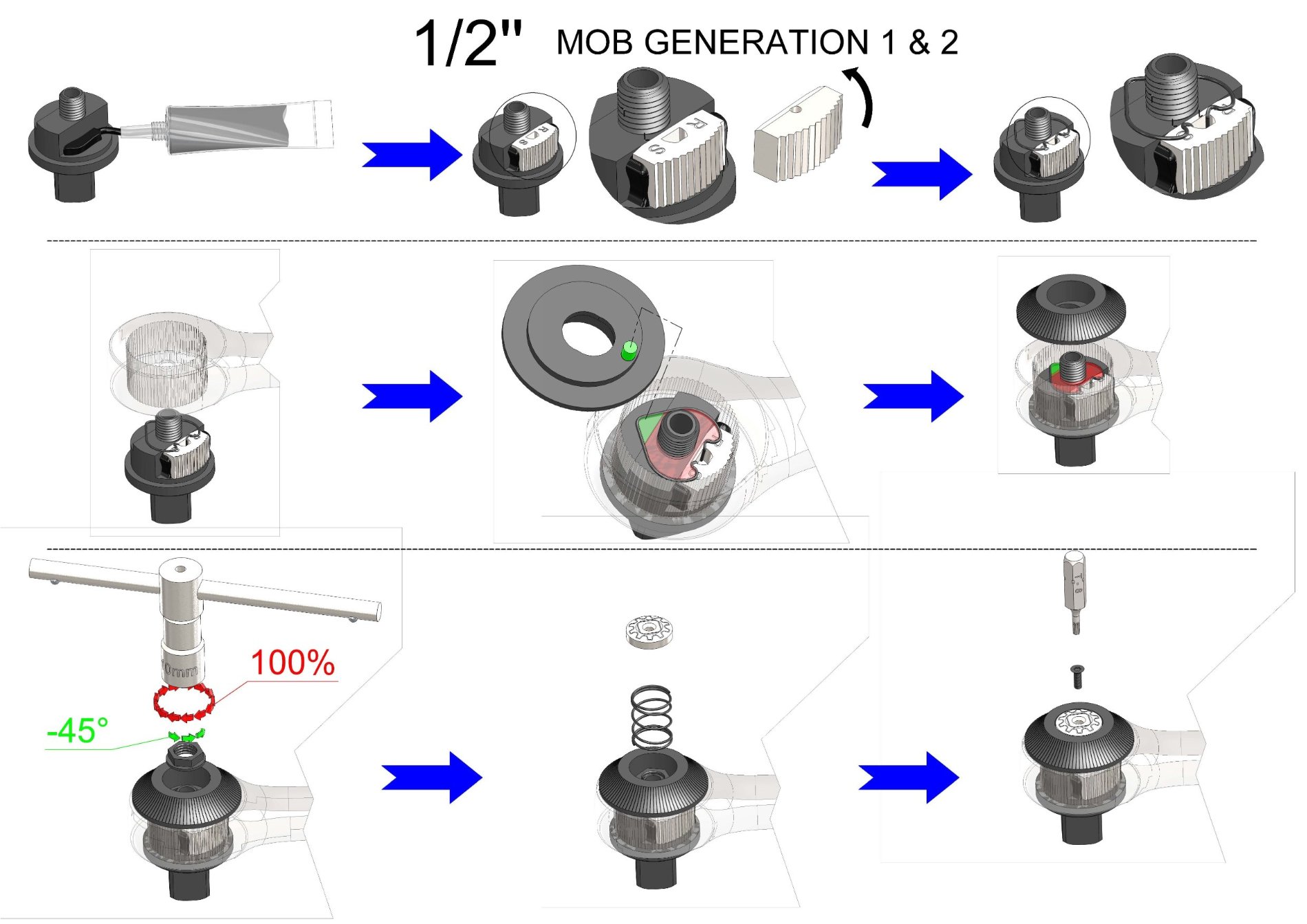

Unscrew the nut with a 10mm socket. Then brush.

Get a repair kit.

Grease before fitting the ratchet. Position core spring.

Position the crown so that the nipple is in the green area of the diagram.

Tighten nut with 10mm socket.

Then release 1/4 turn.

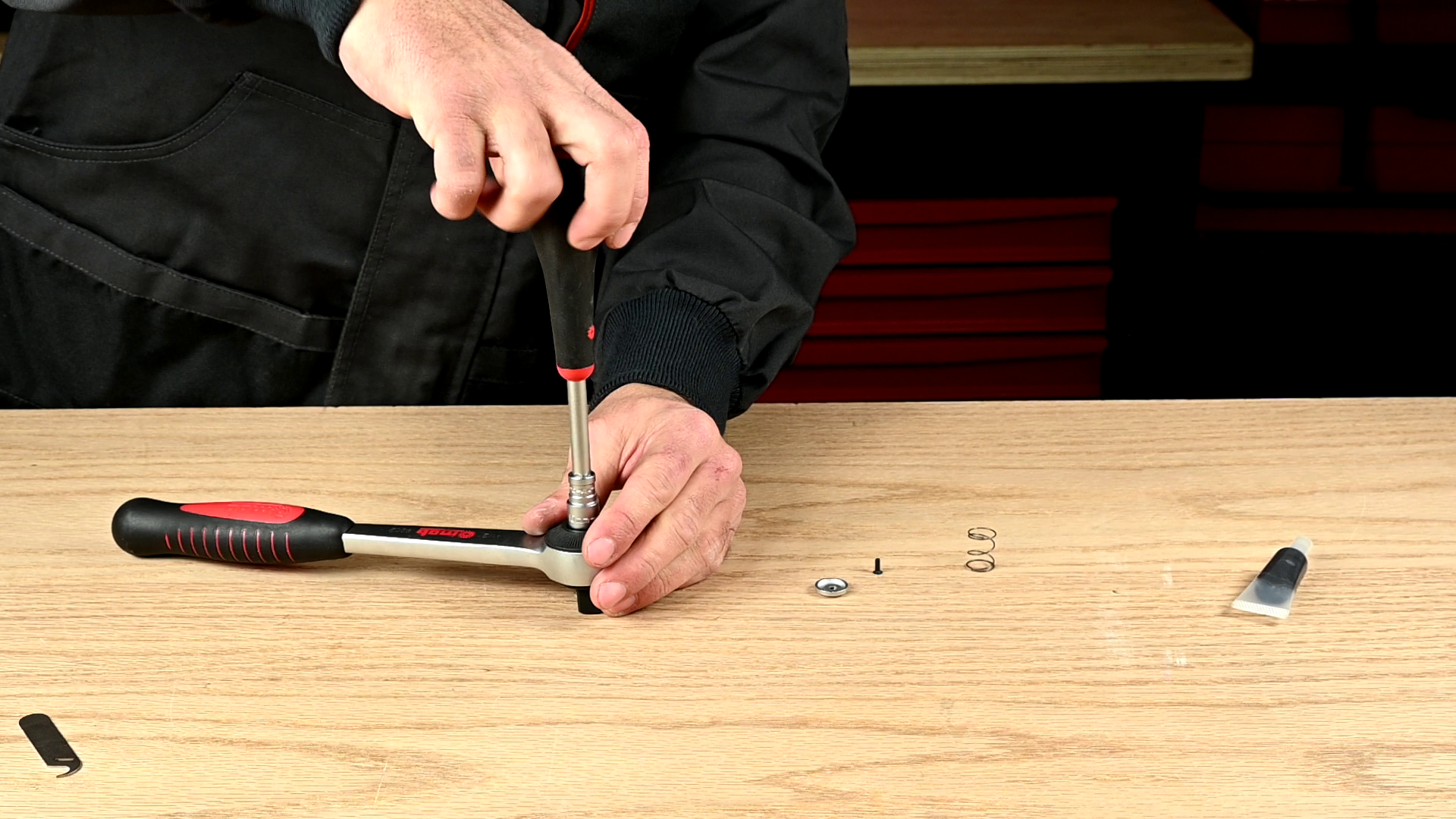

Fit the spring and knob, then screw on using an 8 mm Torx.

GARANTee

A product under warranty can therefore be repaired by us, or by yourself if you prefer, thanks to our kits and tuto-video. The lifetime warranty applies in the event of a defective product. However, there are a number of cases of excessive use that fall outside the scope of this warranty, such as a ratchet that has been forced or knocked. In this case, repairs or kits are at your expense. Kits are guaranteed, so even if you use the kit to carry out repairs yourself, the warranty will continue to apply.
