Stronger forged steelVices

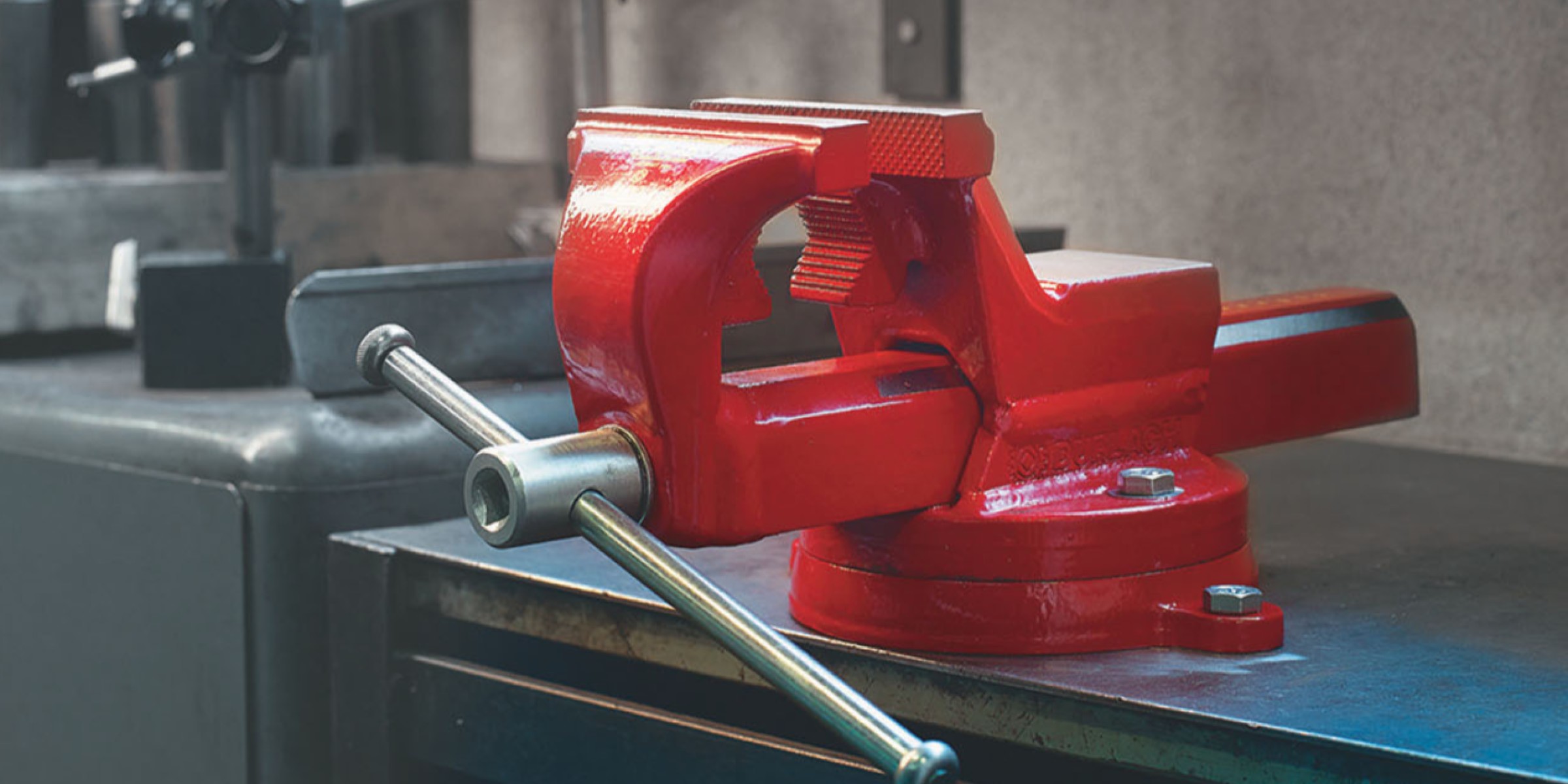

L’étau professionnel en acier par MOB
Hold your parts firmly to cut, saw, drill, assemble or weld them. For all this, your vice must be reliable, resistant... and practical! Our ½’’ square at the front, designed by the MOB R&D team, is ideal for working on bulky parts or in difficult positions.
A practical and ergonomic vice
  • ½ square in addition to the handle.
  • Forged and tempered steel.
  • 5 ton clamping force.
  • Special pipe clamp model optional.

With our ergonomic and efficient vice, you have the power to achieve anything !

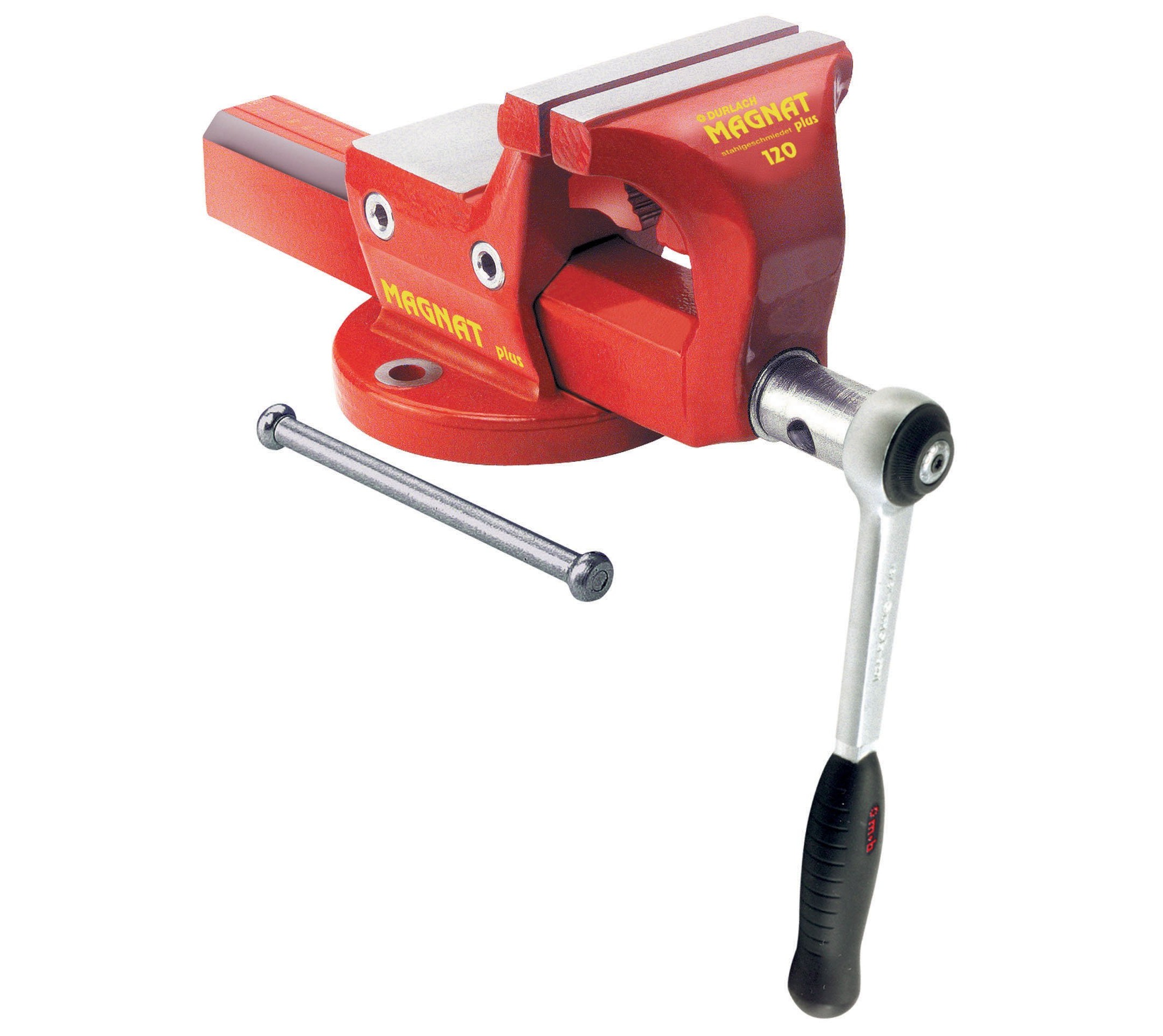

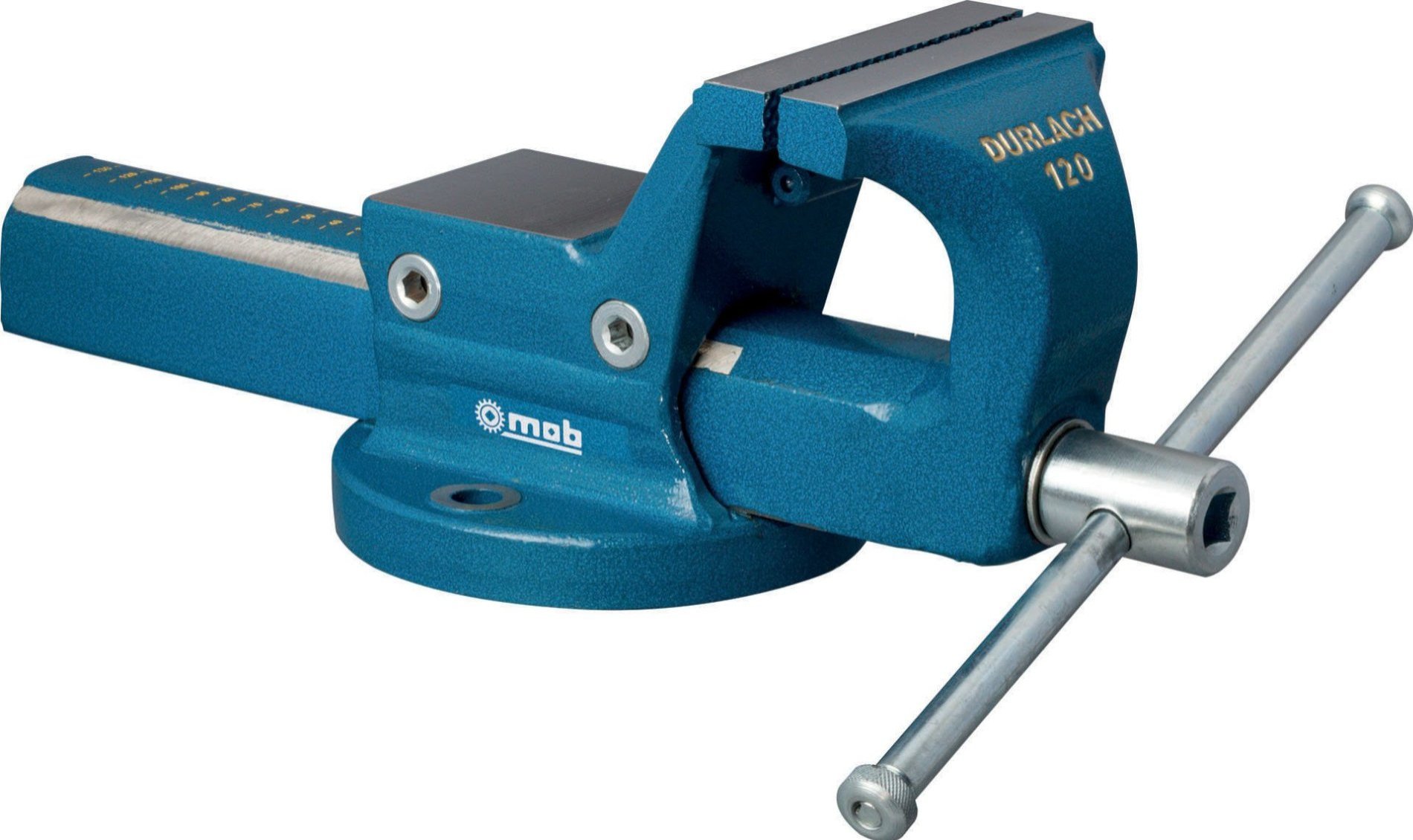

THE POWER OF THE STEEL VICE: ITS DOUBLE CLAMPING SYSTEM

To make your life easier, the MOB vice has not one but two clamping systems, which are doubly practical:

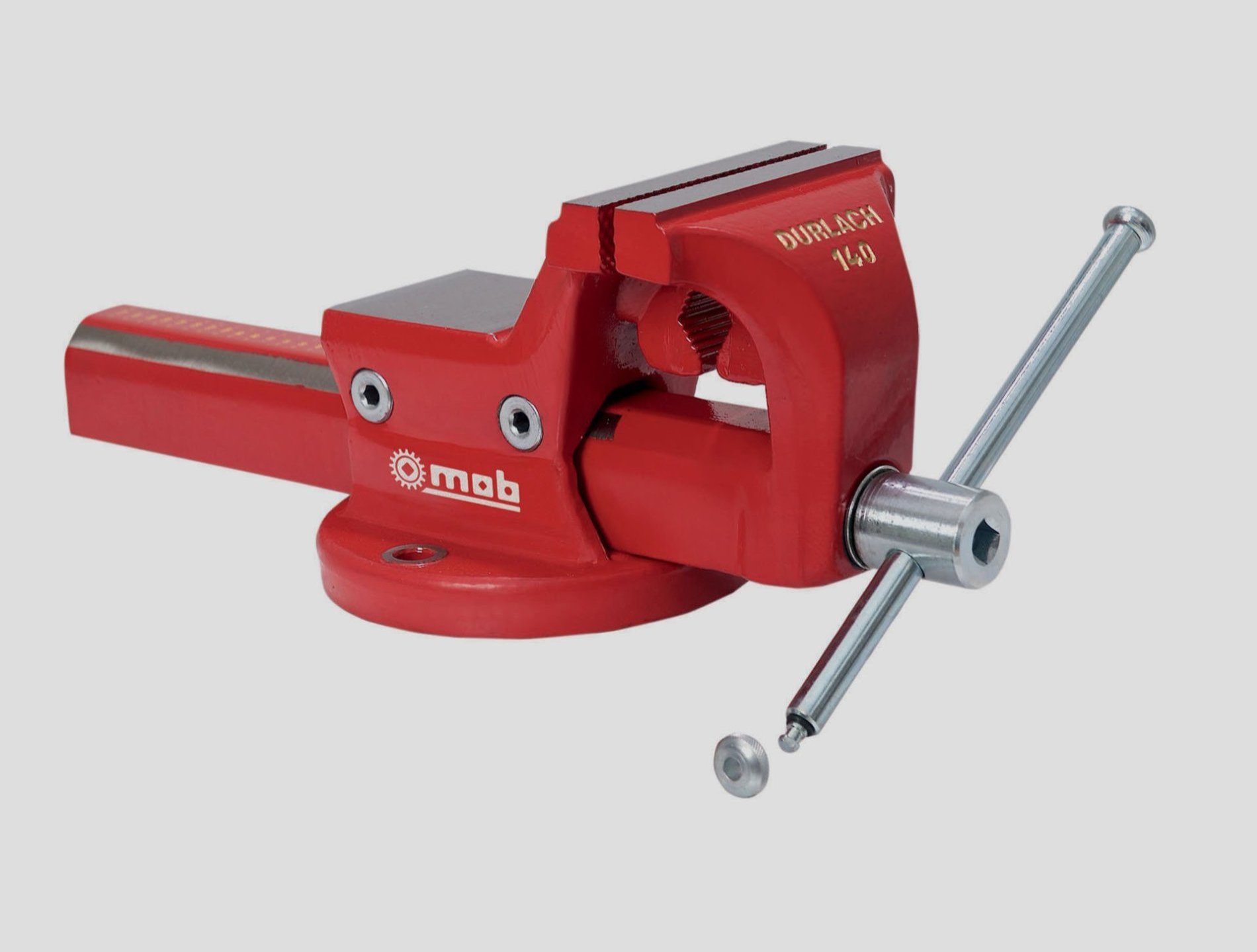

  • A classic tightening with a removable sliding handle.

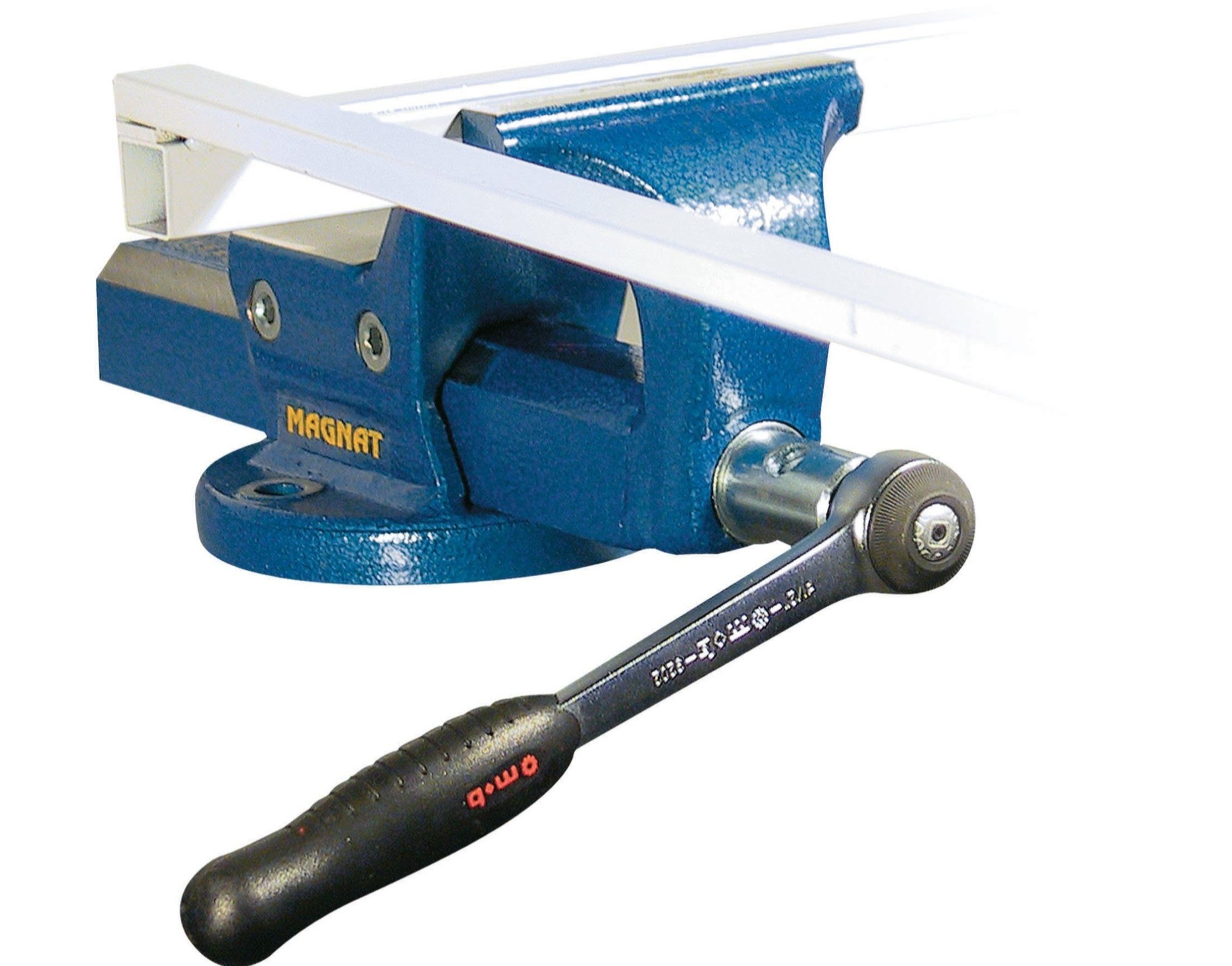

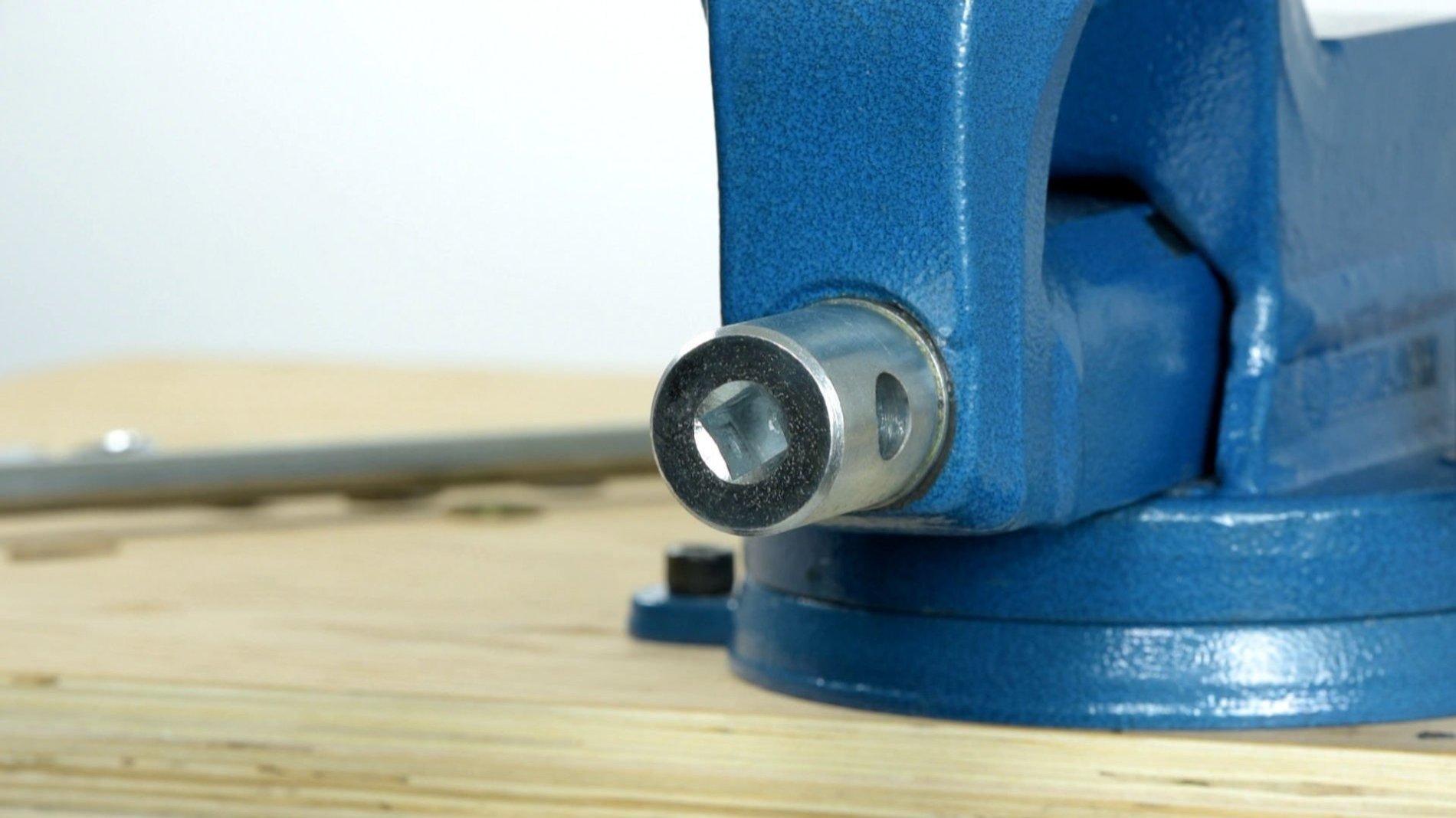

  • A ½'' square at the front, exclusive to MOB, which allows the vice to be tightened with a ratchet.

Thanks to the ½'' square at the front, it is much easier to clamp bulky parts and work in difficult positions. When a bulky part advances forward it can prevent or interfere with the rotation of the handle. It then becomes impossible to maneuver. Simply remove it and use a ½” ratchet to tighten.

To go faster, use a screwdriver or a drill with a ½” adapter. For controlled tightening, you can replace the ratchet with a ½” torque wrench.

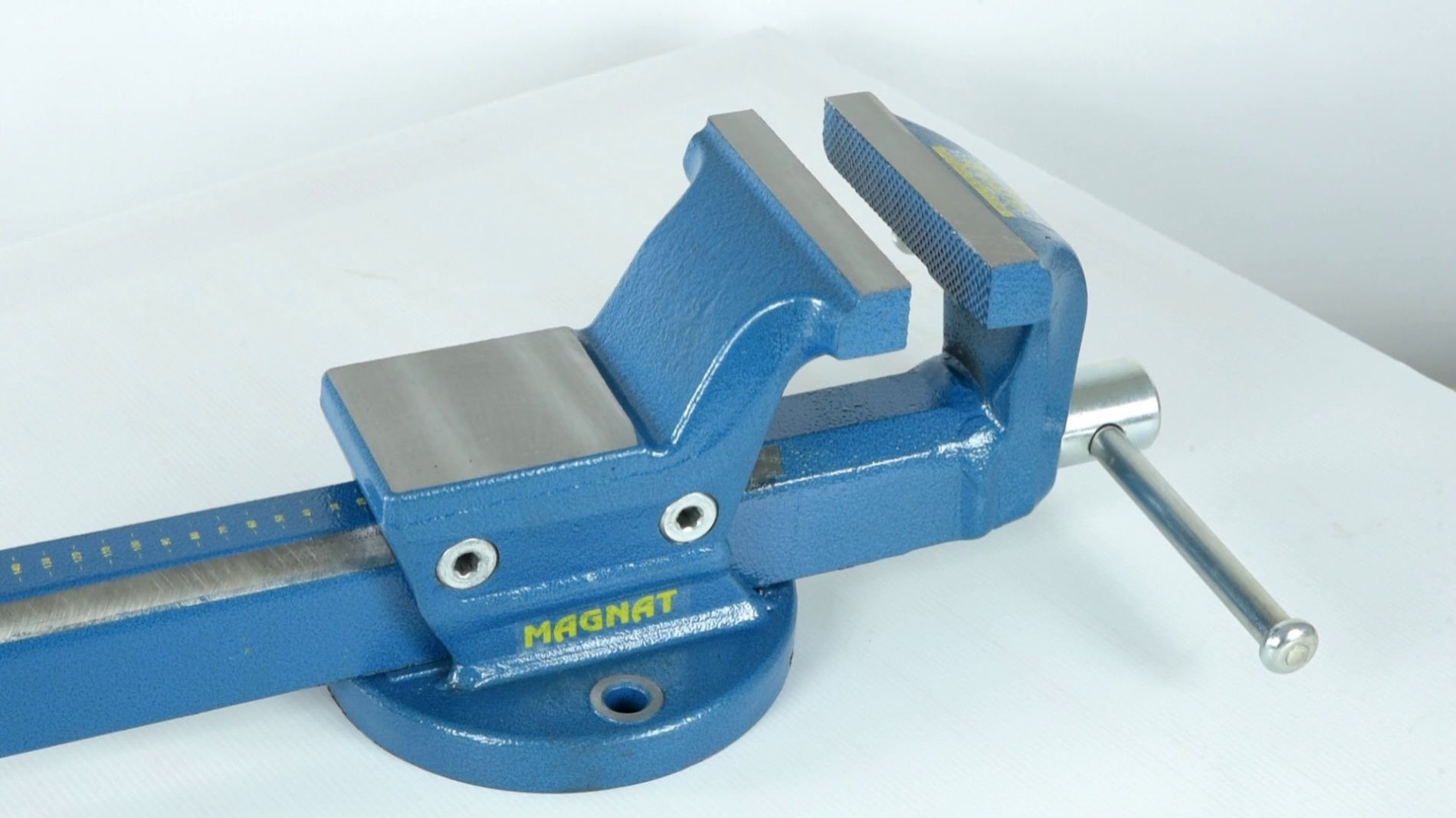

Our vise is also equipped with a hardened anvil table, with excellent flatness for straightening small parts or doing upsetting work.

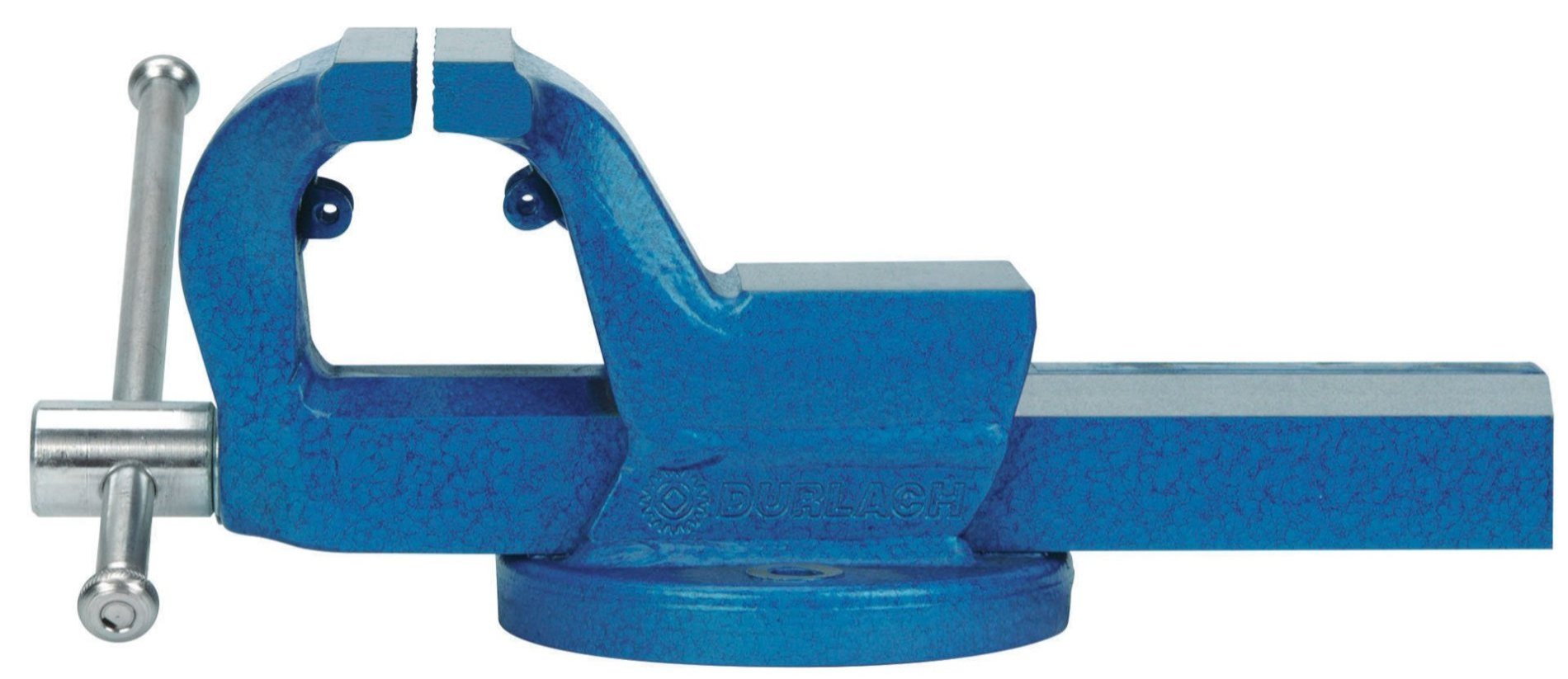

A MOB QUALITY VICE

  • The steel chosen is a high quality CF45 Manganese Silicon alloy steel. The Durlach vice is forged and tempered, which makes it extremely resistant. A symbol of our blacksmithing expertise, forging steel offers greater resistance than cast iron and structural uniformity.
  • Unground widened welds to preserve their integrity.
  • Milled and induction hardened jaws (52 - 58 HCR) for more resistance.
  • A jaw made in 2 parts, welded at 360°, for perfect parallelism and the same height. Parallelism is checked during manufacture.
  • A movable jaw adjuster that keeps the vise looking new longer.
A movable jaw adjuster that keeps the vise looking new longer.

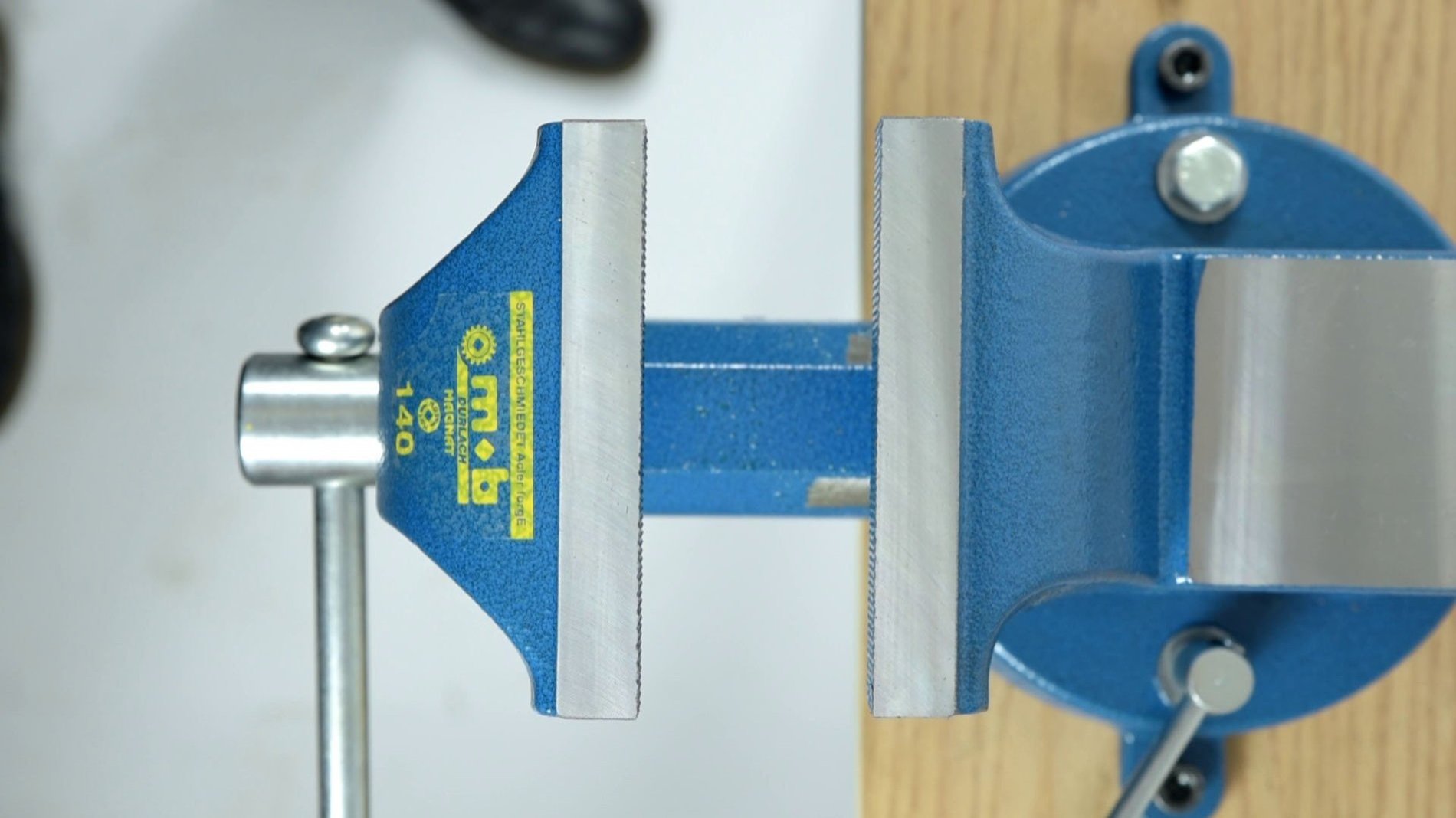

PRECISE AND POWERFUL TIGHTENING

The design of the MOB professional vice offers you very good clamping performance :

  • Parallelism is checked during production. The opening is smooth.
  • A 200mm opening for a 140mm vice.
  • A two-speed trapezoidal thread auger (square worm thread). The system is protected from contamination.
  • A clamping force of 5 tons.
  • Ribbed jaws for a good hold of the parts. You can add removable jaws, so as not to damage the parts (aluminum, fiberglass, rubber).

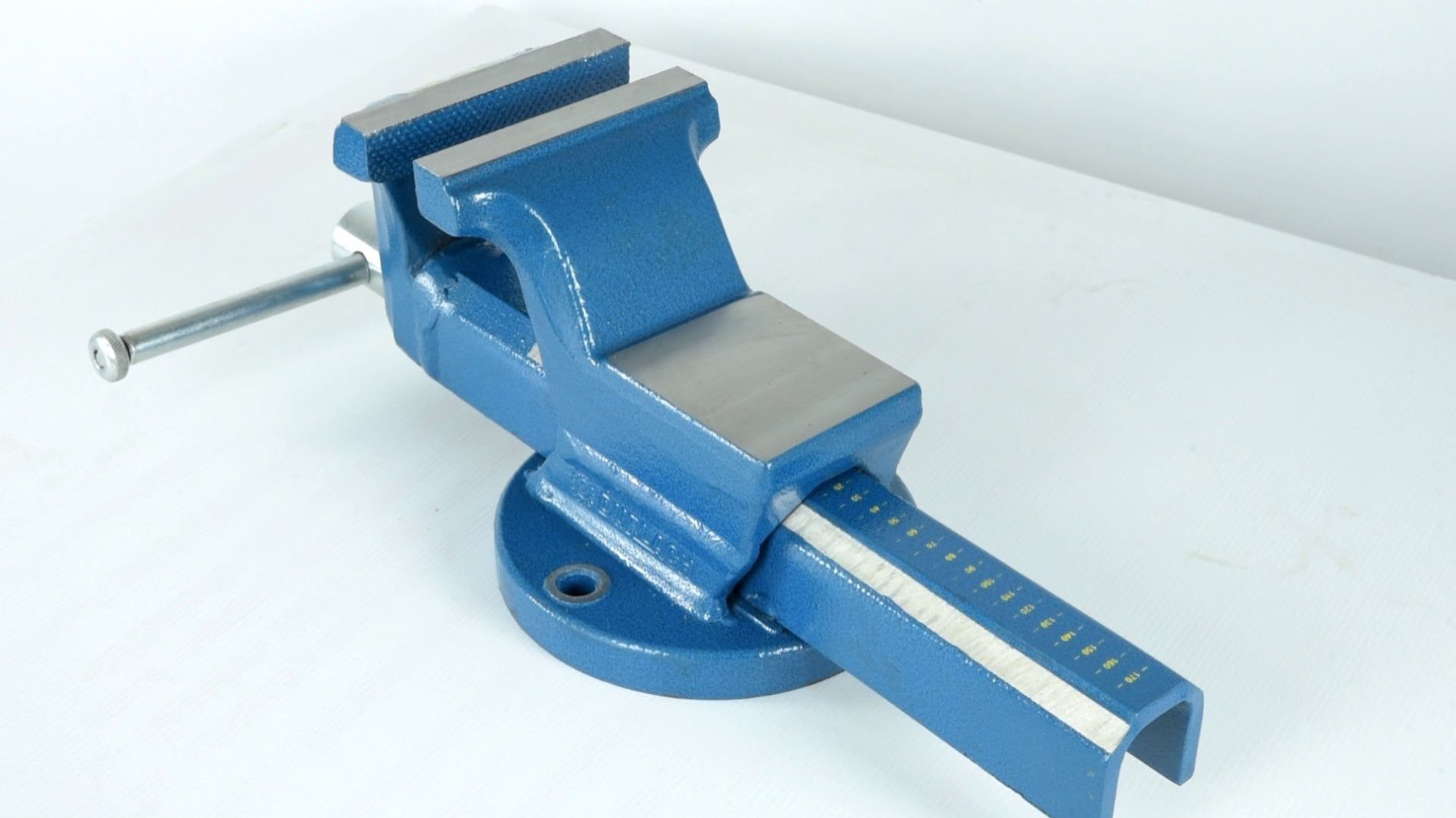

  • A slide with graduated scale to give a point of reference.
  • Rounded edges for better ergonomics.

GAIN IN MOBILITY

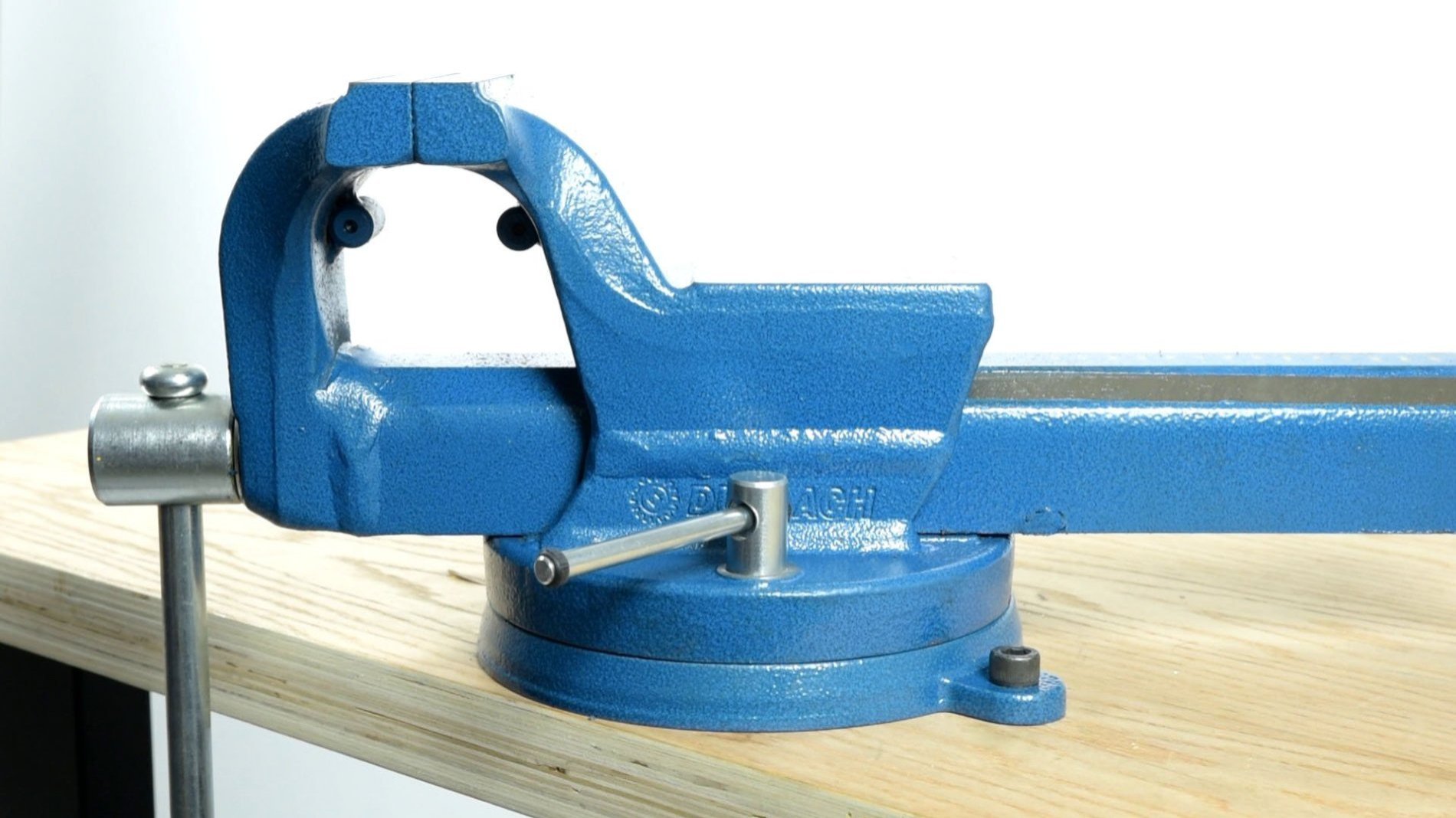

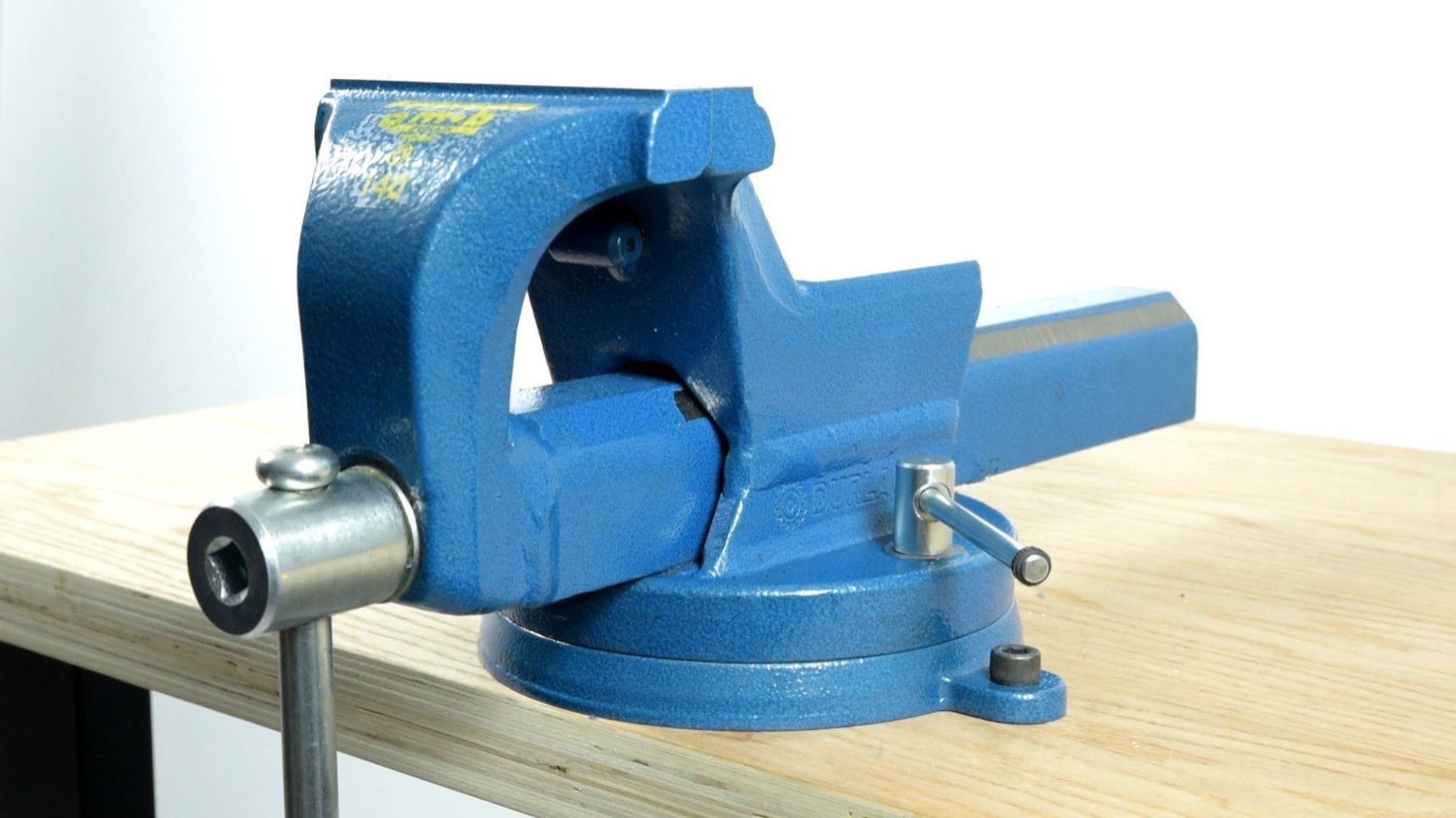

The base has holes for attaching directly to the workbench or for adding a rotating base. A rotating base the base offers significant mobility. It allows easy orientation of the vice at 360°, for example when it comes to working very long parts.

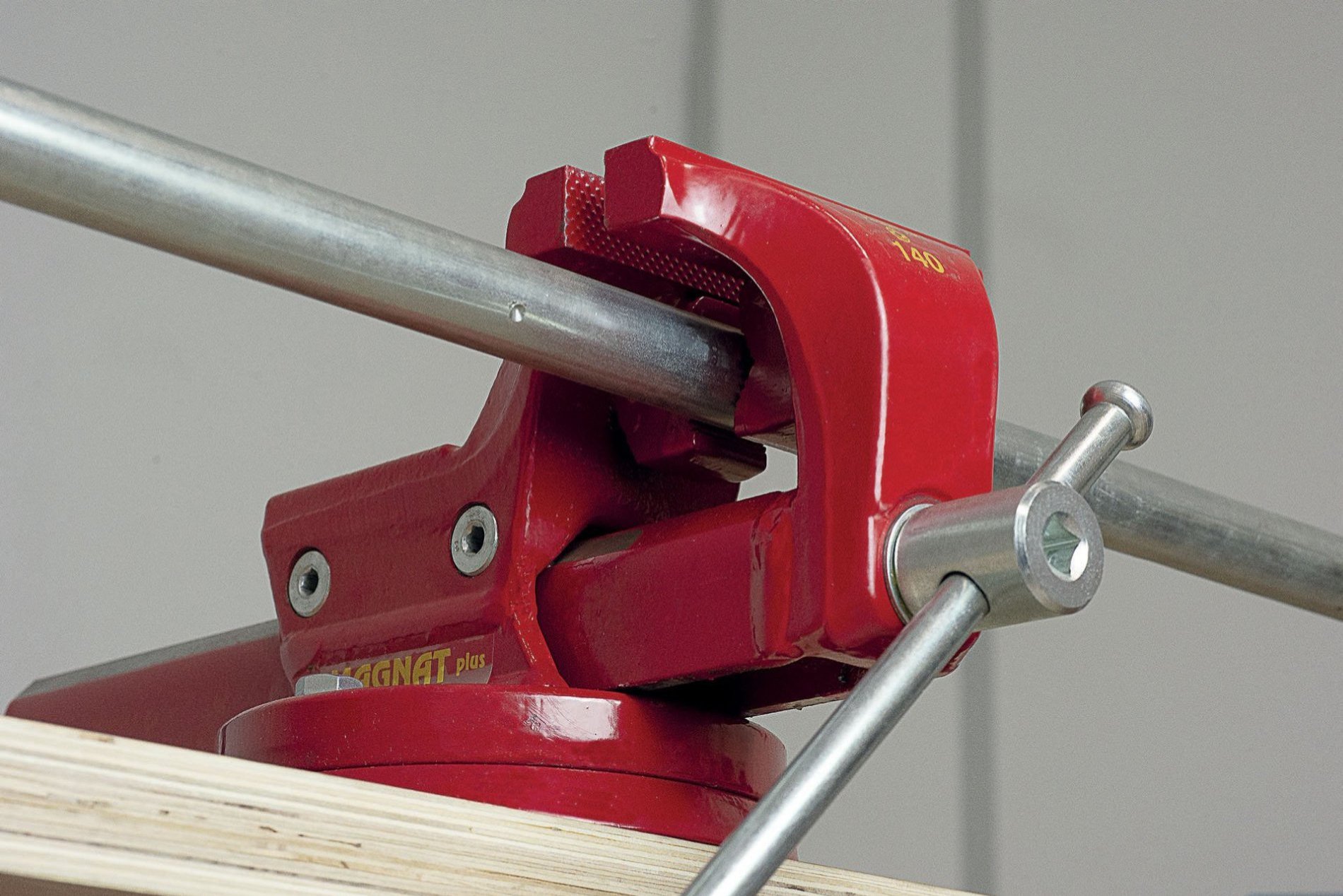

THE SPECIAL PIPE CLAMP VIce

For all clamping work on cylindrical parts and tubes, we have developed a special pipe clamp version. Under the straight bit, this model has a curved bit, special tube.

THE KNOW-HOW OF DURLACH VIcES

In 1991, in order to extend our know-how, we integrated the Durlach vice manufacturing company into MOB.

We have preserved the qualities of their products and brought our own developments, for reliable and ever better designed vices.

All our vices are guaranteed for 10 years.
