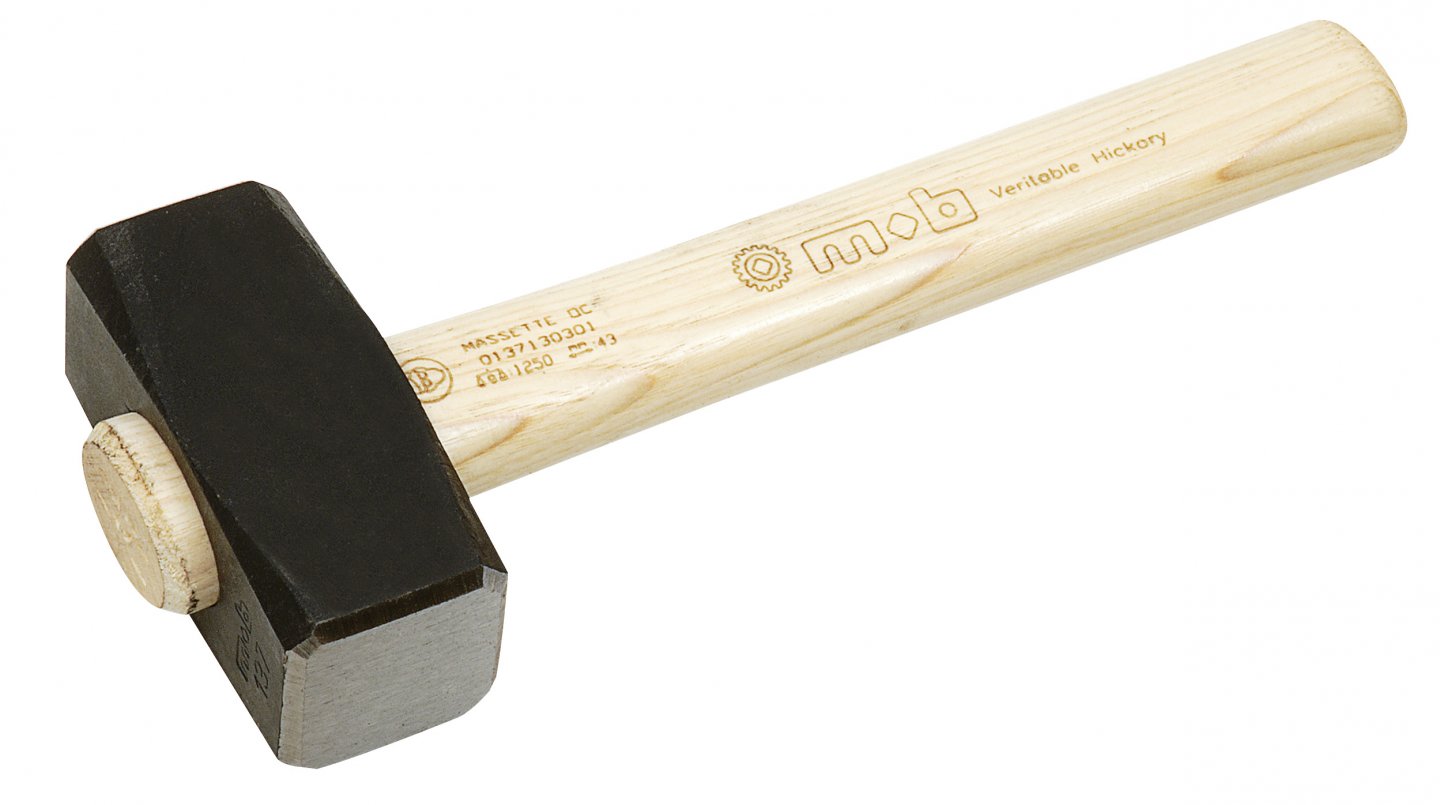

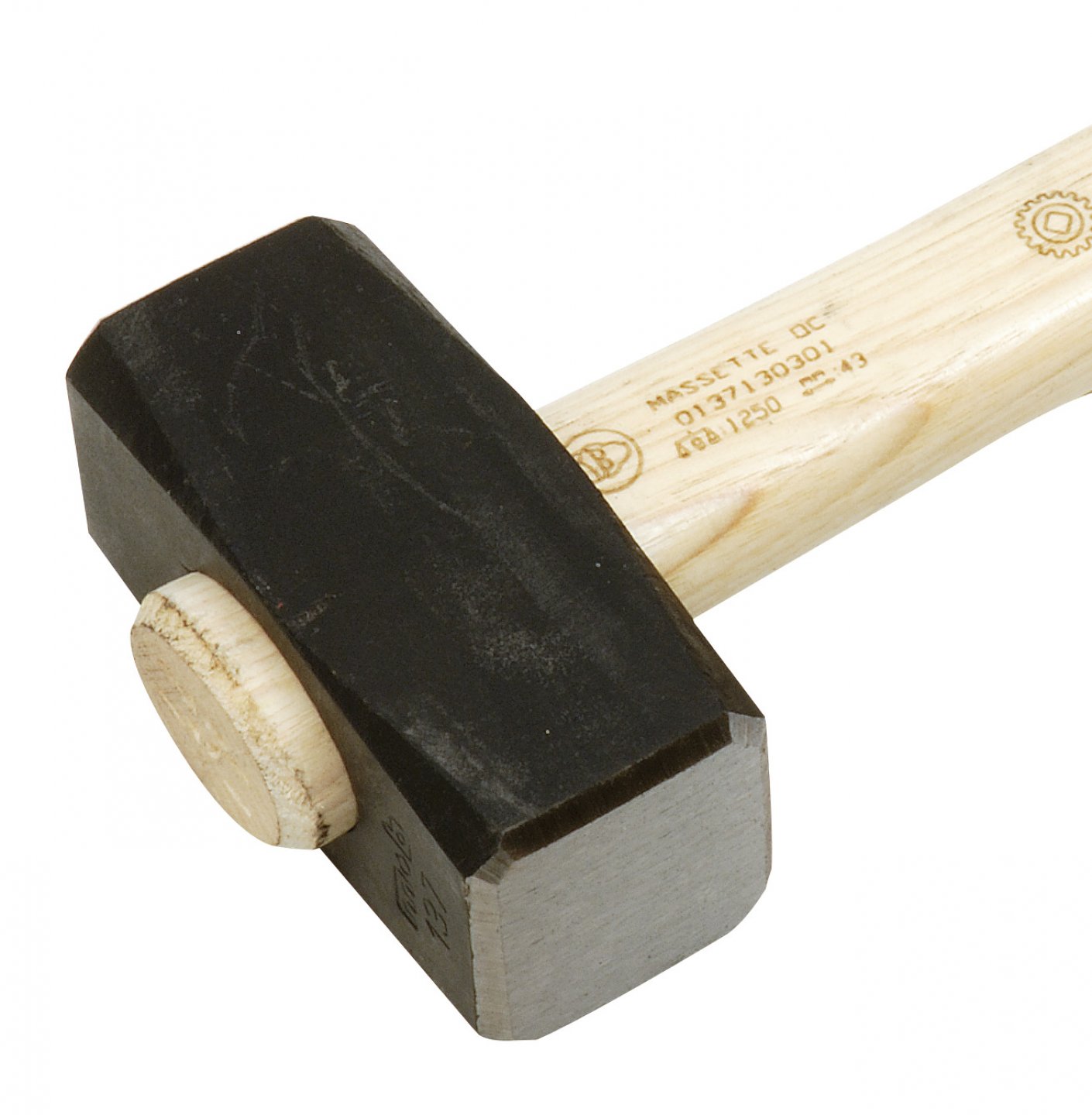

Club hammer bevelled edges - taper handling
Flat heads. Angles shot. Conical fitting, without corner. High carbon steel head C45E. Forged head, with induction heat treatment of working surfaces (54 HRC). Working ...
HD Images
- Flat heads.
- Angles shot.
- Conical fitting, without corner.
- High carbon steel head C45E.
- Forged head, with induction heat treatment of working surfaces (54 HRC).
- Working parts finely polished.
- Chamfers to avoid any risk of glare.
- Epoxy powder paint by electrostatic process, followed by baking.
- Wood handle.
- Wood essence: Ash, light and easy to re-assemble.
- Humidity at the fitting: 15%.
- Quality without a non-adherent knot, except sapwood, straight thread.
- PEFC label: from sustainably managed forests.
- Conical fitting by hydraulic machine.
- Laser marking ...

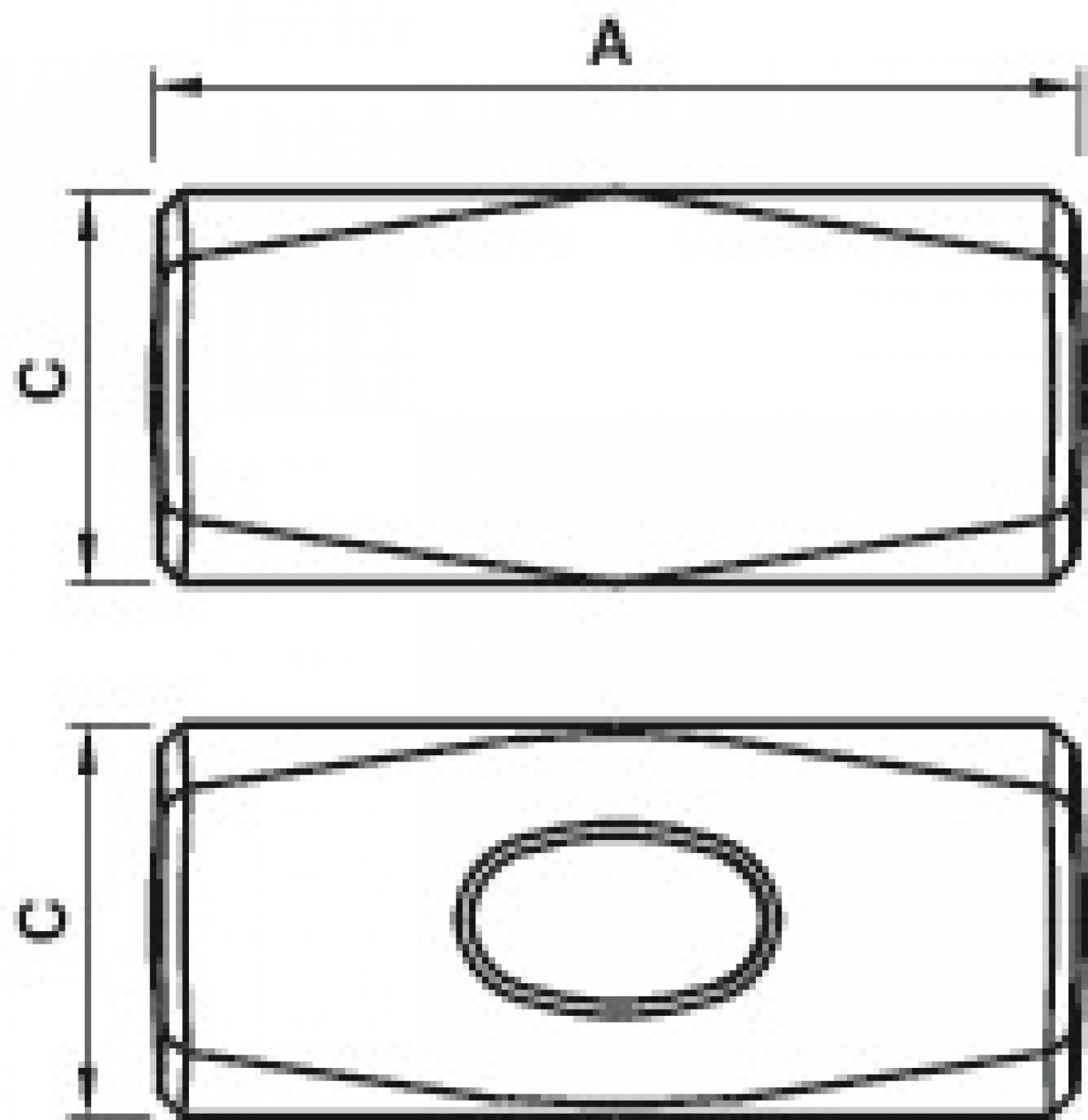

 g | A mm | C mm | G | Replacement handle |  | |||
|---|---|---|---|---|---|---|---|---|
| 1000 | 100 | 40 | 260 | G5 | 0137110201 | 6873 | 1 | 3303800136779 |
| 1250 | 110 | 43 | 260 | G5 | 0137130201 | 6873 | 1 | 3303800136854 |
| 1500 | 120 | 45 | 260 | G5 | 0137160201 | 6873 | 1 | 3303800136939 |
