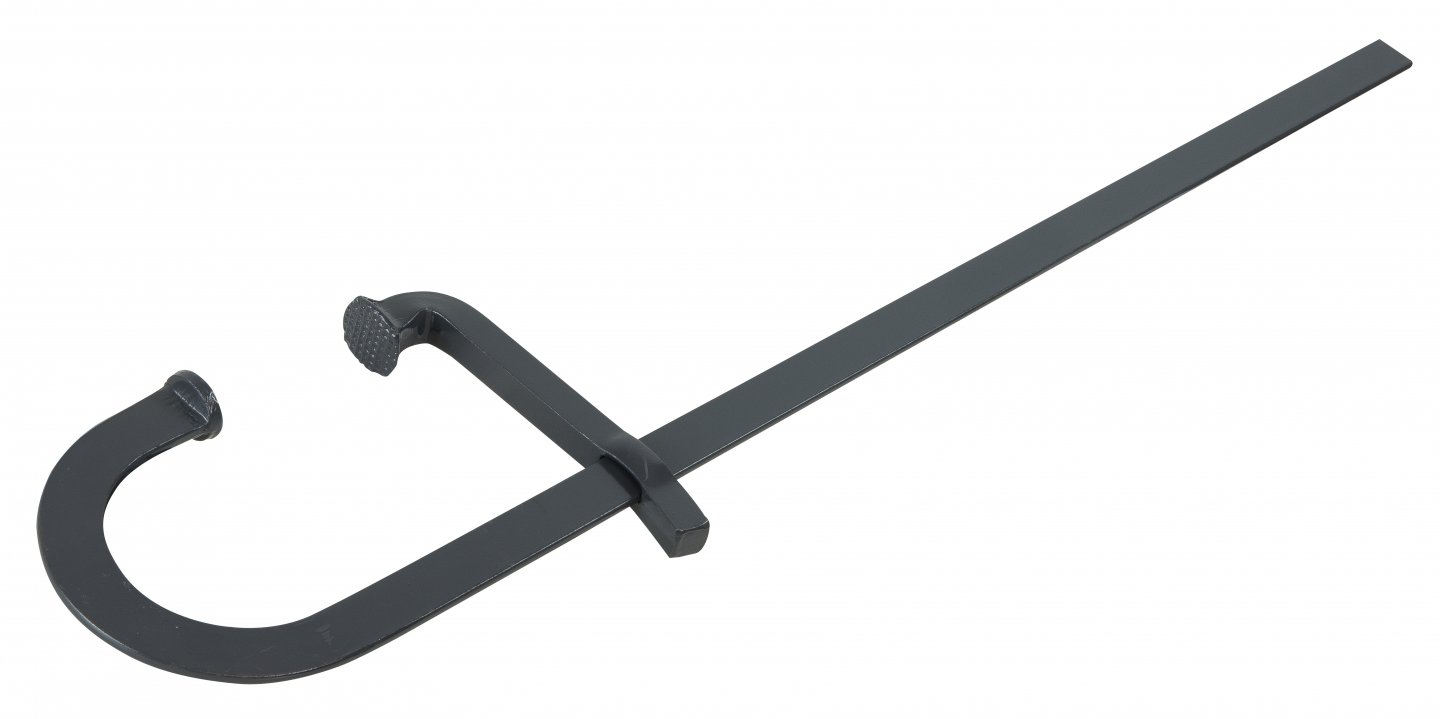

Shuttering clamp - 135
USE: Hold the formwork boards. C-clamps are ground or hammer removed, so they must be strong and durable, seamless and with strong sections. Fully forged, seamless. ...
HD Images
- USE: Hold the formwork boards.
- C-clamps are ground or hammer removed, so they must be strong and durable, seamless and with strong sections.
- Fully forged, seamless.
- Great impact resistance.
- Gray paint finish.
- The protrusion designates the depth, 135 mm.
- The different lengths make it possible to adapt to the width of the formwork: 400 to 1000 mm..

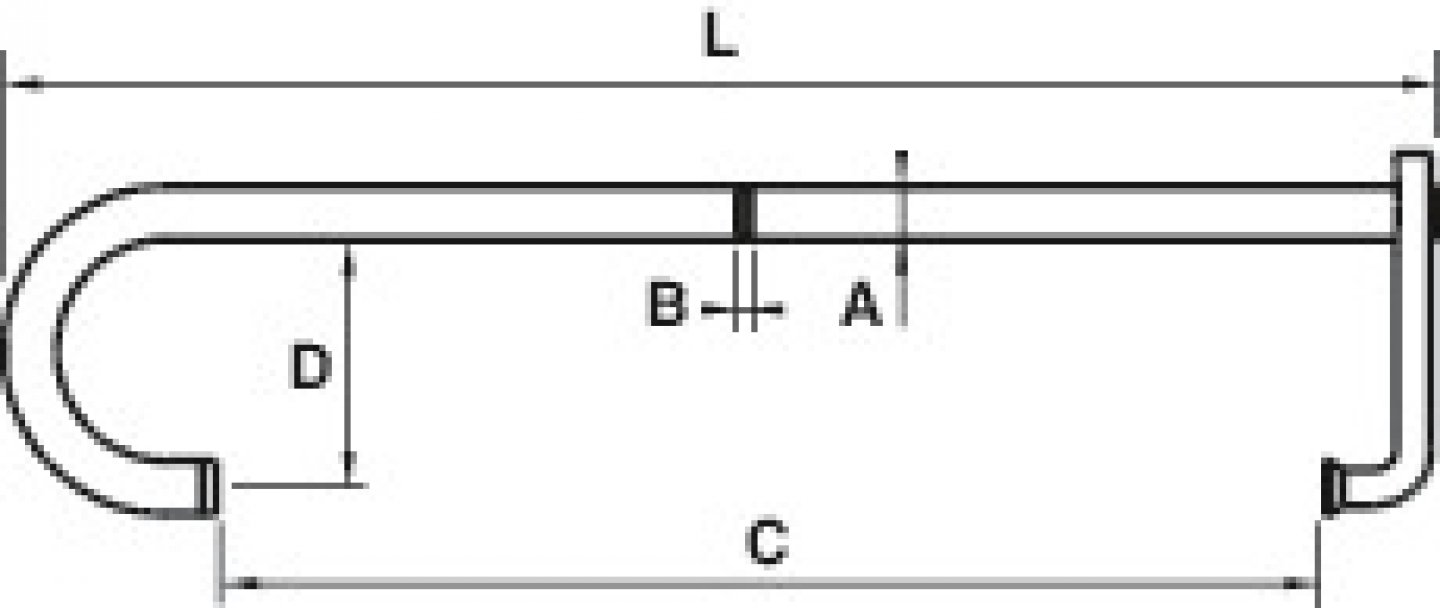

| C mm | D mm | L mm |  g | G |  | |||
|---|---|---|---|---|---|---|---|---|
| 600 | 135 | 800 | 30 x 7 | 2300 | G30 | 6398600010 | 2 | 3303806398010 |
| 800 | 135 | 1000 | 30 x 7 | 2600 | G30 | 6398800010 | 2 | 3303806398027 |
| 1000 | 135 | 1200 | 30 x 7 | 3000 | G30 | 6398990010 | 2 | 3303806398034 |
