‘redline’ mason’s pin

USE Round section. For small forms. FORGED VALET Hot-forged valet, for a 100% forged peg. Strike zone. Base section: 10.5 mm. TIP So-called barleycorn tip: angle ...
Learn more
‘redline’ mason’s pin
‘redline’ mason’s pin 02
‘redline’ mason’s pin 03
‘redline’ mason’s pin 04
‘redline’ mason’s pin 05
‘redline’ mason’s pin 06
‘redline’ mason’s pin 07
‘redline’ mason’s pin
‘redline’ mason’s pin 02
‘redline’ mason’s pin 03
‘redline’ mason’s pin 04
‘redline’ mason’s pin 05
‘redline’ mason’s pin 06
‘redline’ mason’s pin 07
HD Images
  • USE Round section.
  • For small forms.
  • FORGED VALET Hot-forged valet, for a 100% forged peg.
  • Strike zone.
  • Base section: 10.5 mm.
  • TIP So-called barleycorn tip: angle of attack at 35°, angle of penetration at 11° .
  • Hardening localized over 80 mm then tempering operation for high hardness of the working parts (50-56 HrC).
  • Excellent attack even in difficult terrain and great longevity.
  • STEEL QUALITY.
  • High Carbon Steel: C45 for the jack, C55 for the tip.
  • The forging operation makes it possible to obtain an excellent fibering of the steel for increased resistance.
  • Point sharpness, very good performance and excellent life.
  • QUALITY OF FINISH Textured paint, epoxy, electrostatically applied and baked.
  • Evenness of the paint surface.
  • Surface impact and abrasion resistance.
  • Made in Europe in our factories..

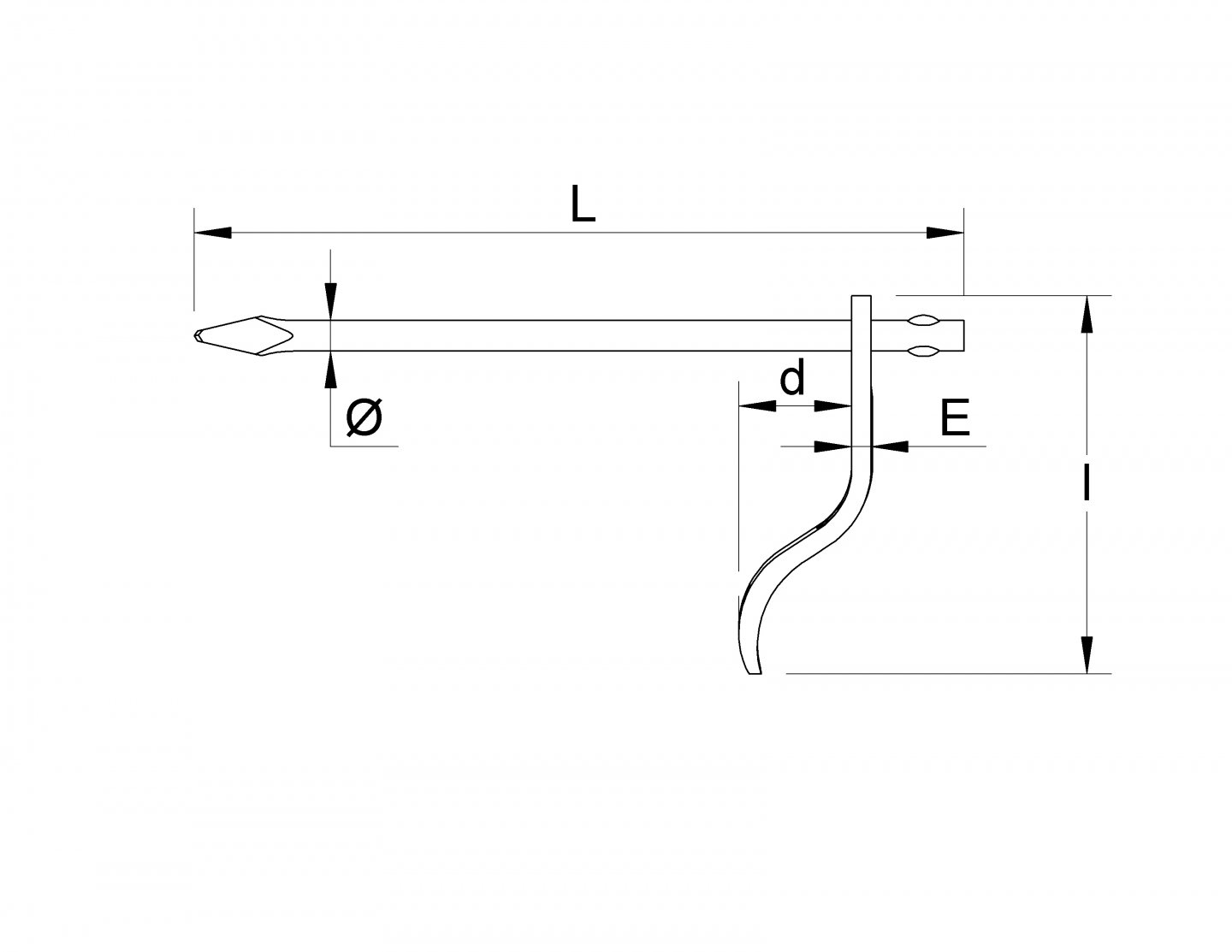

L mmØ mmD mmE mm gG
200 10 35 7 120 249 G30 7160200001 10 3303807160029
250 10 35 7 120 280 G30 7160250001 10 3303807160043
300 10 35 7 120 311 G30 7160300001 10 3303807160067
