‘redline’ mason’s pin
USE For small forms. 10 mm square section, ideal for holding rulers or small forms. FORGED VALET Hot-forged valet, for a 100% forged peg. Strike zone. Base section: ...
HD Images
- USE For small forms.
- 10 mm square section, ideal for holding rulers or small forms.
- FORGED VALET Hot-forged valet, for a 100% forged peg.
- Strike zone.
- Base section: 10.5 mm.
- TIP So-called barleycorn tip: 35° angle of attack, 11° penetration angle.
- Hardening localized over 80 mm then tempering operation for high hardness of the working parts (50-56 HrC).
- Excellent attack even in difficult terrain and great longevity.
- QUALITY OF STEEL Steel with a high carbon content: C45 for the jack, C55 for the tip.
- The forging operation makes it possible to obtain an excellent fibering of the steel for increased resistance.
- Point sharpness, very good performance and excellent life.
- QUALITY OF FINISH Textured paint, epoxy, electrostatically applied and baked.
- Evenness of the paint surface.
- Surface impact and abrasion resistance.
- Made in Europe in our factories.

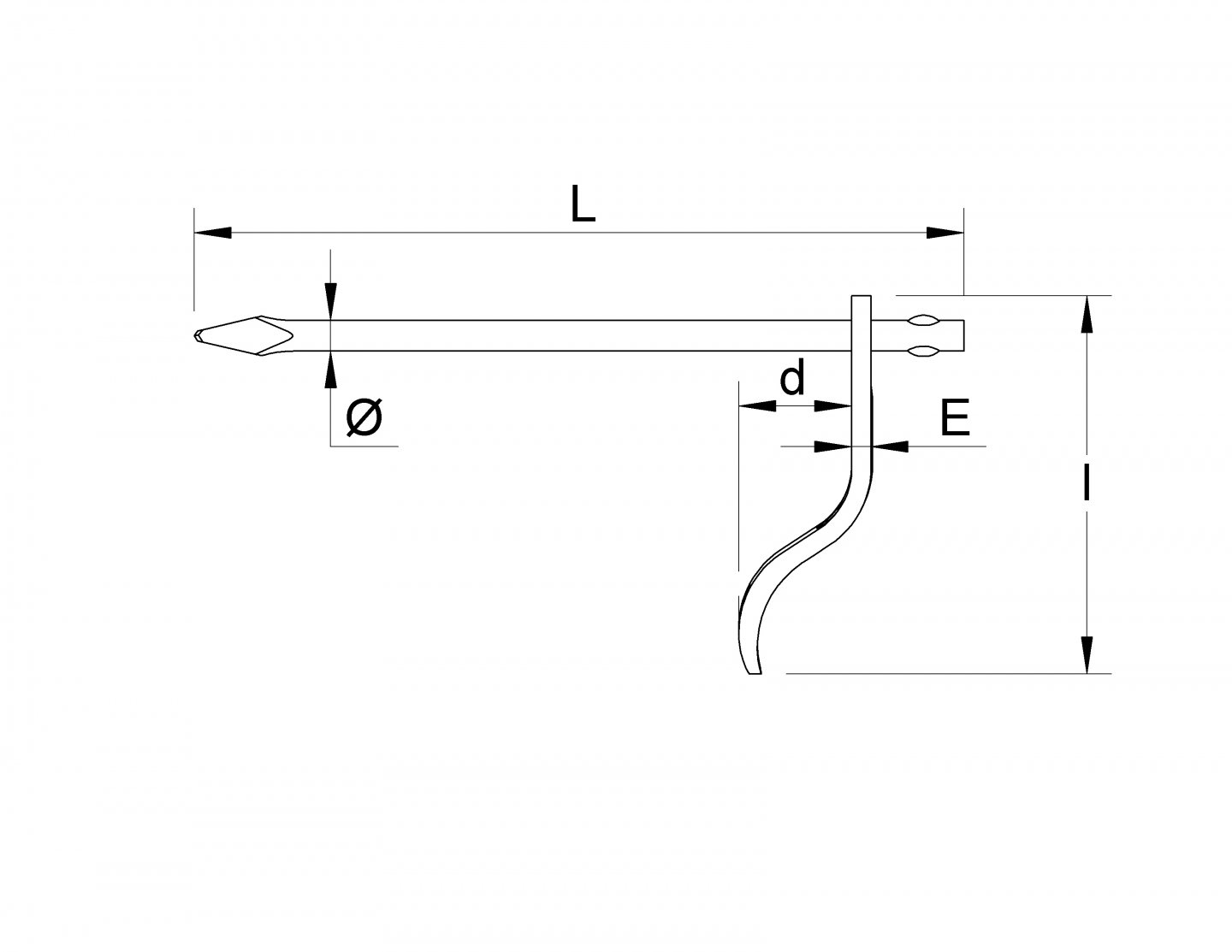

| L mm | Ø mm | d mm | E mm | L mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 250 | 10 | 35 | 7 | 120 | 322 | G30 | 7162250001 | 10 | 3303807162047 |
| 300 | 10 | 35 | 7 | 120 | 361 | G30 | 7162300001 | 10 | 3303807162061 |
