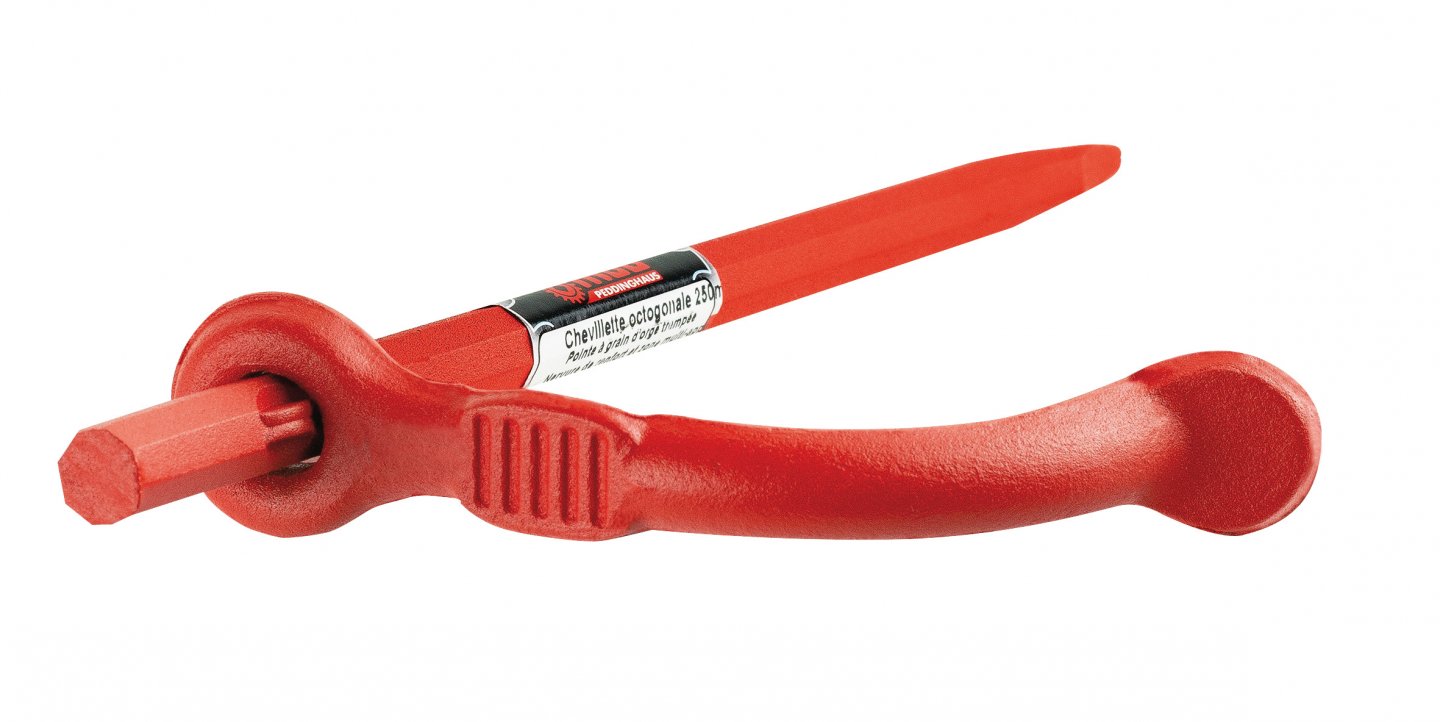

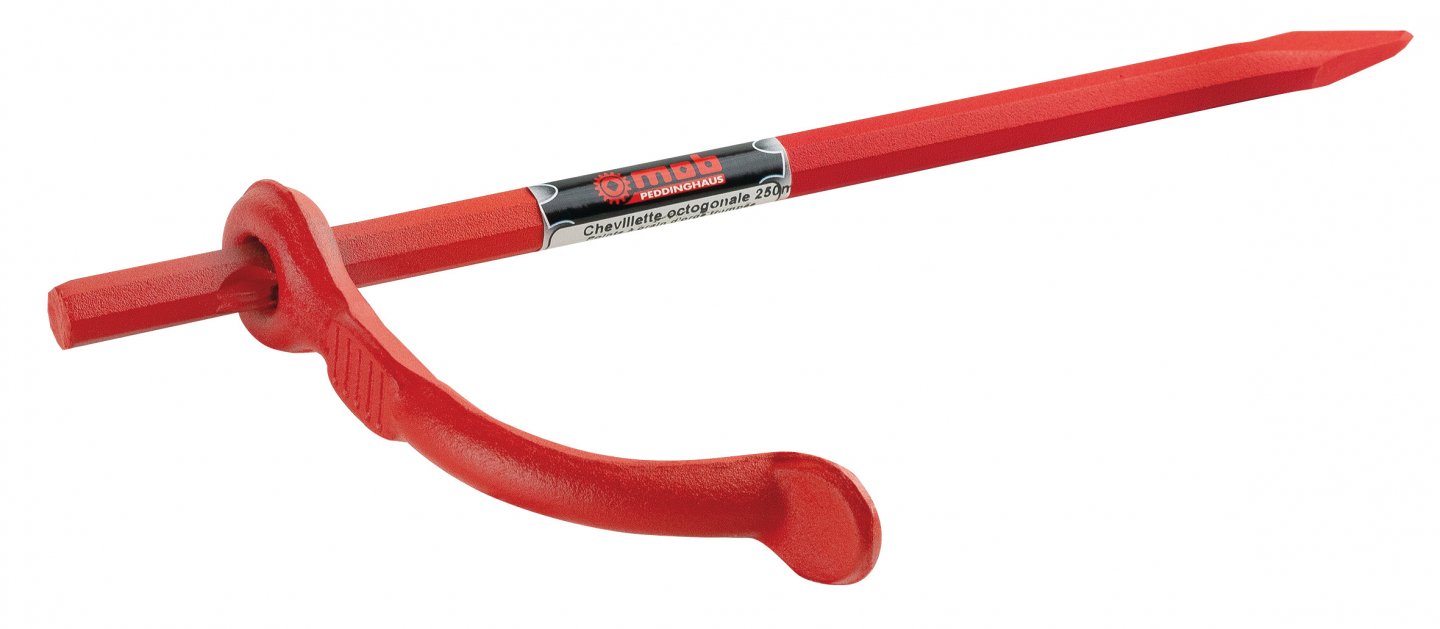

‘redline’ mason’s pin
Octagonal section. Forged and ribbed valet. Barleycorn tip. For small forms. Ribbed valet for longer life, superior clearance, rounded multi-grip foot. Barleycorn ...
HD Images
- Octagonal section.
- Forged and ribbed valet.
- Barleycorn tip.
- For small forms.
- Ribbed valet for longer life, superior clearance, rounded multi-grip foot.
- Barleycorn tip: angle of attack at 35°, angle of penetration at 11°.
- Localized hardening then tempering operation for high hardness of the working parts (50-56 HrC).
- Excellent attack even in difficult terrain and great longevity.
- High Carbon Steel: C45 for the jack, forged C55 for the tip.
- Point sharpness, very good performance and excellent life..

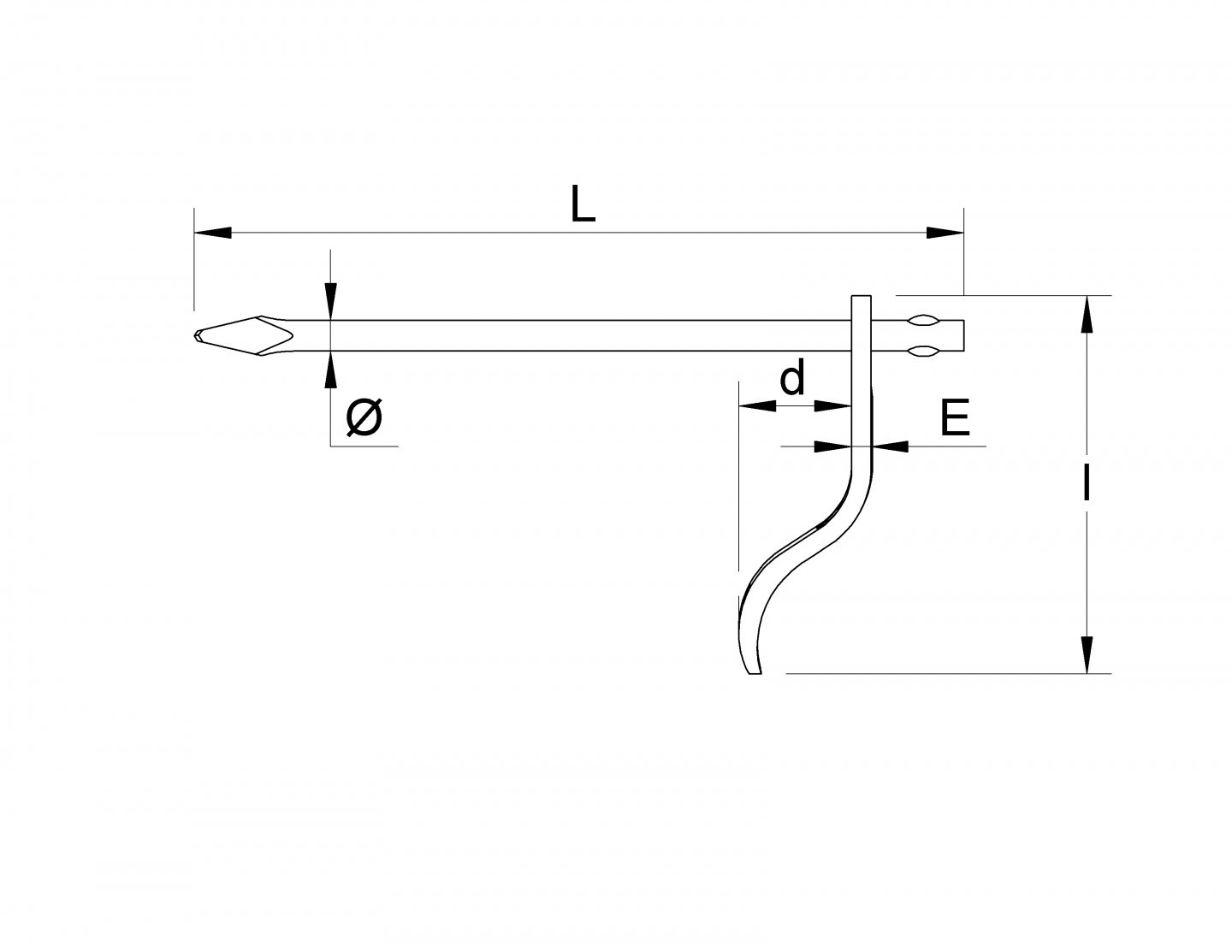

| L mm | Ø mm | d mm | E mm | L mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | 10 | 35 | 7 | 120 | 255 | G30 | 7164200001 | 10 | 3303807164027 |
| 250 | 10 | 35 | 7 | 120 | 288 | G30 | 7164250001 | 10 | 3303807164034 |
| 300 | 10 | 35 | 7 | 120 | 320 | G30 | 7164300001 | 10 | 3303807164058 |
