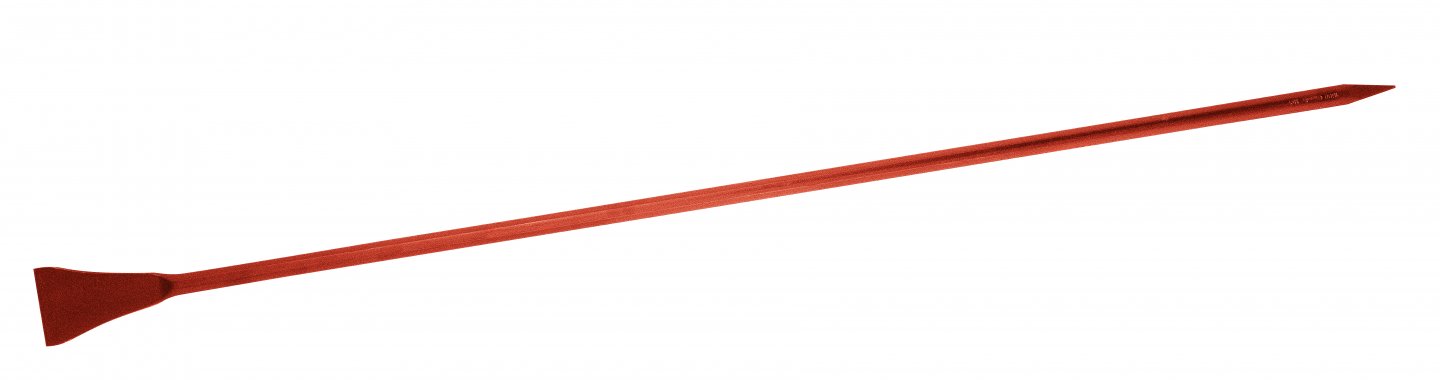

Miner's bar
USE: to leverage, move heavy loads, remove stones or blocks, dig trenches, make holes, for example stakes. 1 tip side to dig and 1 side flame to pry or cut. Also ...
HD Images
- USE: to leverage, move heavy loads, remove stones or blocks, dig trenches, make holes, for example stakes.
- 1 tip side to dig and 1 side flame to pry or cut.
- Also available with 1 pallet side to slice or dislocate.
- The heel clamps allow a lever with support on the ground, to stall or move loads.
- CHARACTERISTICS: hexagonal section for better grip.
- It is advisable to use gloves.
- High carbon steel C55.
- Forged and tempered ends, for a longer life (hardness 55 HRC +/- 3).
- Diamond tip for better penetration.
- Epoxy red paint baked.
- Lifting capacity: 4 tons per bar.
- It is possible to use several bars to increase the capacity..
| L m x large mm | Section mm |  kg | G |  | ||
|---|---|---|---|---|---|---|
| 1,20 m x 120mm | 16 | 1,9 | G30 | 0151120001 | 1 | 3303809500748 |
| 1,20 m x 135mm | 20 | 3 | G30 | 0151130001 | 1 | 3303809500755 |
| 1,50 m x 135mm | 20 | 4 | G30 | 0151150001 | 1 | 3303809552082 |
| 1,60 m x 150mm | 25 | 6,3 | G30 | 0151160001 | 1 | 3303809500762 |
| 1.75 m x 150mm | 25 | 7,2 | G30 | 0151180001 | 1 | 3303809500779 |
