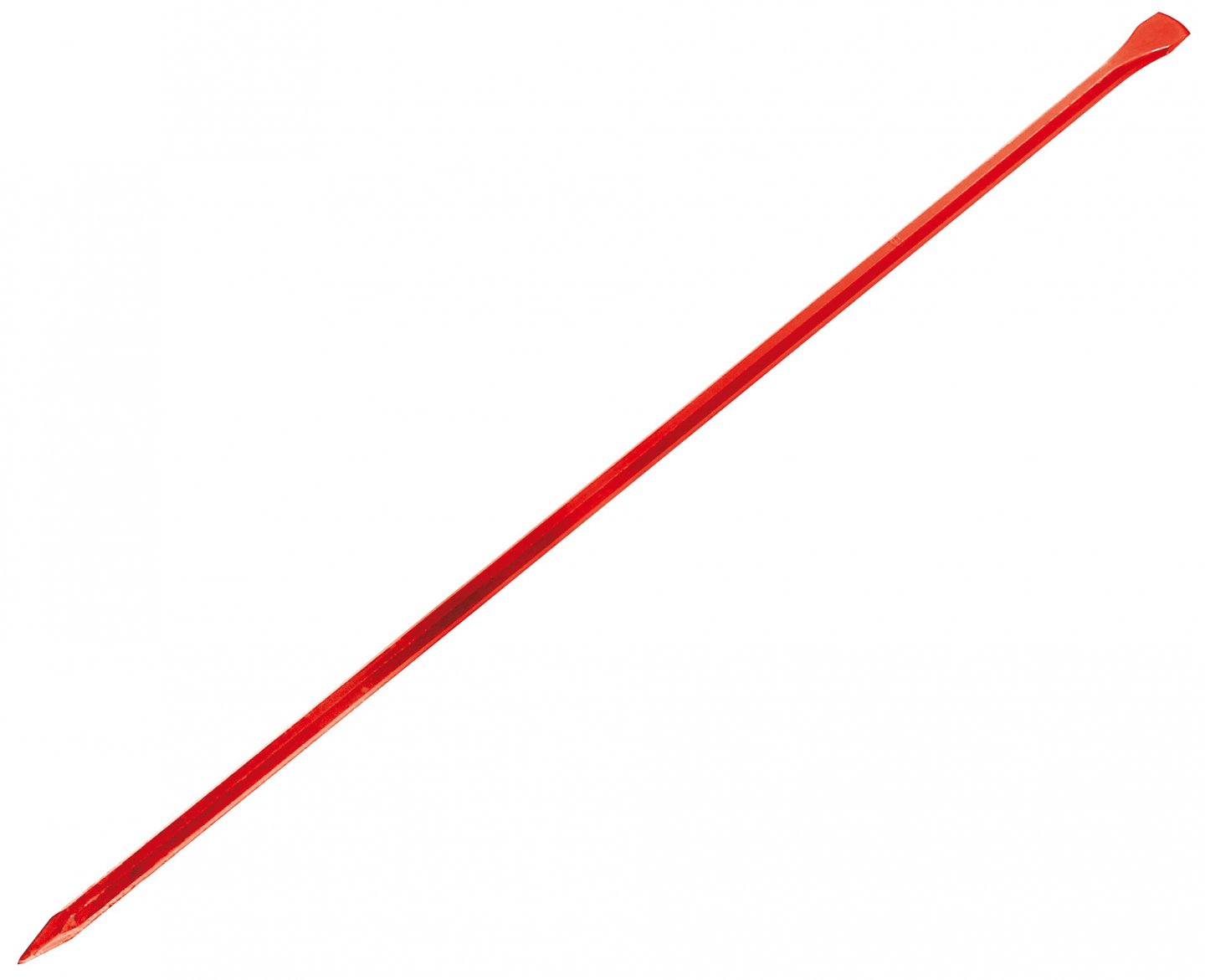

Miner's bar
USE: to leverage, move heavy loads, remove stones or blocks, dig trenches, make holes, for example stakes. 1 tip side to dig and 1 side flame to pry or cut. Also ...
HD Images
- USE: to leverage, move heavy loads, remove stones or blocks, dig trenches, make holes, for example stakes.
- 1 tip side to dig and 1 side flame to pry or cut.
- Also available with 1 pallet side to slice or dislocate.
- The heel clamps allow a lever with support on the ground, to stall or move loads.
- CHARACTERISTICS: hexagonal section for better grip.
- It is advisable to use gloves.
- High carbon steel C55.
- Forged and tempered ends, for a longer life (hardness 55 HRC +/- 3).
- Diamond tip for better penetration.
- Epoxy red paint baked.
- Lifting capacity: 4 tons per bar.
- It is possible to use several bars to increase the capacity..
| L m | Section mm |  kg | G |  | |||
|---|---|---|---|---|---|---|---|
| 1 | 25 | 58 | 3 | G30 | 0152100001 | 1 | 3303800152014 |
| 1,25 | 25 | 58 | 3,85 | G30 | 0152120001 | 1 | 3303800152021 |
| 1,50 | 25 | 58 | 5,70 | G30 | 0152150001 | 1 | 3303800152038 |
| 1,75 | 25 | 58 | 8,70 | G30 | 0152170001 | 1 | 3303800152052 |
| 2 | 25 | 58 | 10 | G30 | 0152200001 | 1 | 3303800152069 |
