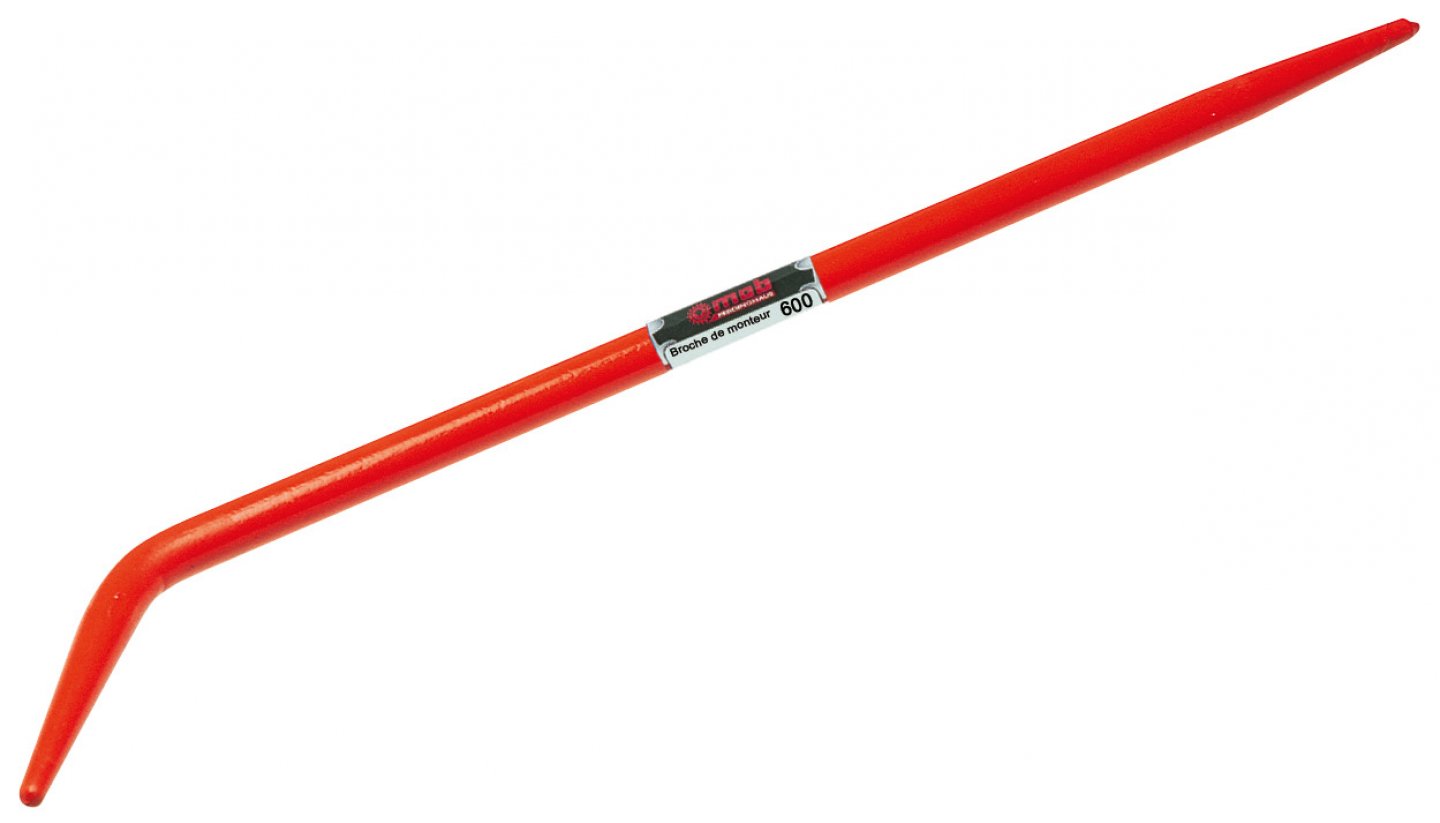

Offset centering pin
The tips allow to align the holes for mounting structures. 100C6 steel or equivalent. Fully painted, baked epoxy paint.
HD Images
- The tips allow to align the holes for mounting structures.
- 100C6 steel or equivalent.
- Fully painted, baked epoxy paint..

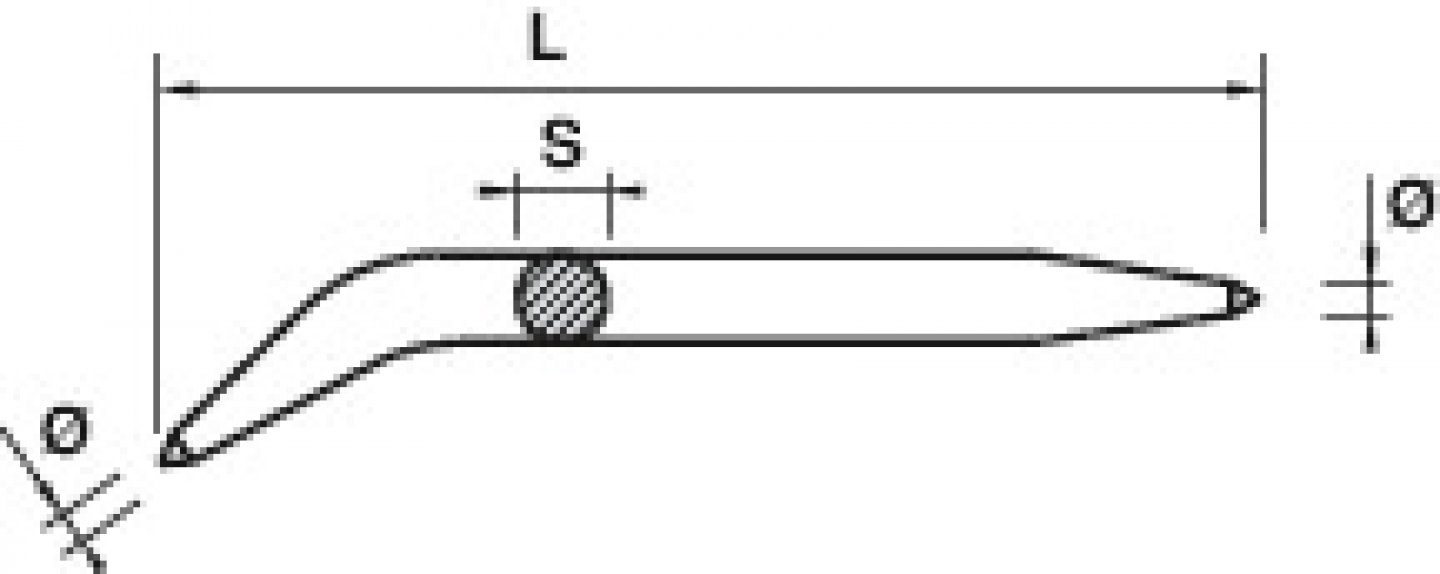

| L mm | Section mm | Ø mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|
| 420 | 13 | 6 | 400 | E | 7230000001 | 1 | 3303807230012 |
