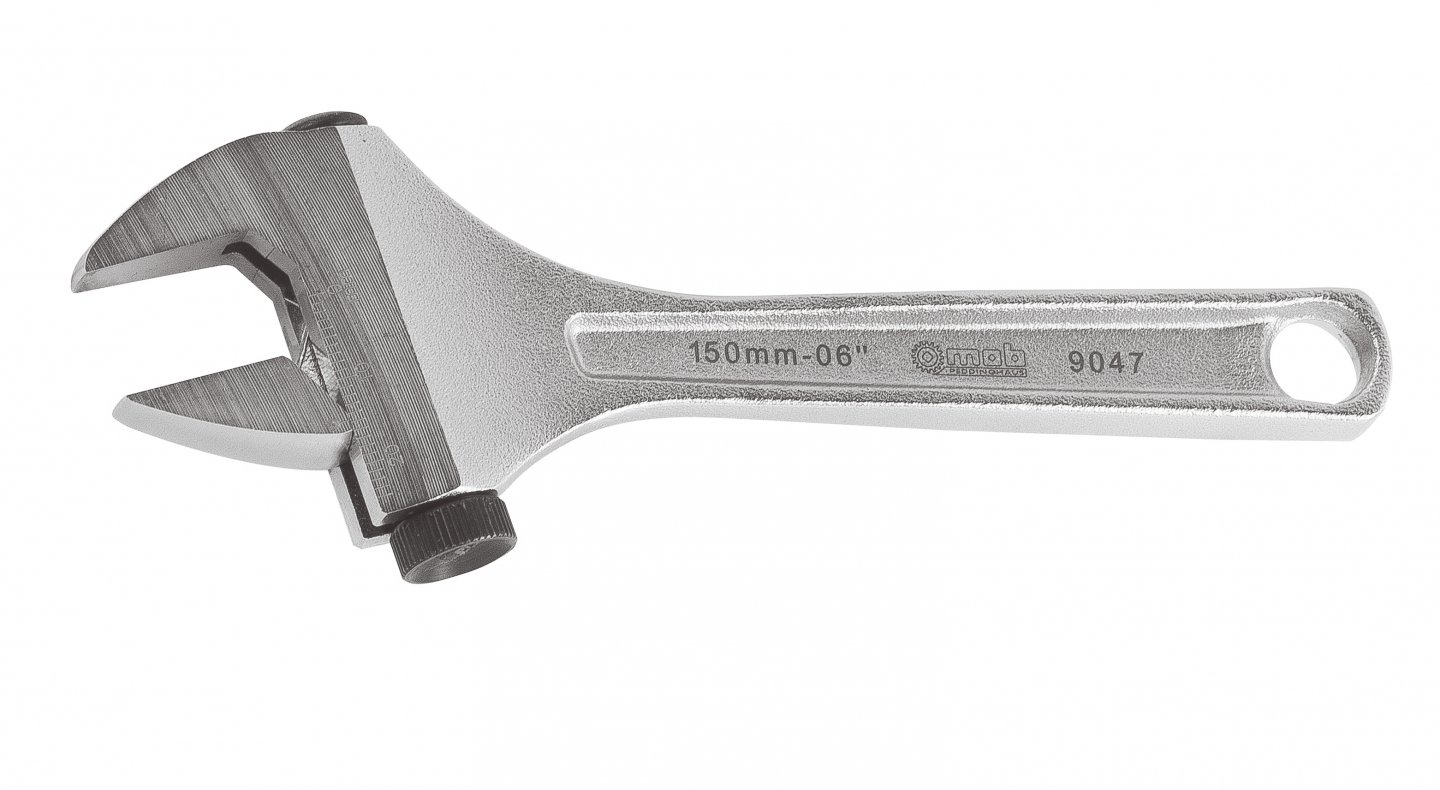

Adjustable spanner, spanish pattern
Adjustment by side wheel. Steel resistance: Chrome-vanadium steel, steel mechanical keys. Surface finish: Chrome. Hanging hole.
HD Images
- Adjustment by side wheel.
- Steel resistance: Chrome-vanadium steel, steel mechanical keys.
- Surface finish: Chrome.
- Hanging hole..

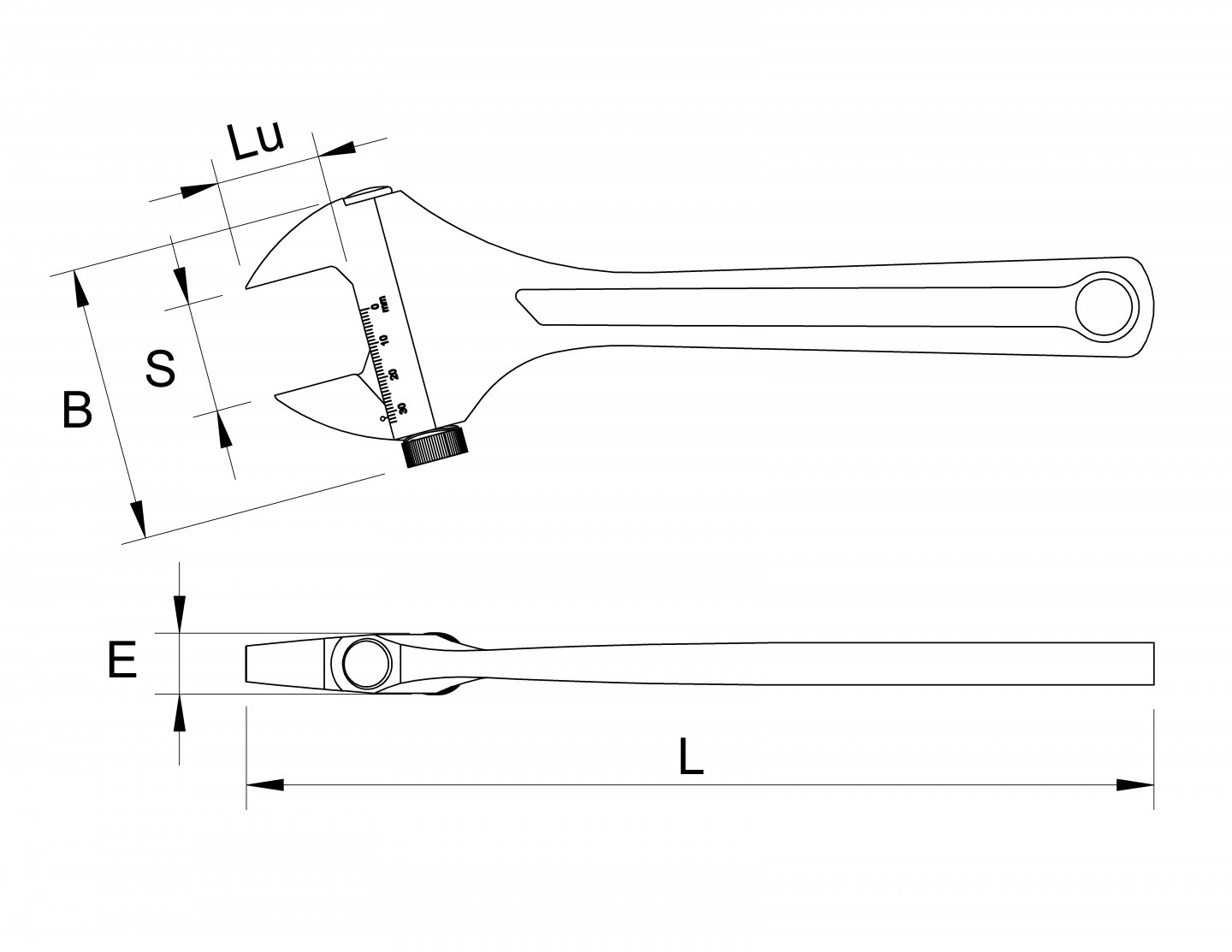

| L mm '' | B mm | Lu mm | S mm | E mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 150-6'' | 54 | 21 | 24 | 13.5 | 140 | E | 9047150001 | 1 | 3303800008472 |
| 200-8'' | 66 | 25 | 29 | 13,5 | 250 | E | 9047200001 | 1 | 3303800008489 |
| 250-10'' | 80 | 30 | 32 | 17 | 490 | E | 9047250001 | 1 | 3303800008496 |
| 300-12'' | 95 | 37.5 | 39 | 20 | 775 | E | 9047300001 | 1 | 3303800008502 |
| 400-16'' | 120 | 47 | 51 | 26 | 1525 | E | 9047370001 | 1 | 3303800008519 |
| 500-20'' | 144 | 56 | 63 | 29 | 2500 | E | 9047500001 | 1 | 3303800008526 |
