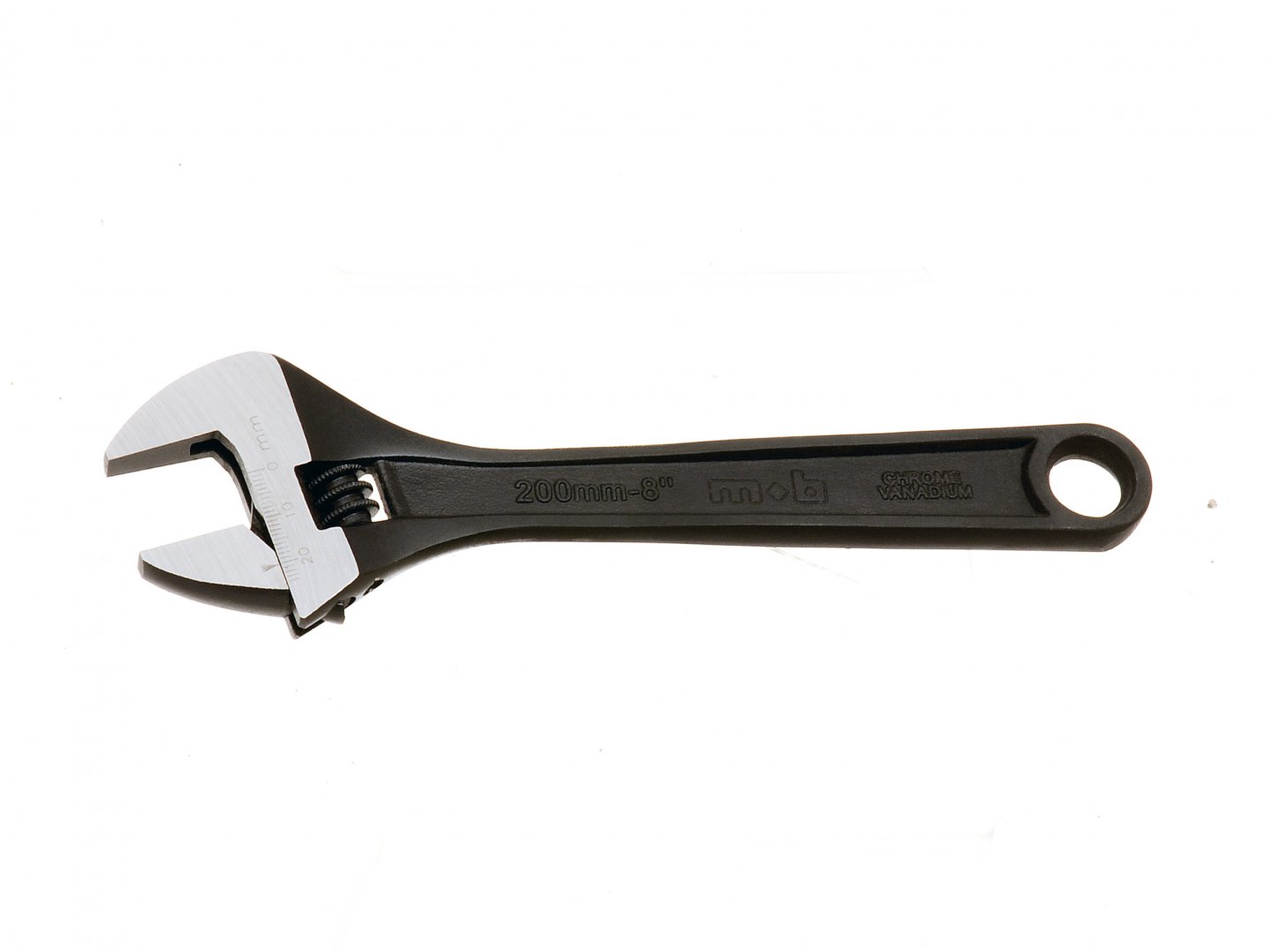

Adjustable spanners, phosphated
RESISTANCE: Chrome-vanadium steel, the best material for wrenches. FINISH: Phosphated.
HD Images
- RESISTANCE: Chrome-vanadium steel, the best material for wrenches.
- FINISH: Phosphated..

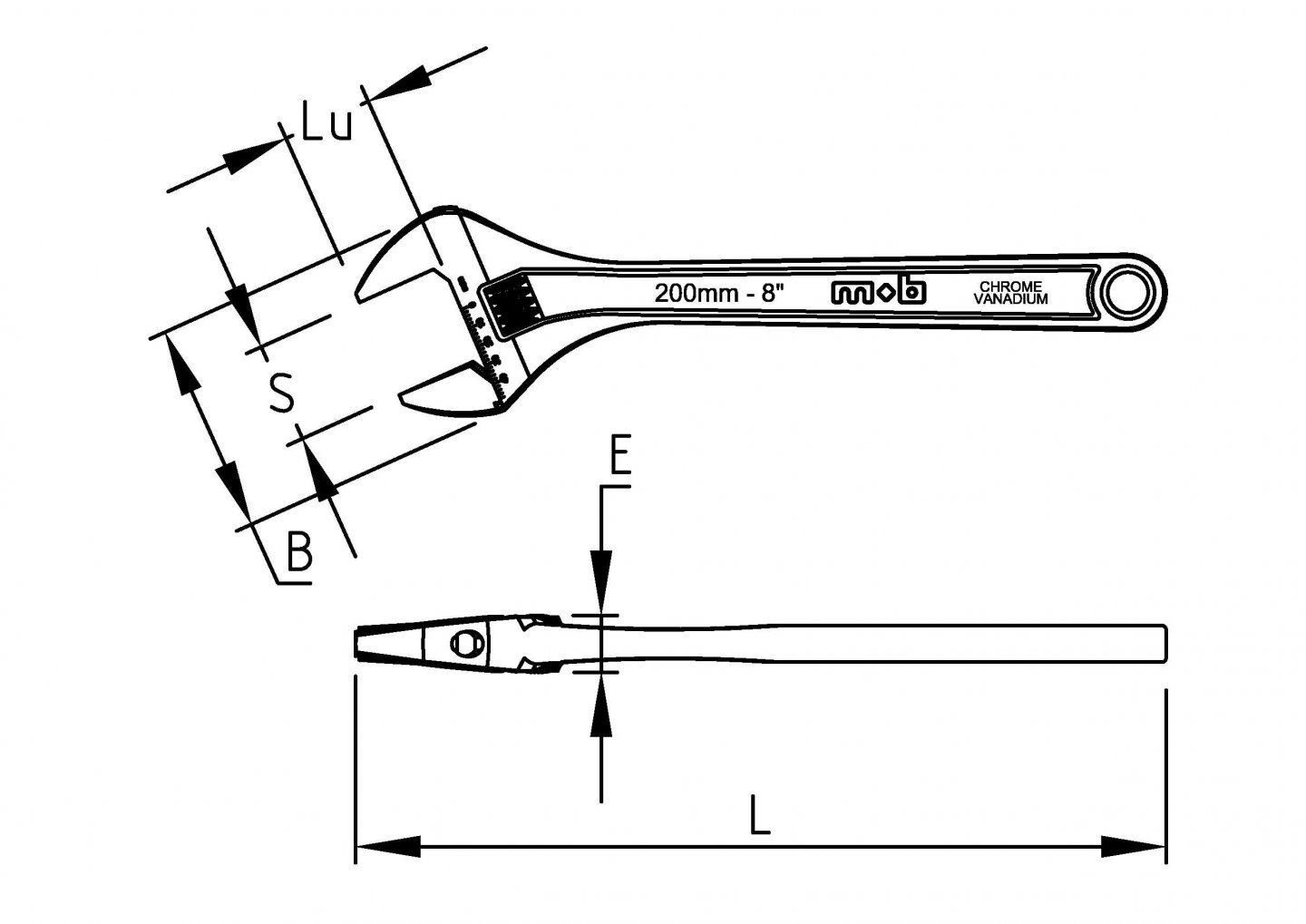

| L mm '' | B mm | Lu mm | S mm | E mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 150-6'' | 44 | 20 | 19 | 11 | 140 | E | 9044150101 | 1 | 3303809006677 |
| 200-8'' | 56 | 25 | 24 | 12,5 | 250 | E | 9044200101 | 1 | 3303809006684 |
| 250-10'' | 68,5 | 30 | 29 | 15 | 420 | E | 9044250101 | 1 | 3303809006691 |
| 300-12'' | 81,5 | 36 | 34 | 18 | 710 | E | 9044300101 | 1 | 3303809006714 |
| 375-15'' | 102 | 45 | 45 | 23 | 1320 | E | 9044370101 | 1 | 3303809006721 |
