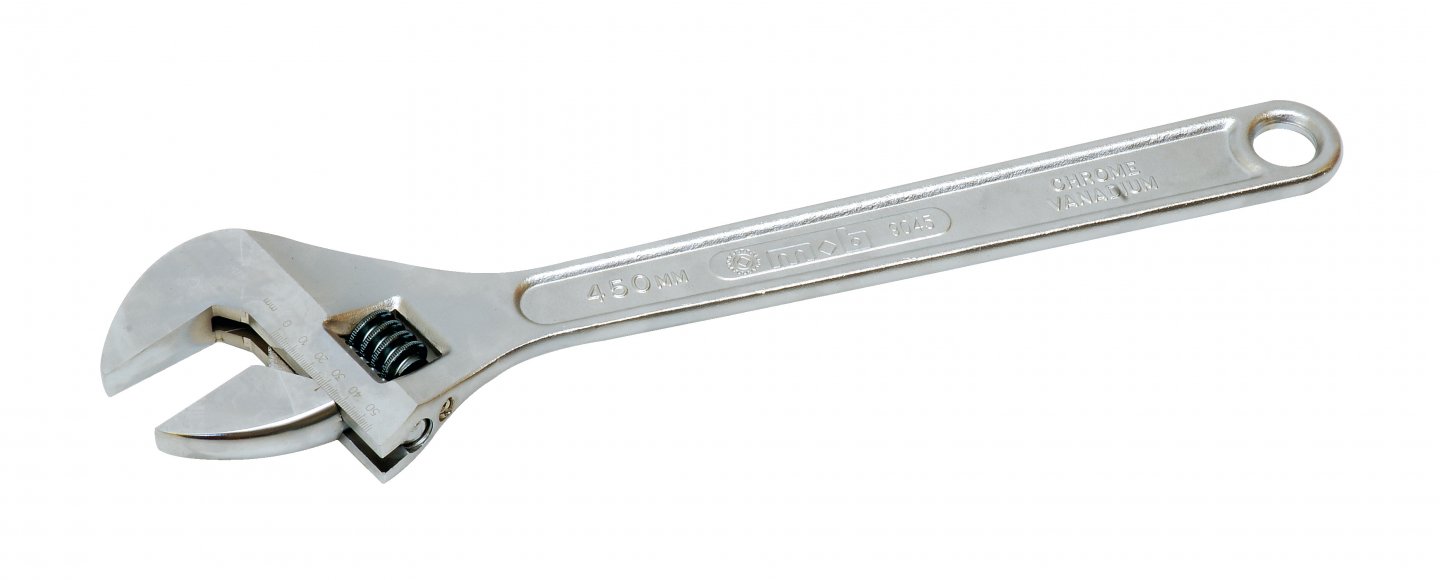

Chromed adjustable wrenches
RESISTANCE: Chrome-vanadium steel, the best material for mechanical wrenches. FINISH: Chromed surface. Graduated in millimeters for a precise work and a higher visibility. ...
HD Images
- RESISTANCE: Chrome-vanadium steel, the best material for mechanical wrenches.
- FINISH: Chromed surface.
- Graduated in millimeters for a precise work and a higher visibility.
- Hanging hole.
- Inclined jaws especially designed to work horizontally.
- ACCESSIBILITY: Compact head for a high accessibility..

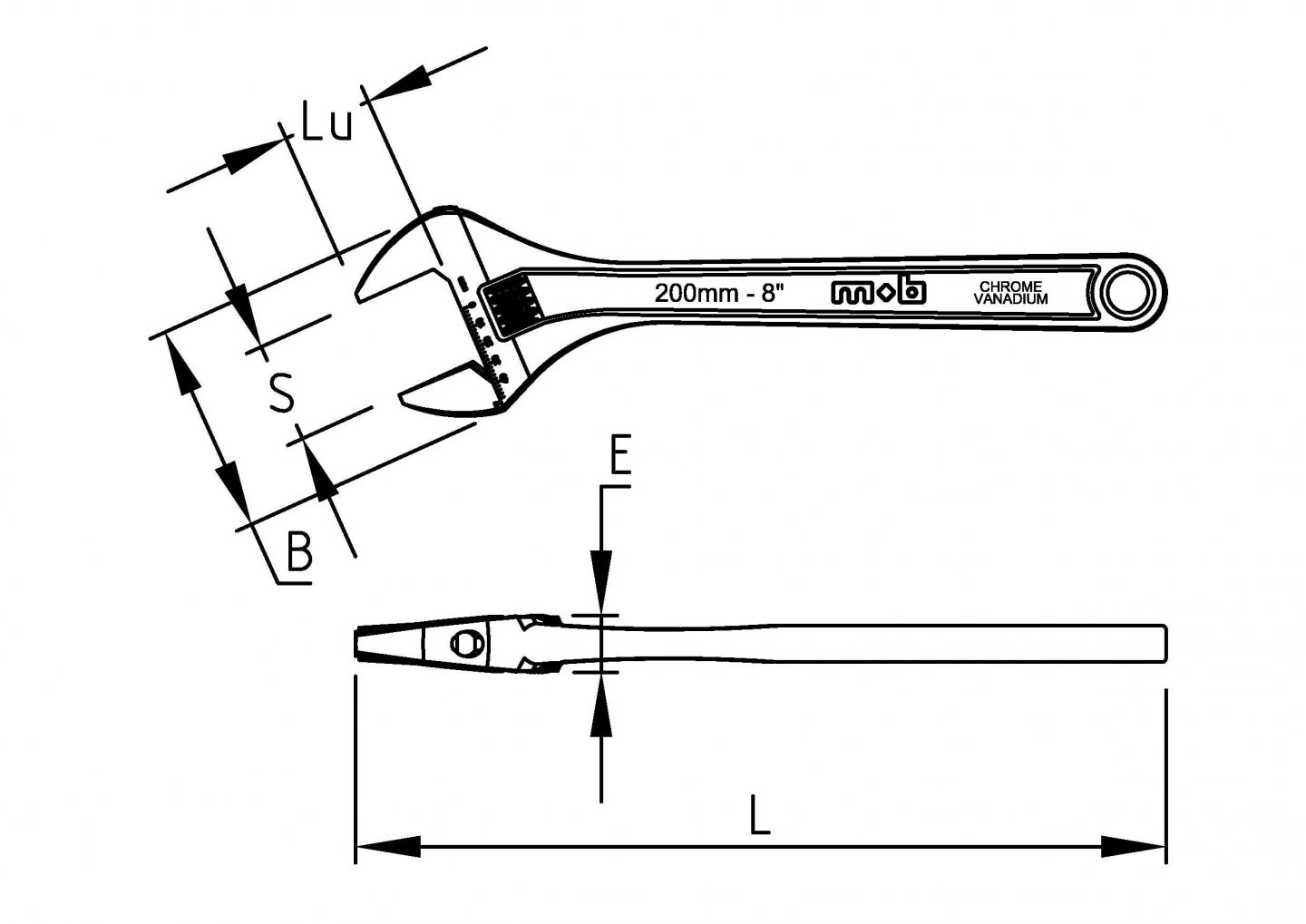

| L mm '' | B mm | Lu mm | S mm | E mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 100-4'' | 40 | 15 | 18 | 10 | 60 | E | 9046100001 | 1 | 3303809006646 |
| 150-6'' | 44 | 20 | 19 | 11 | 140 | E | 9044150001 | 1 | 3303809007964 |
| 200-8'' | 56 | 25 | 24 | 12,5 | 250 | E | 9044200001 | 1 | 3303809007971 |
| 250-10'' | 68,5 | 30 | 29 | 15 | 420 | E | 9044250001 | 1 | 3303809007988 |
| 300-12'' | 81,5 | 36 | 34 | 18 | 710 | E | 9044300001 | 1 | 3303809008640 |
| 375-15'' | 102 | 45 | 45 | 23 | 1320 | E | 9044370001 | 1 | 3303809008657 |
| 450-18'' | 122,5 | 53 | 57,5 | 25 | 1920 | E | 9045450001 | 1 | 3303809045058 |
| 600-24'' | 147 | 64 | 70 | 31 | 3350 | E | 9046600001 | 1 | 3303809006660 |
