Ratcheting combination spanner

RESISTANCE: chrome-vanadium steel, the best material for wrenches. PERFORMANCE: quick and reversible direction shift: optimized productivity. 5° increments (6° ...
Learn more
Ratcheting combination spanner
Ratcheting combination spanner 02
Ratcheting combination spanner
Ratcheting combination spanner 02
HD Images
  • RESISTANCE: chrome-vanadium steel, the best material for wrenches.
  • PERFORMANCE: quick and reversible direction shift: optimized productivity.
  • 5° increments (6° - dimensions 8 and 9 mm).
  • SAFETY: closed ratchet system - not possible to damage the inner teeth from the outside.
  • ACCESSIBILITY: 15° angled head for easy handling and working in inaccessible places.
  • Compact.
  • COMFORT: chromed and satin polished finishing.
  • CONVENIENT: soft curves and cold forged markings for a tactile comfort and an easy cleaning.
  • One fork and one ratchet side..

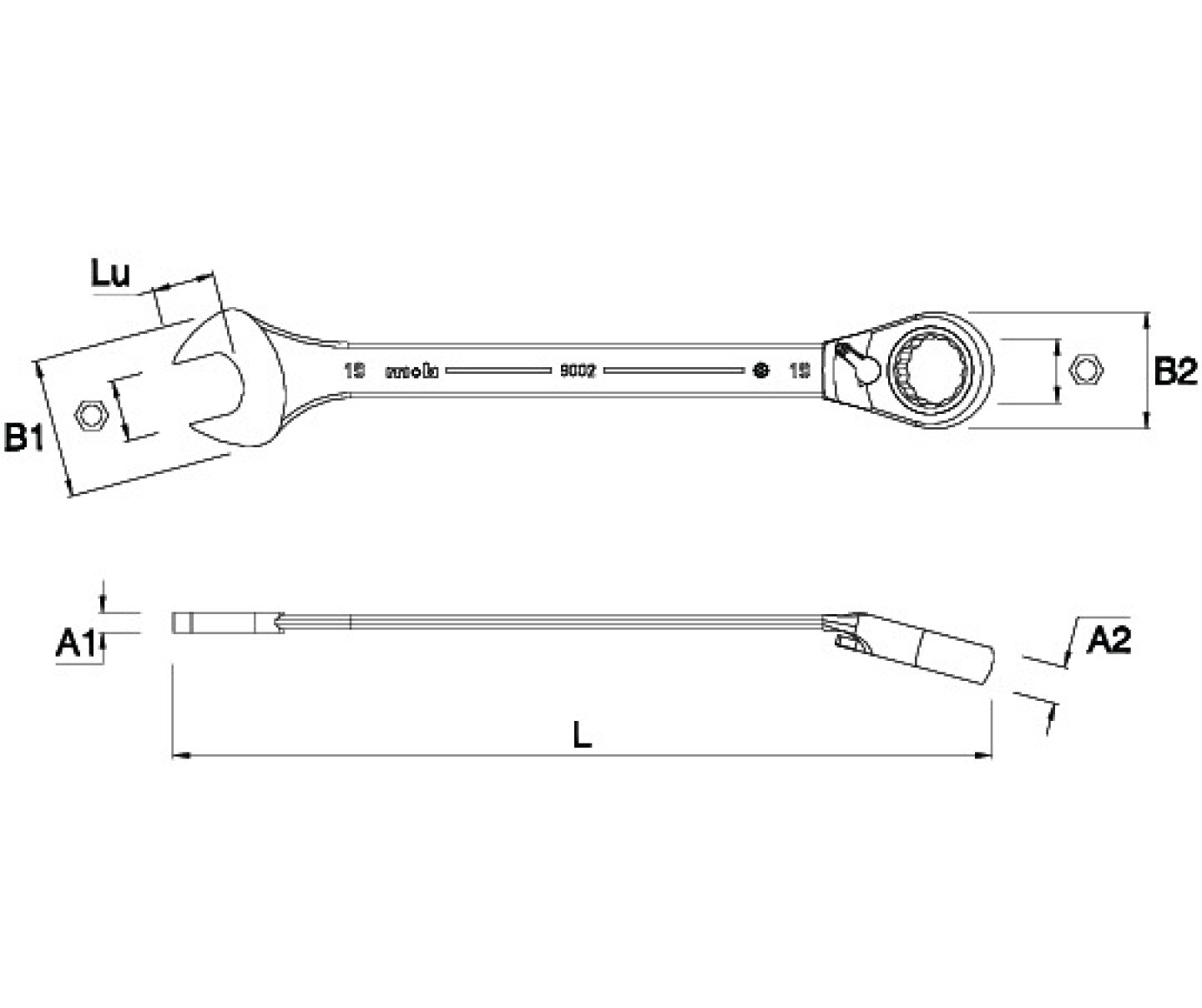

Dim mmL mmB1 mmB2 mmA1 mmA2 mmLu mm gG
8 140 18 18 5 7 9,5 35 E 9002080001 1 3303809002082
9 149 19 19 5 7 10,5 40 E 9002090001 1 3303809002099
10 157 23 21 6 8 11,5 55 E 9002100001 1 3303809002105
11 165 25 23 6,5 8 12,5 70 E 9002110001 1 3303809021106
12 172 27 24 7 9 13 80 E 9002120001 1 3303809002129
13 183 28 26 7 9 14 95 E 9002130001 1 3303809002136
14 190 29 28 7 9 15 110 E 9002140001 1 3303809002143
15 198 33 30 8 10 15,5 140 E 9002150001 1 3303809002150
16 206 33 30 8 10 16,5 160 E 9002160001 1 3303809002167
17 225 38 34 9 11 17,5 195 E 9002170001 1 3303809002174
18 235 39 35 9 11 18 210 E 9002180001 1 3303809002181
19 245 42 36 10 12 20 245 E 9002190001 1 3303809002198
21 290 47 39 10 13 22 355 E 9002210001 1 3303809004932
22 290 47 39 10 13 23 345 E 9002220001 1 3303809004949
24 333 52 45,5 10 14,5 25,5 530 E 9002240001 1 3303809004956
27 333 57 51 10 14,5 30 610 E 9002270001 1 3303809014016
30 425 66 65 11,5 18 33 1125 E 9002300001 1 3303809014023
32 425 66 65 11,5 18 33 1105 E 9002320001 1 3303809014030
