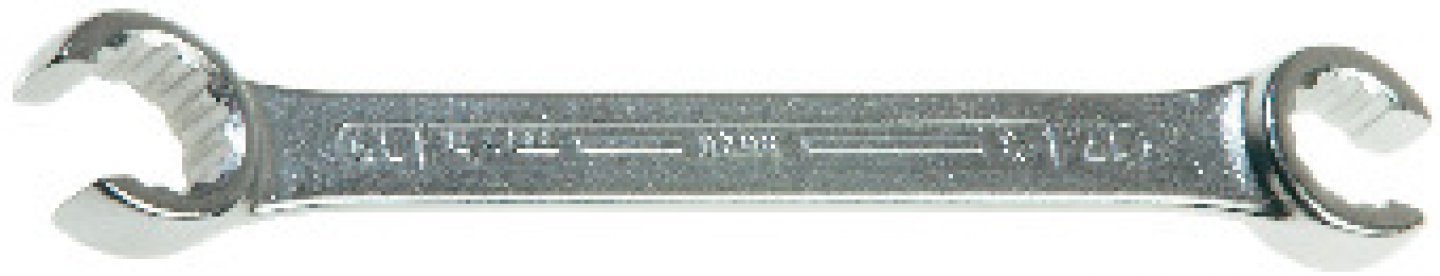

Flare nut wrenches
ERGONOMY: the flare nut wrenches are more compact than an open end wrench. Better accessibility. It improves the high second operation. ACCESSIBILITY: several contact ...
HD Images
- ERGONOMY: the flare nut wrenches are more compact than an open end wrench.
- Better accessibility.
- It improves the high second operation.
- ACCESSIBILITY: several contact points to transmit a powerful tightening: 12 sides profile protects the nuts against warping, 30° operation angle..

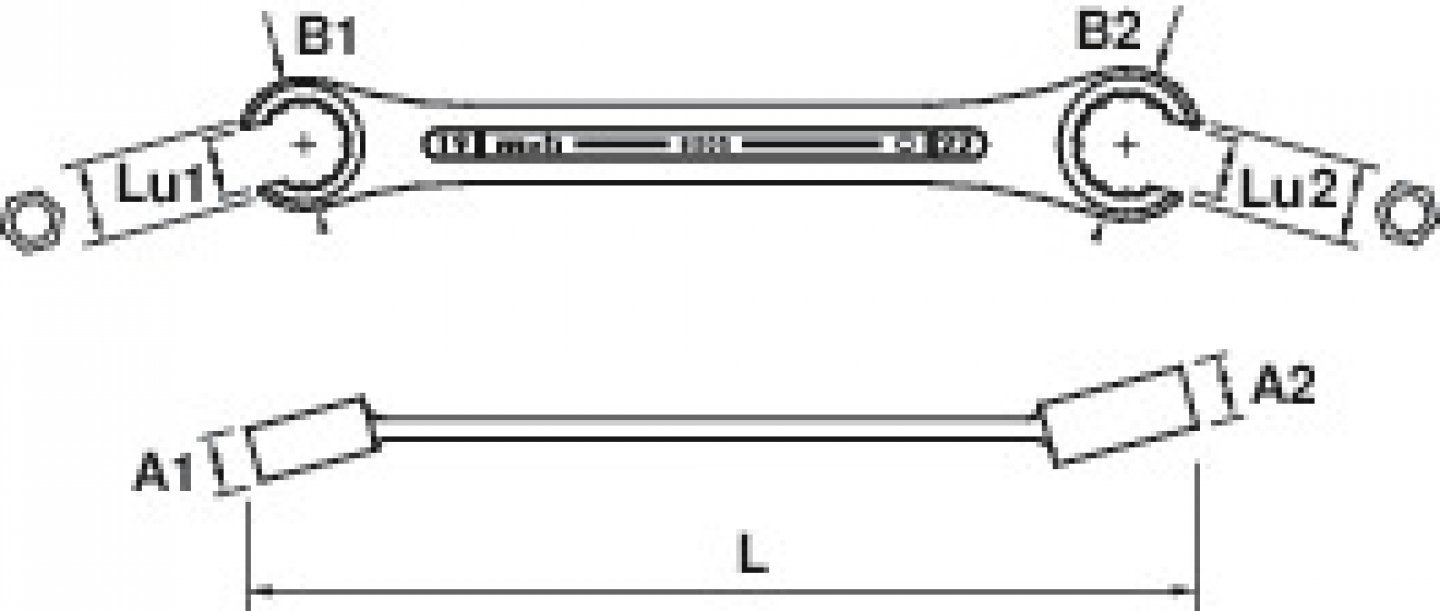

| Dim mm | L mm | B1 mm | B2 mm | A1 mm | A2 mm | Lu1 mm | Lu2 mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7x9 | 118 | 17 | 20 | 6,5 | 7,5 | 5,5 | 6,5 | 36 | E | 9020070001 | 1 | 3303809020079 |
| 8x10 | 123 | 18 | 20 | 6,5 | 7,5 | 6 | 7,5 | 40 | E | 9020080001 | 1 | 3303809020086 |
| 11x13 | 153 | 22 | 26 | 8,5 | 10 | 8,5 | 10 | 70 | E | 9020110001 | 1 | 3303809020116 |
| 12x14 | 160 | 24 | 28 | 9 | 11 | 9 | 11 | 90 | E | 9020120001 | 1 | 3303809020123 |
| 17x19 | 202 | 32 | 35 | 12 | 13 | 14,5 | 15,5 | 145 | E | 9020170001 | 1 | 3303809020178 |
| 19x22 | 237 | 35 | 41 | 13 | 15 | 15,5 | 17 | 245 | E | 9020190001 | 1 | 3303809020192 |
| 24x27 | 265 | 45 | 48 | 16,5 | 17,5 | 18 | 20 | 395 | E | 9020240001 | 1 | 3303809020246 |
| 30x32 | 289 | 50 | 52 | 20 | 22 | 22,5 | 24 | 535 | E | 9020300001 | 1 | 3303809020307 |
