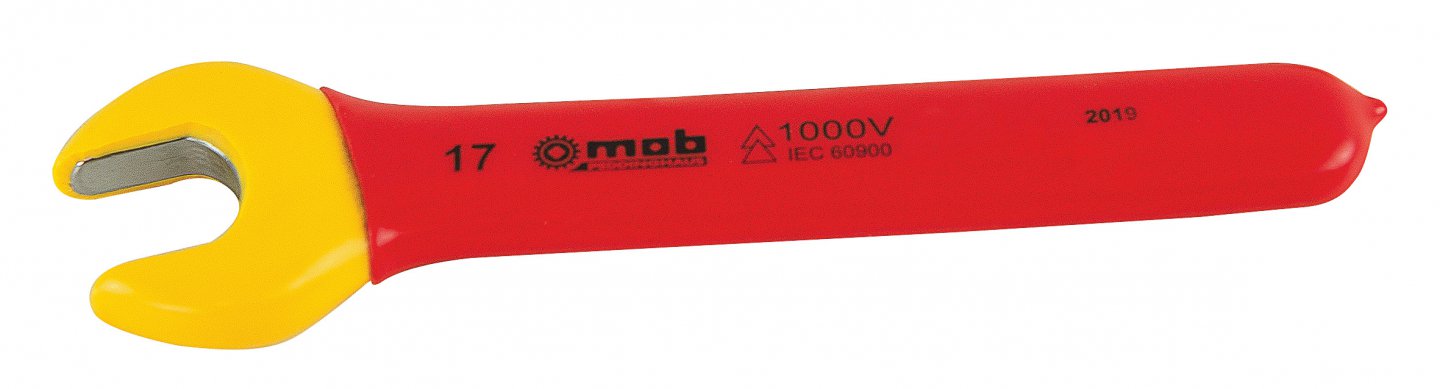

1000v insulated double open-end wrenches
.For all your operations under tension or near facilities under tension (until 1000V in alternating current and 1500V in direct current). In conformity with the ...
HD Images
- .For all your operations under tension or near facilities under tension (until 1000V in alternating current and 1500V in direct current).
- In conformity with the EN60900 European norm.

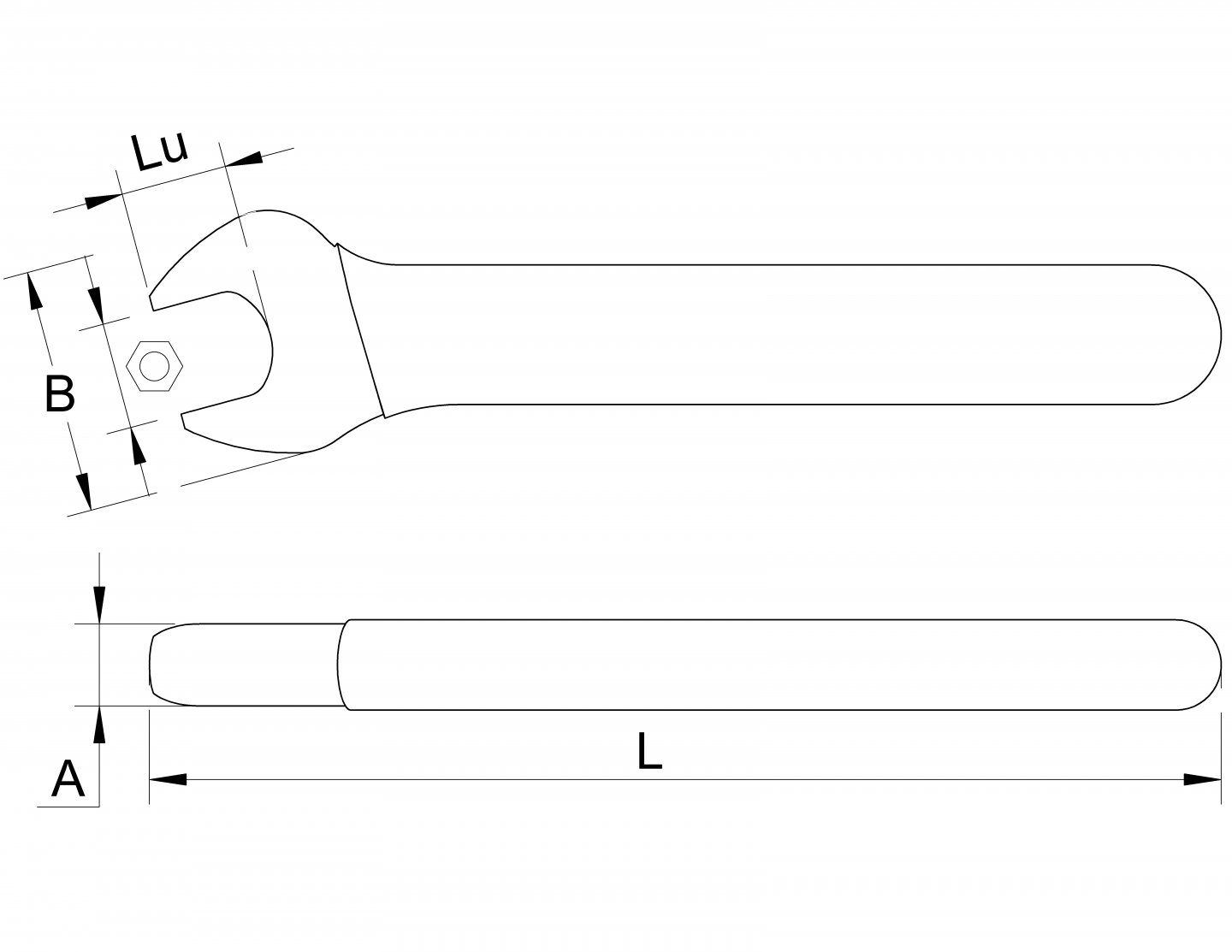

| Dim. mm | L mm | Lu mm | A mm | B mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 110 | 12,4 | 8,3 | 27 | 33 | E | 9005100501 | 0 | 3303809014092 |
| 11 | 115 | 12,9 | 7,3 | 28 | 36 | E | 9005110501 | 0 | 3303809014108 |
| 12 | 128 | 13,8 | 7,9 | 31 | 51 | E | 9005120501 | 0 | 3303809014115 |
| 13 | 138 | 14,3 | 7,9 | 33 | 58 | E | 9005130501 | 0 | 3303809014122 |
| 14 | 143 | 17 | 8,7 | 35 | 83 | E | 9005140501 | 0 | 3303809014139 |
| 15 | 146 | 15,3 | 8,7 | 36 | 88 | E | 9005150501 | 0 | 3303809014146 |
| 17 | 158 | 19,7 | 10,3 | 41 | 116 | E | 9005170501 | 0 | 3303809014153 |
| 19 | 173 | 20,9 | 10,5 | 46 | 153 | E | 9005190501 | 0 | 3303809014160 |
