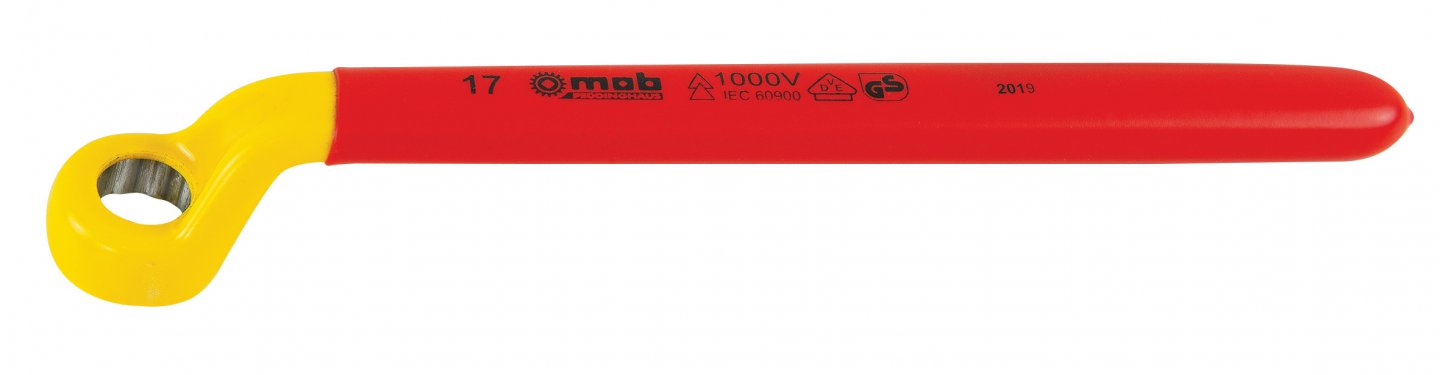

1000v insulated offset ring wrenches
For all your operations under tension or near facilities under tension (until 1000 V C and 1500 V DC). In conformity with the EN60900 European norm. Color code = ...
HD Images
- For all your operations under tension or near facilities under tension (until 1000 V C and 1500 V DC).
- In conformity with the EN60900 European norm.
- Color code = safety.

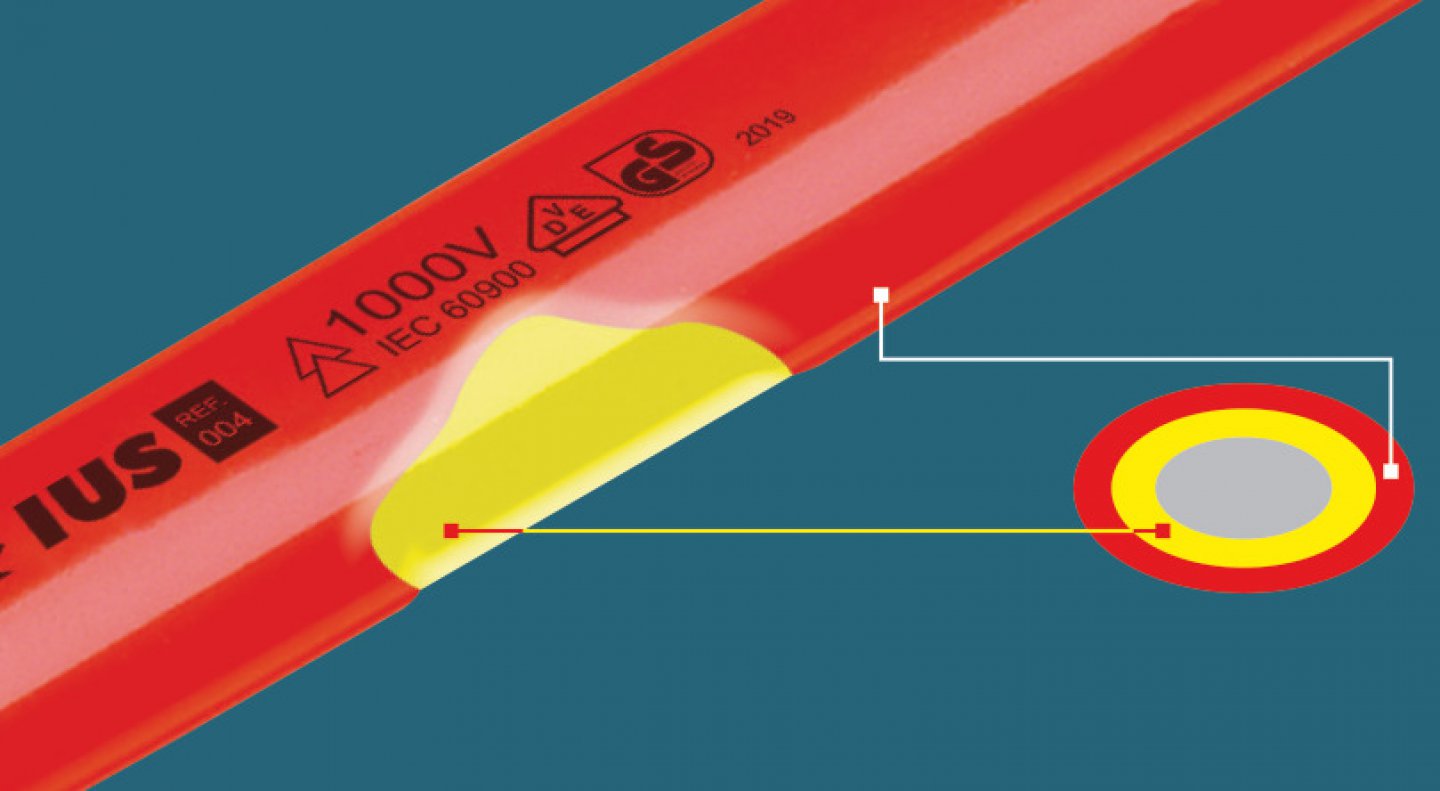

- Double insulation.
- The yellow color makes damages visible.
- Each wrench (each lot, sample) is tested unitarily.
- 1- Voltage test.

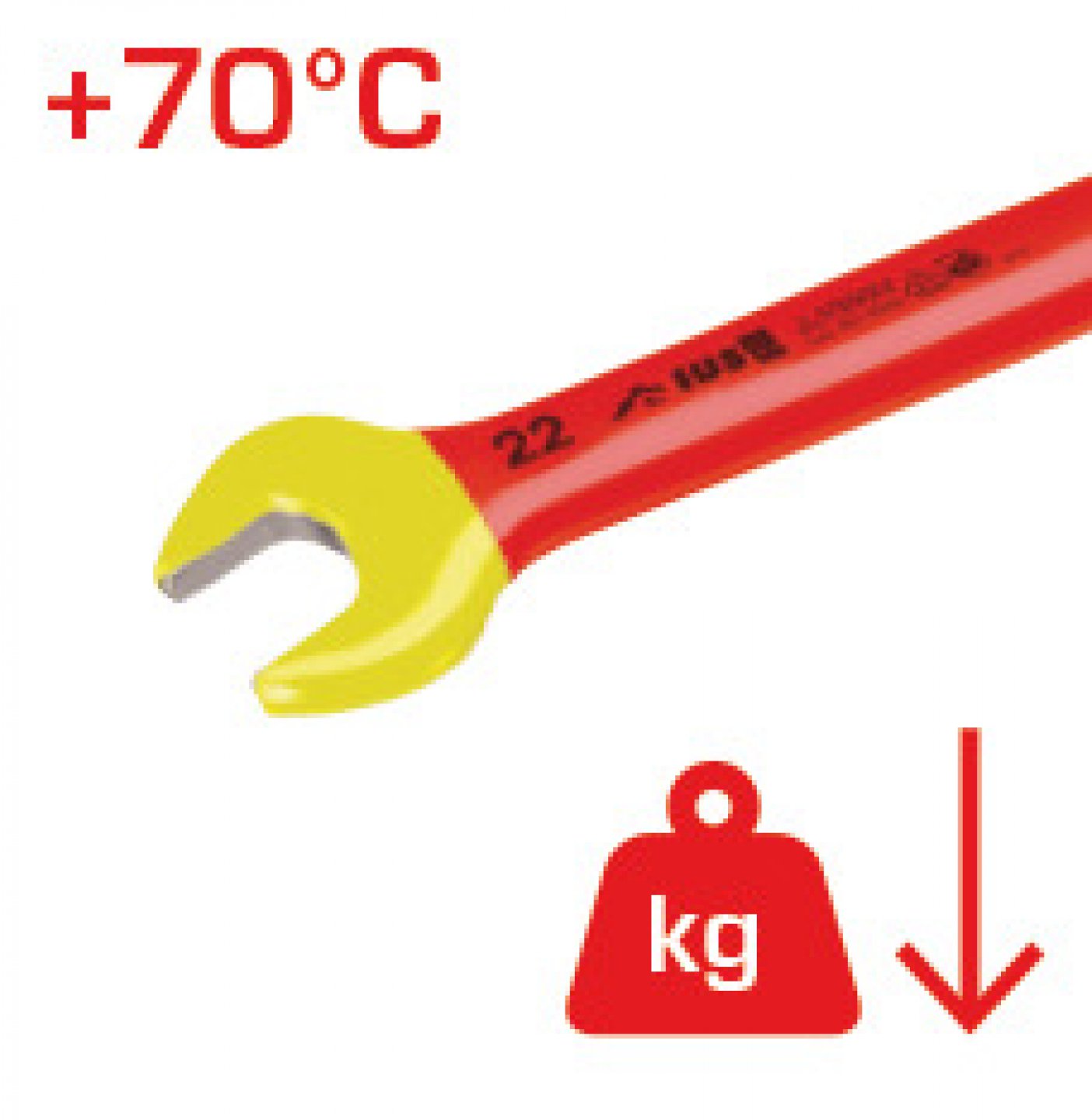

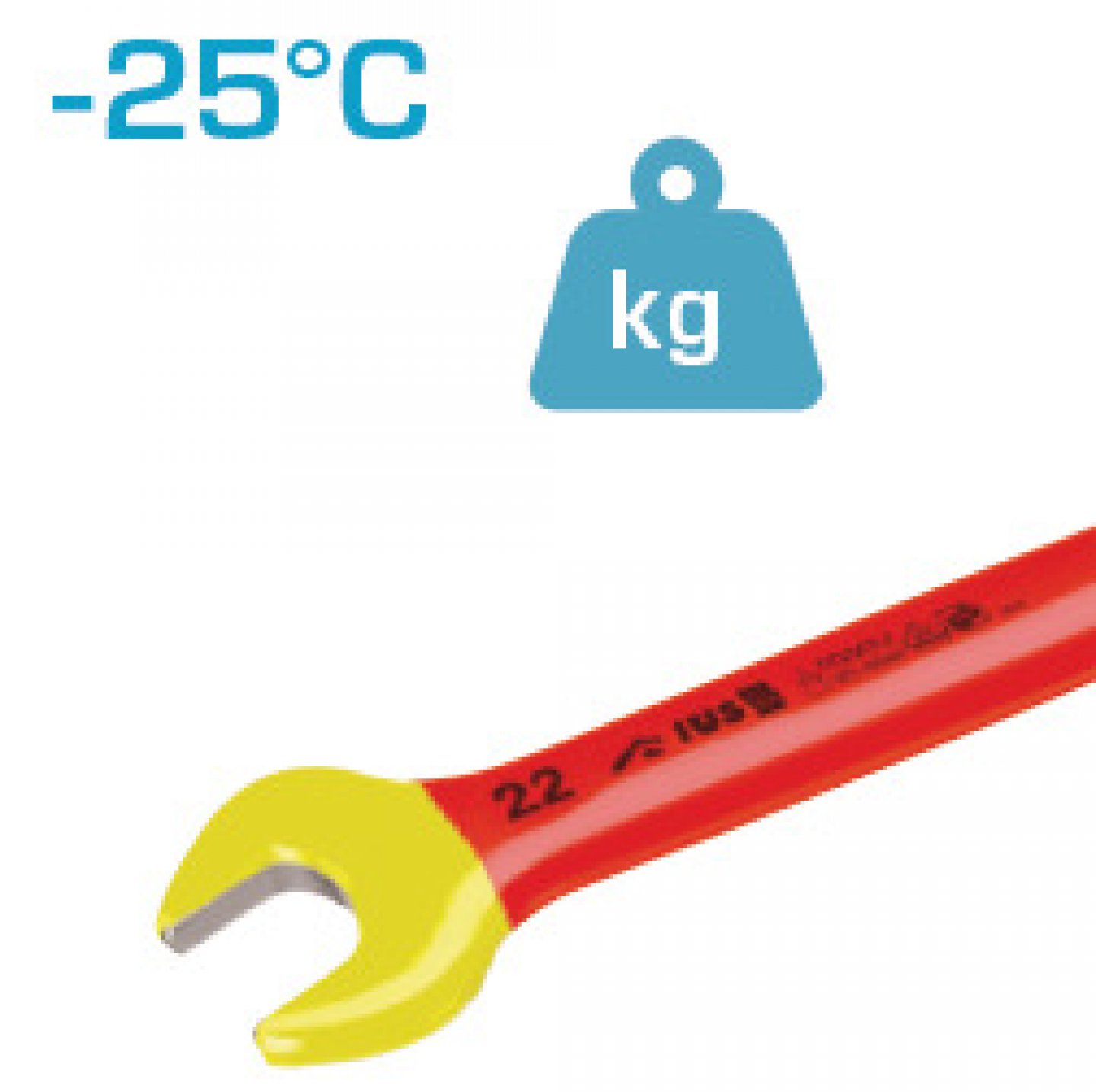

- 2- Test of the stability of the insulation material on the tool.
- 3- Fire resistance.
- 4- Penetration resistance..

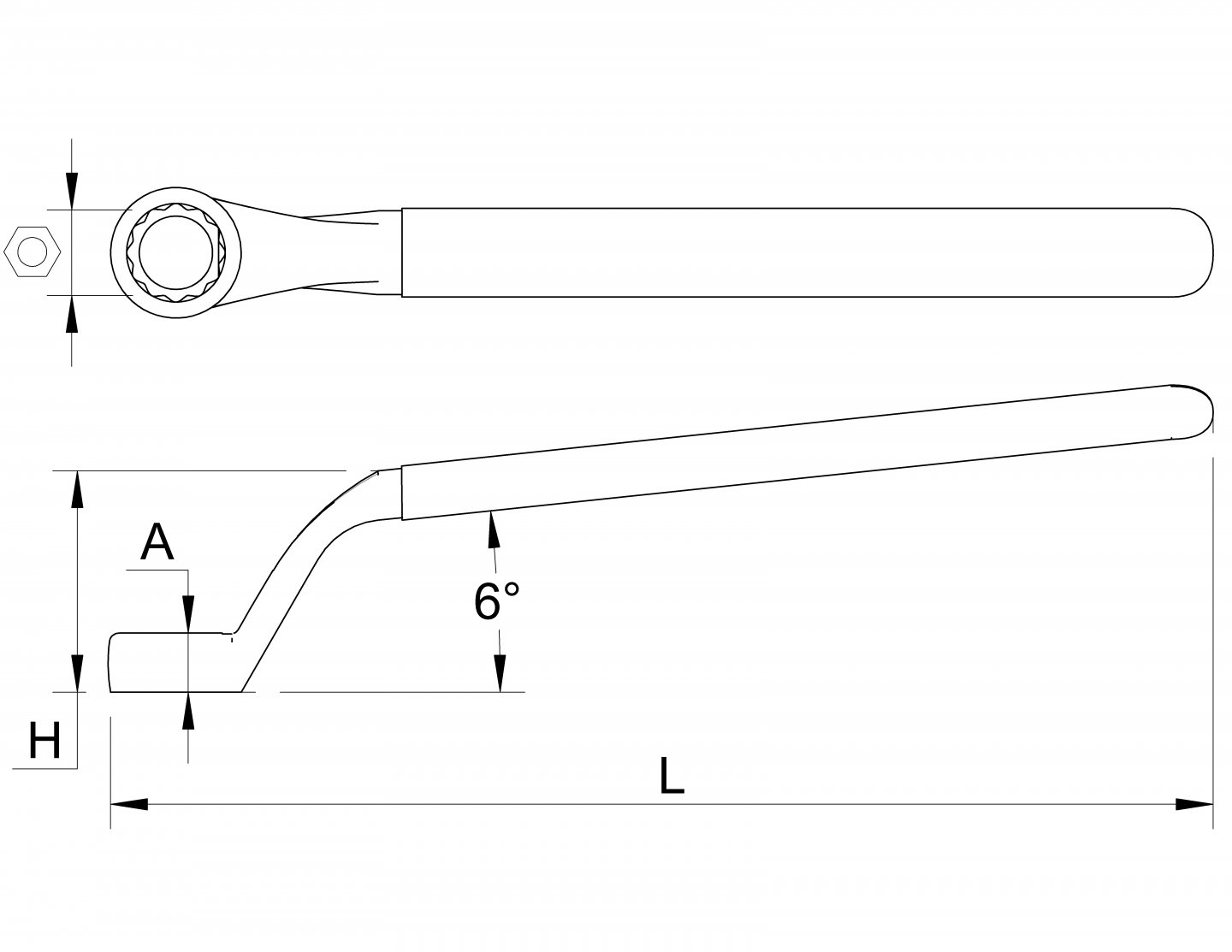

| Dim mm | L mm | A mm | H mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|
| 10 | 170 | 9,5 | 39,5 | 88 | E | 9010100501 | 0 | 3303809014177 |
| 11 | 178 | 11 | 46,5 | 95 | E | 9010110501 | 0 | 3303809014184 |
| 12 | 186 | 11 | 46,5 | 117 | E | 9010120501 | 0 | 3303809014191 |
| 13 | 183 | 11,5 | 53,5 | 105 | E | 9010130501 | 0 | 3303809014207 |
| 14 | 198 | 12 | 40 | 137 | E | 9010140501 | 0 | 3303809014214 |
| 15 | 198 | 12,5 | 59 | 145 | E | 9010150501 | 0 | 3303809014221 |
| 17 | 215 | 13 | 46,5 | 151 | E | 9010170501 | 0 | 3303809014238 |
| 19 | 235 | 14 | 43,5 | 193 | E | 9010190501 | 0 | 3303809014245 |
