Offset open socket wrenches 6x6

RESISTANCE: chrome-vanadium steel. Long durability. Heat treatment: hardened for a better resistance. The profile adjusts to different parts and does not matt the ...
Learn more
Offset open socket wrenches 6x6
Offset open socket wrenches 6x6 02
Offset open socket wrenches 6x6
Offset open socket wrenches 6x6 02
HD Images
  • RESISTANCE: chrome-vanadium steel.
  • Long durability.
  • Heat treatment: hardened for a better resistance.
  • The profile adjusts to different parts and does not matt the nuts.
  • PROTECTION: chromed.
  • FINISH: The handle is comfortable and easy to clean.
  • All of the keys comply with the norms NF, DIN and ISO.
  • The resistance of Mob's keys is remarkably higher than in the specifications stated in the ISO-norms.
  • Less tiring during an intensive use.
  • PRACTICAL: pass-through feature (hollow form) for threaded rods.
  • ACCESSIBILITY: wrench angle at 95° for the hand to move out easily from the work surface.
  • ERGONOMY: Very deep inlet for the screws on the wrench full section.
  • EXCLUSIVE: inlet chamfer to insert the wrench easily..

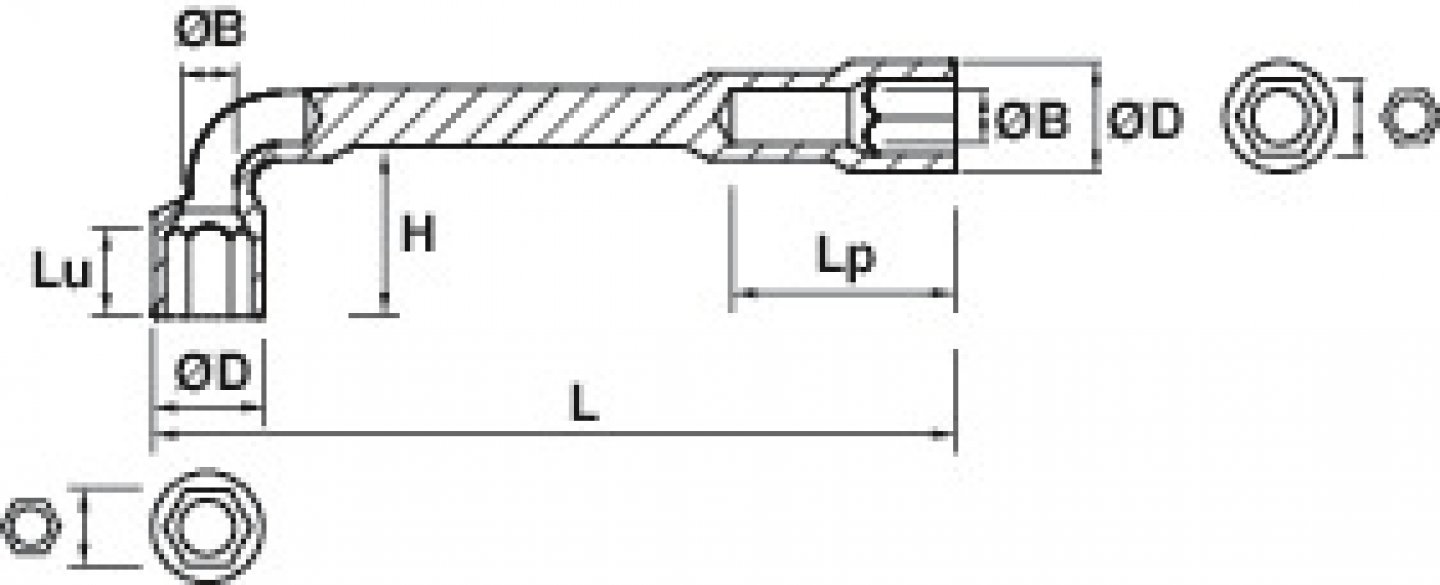

Dim mmL mmLp mmØD mmØB mmH mmLu mm gG
6 102 21 10 4,5 17 6 35 E 9015060001 5 3303809015068
7 106 22 10 4,5 17.5 7 55 E 9015070001 5 3303809015075
8 114 25 11,5 7 19.5 8 60 E 9015080001 5 3303809015082
9 122 26 12,5 7 20 9 75 E 9015090001 5 3303809015099
10 129 28 15 8 24 10 90 E 9015100001 5 3303809015105
11 136 30 16,5 8 26.5 11 115 E 9015110001 5 3303809015112
12 144 36 18 9 28 11 140 E 9015120001 5 3303809015129
13 152 38 19,5 9 30 12 145 E 9015130001 5 3303809015136
14 160 40 21 10,5 31.5 13 195 E 9015140001 5 3303809015143
15 169 42 22,5 10,5 34 14 210 E 9015150001 5 3303809015150
16 178 46 24 13 37 16 275 E 9015160001 5 3303809015167
17 187 48 25,5 13 39 17 315 E 9015170001 5 3303809015174
18 195 50 26,5 13 40 18 335 E 9015180001 5 3303809015181
19 204 51 28,5 15 41 19 435 E 9015190001 5 3303809015198
20 212 53 29,5 15 43 20 440 E 9015200001 5 3303809015204
21 221 55 30,5 15 46 21 445 E 9015210001 5 3303809015211
22 230 57 32 15 48 22 550 E 9015220001 5 3303809015228
23 240 64 33,5 18 50.5 23 625 E 9015230001 5 3303809015235
24 250 67 34,5 18 54 24 665 E 9015240001 5 3303809015242
25 260 69 36 20 56 25 715 E 9015250001 1 3303809015259
26 270 70 37 20 58.5 26 860 E 9015260001 1 3303809015266
27 280 73 38 22 58 27 970 E 9015270001 1 3303809015273
28 290 75 39,5 22 60 28 1000 E 9015280001 1 3303809015280
29 300 76 41 22 62 29 1100 E 9015290001 1 3303809015297
30 310 83 42 24 64 30 1220 E 9015300001 1 3303809015303
32 330 88 44,5 24 70 31 1430 E 9015320001 1 3303809015327
36 370 97 49.5 27 93 35 1875 E 9015360001 1 3303809013286
