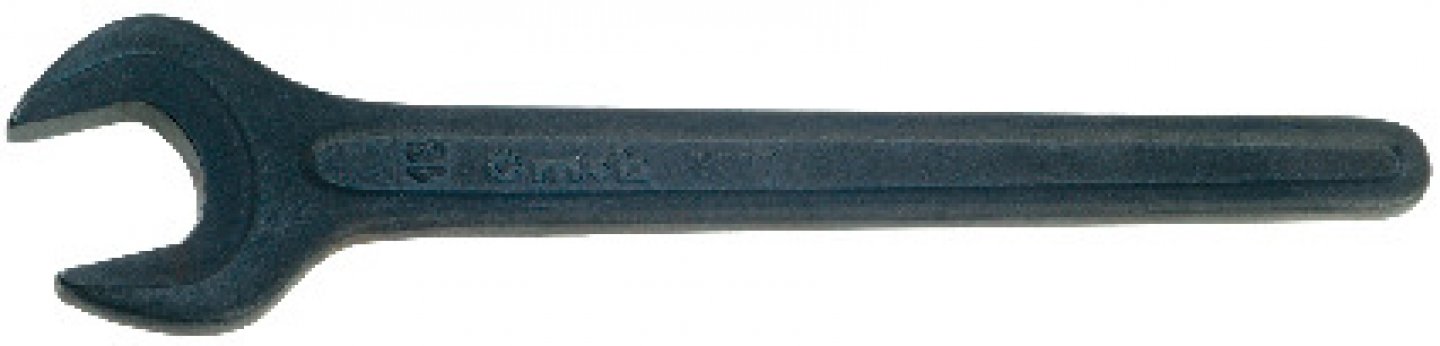

Single open-end spanners

Powerful single open-end spanners. Bigger dimensions adapted to the industry. Chrome-vanadium-steel. Hardness : 46/50 HRC. DIN 894. Black phosphate-finish. Complies ...
Learn more
Single open-end spanners
Single open-end spanners 02
Single open-end spanners
Single open-end spanners 02
HD Images
  • Powerful single open-end spanners.
  • Bigger dimensions adapted to the industry.
  • Chrome-vanadium-steel.
  • Hardness : 46/50 HRC.
  • DIN 894.
  • Black phosphate-finish.
  • Complies with the norm DIN 894..

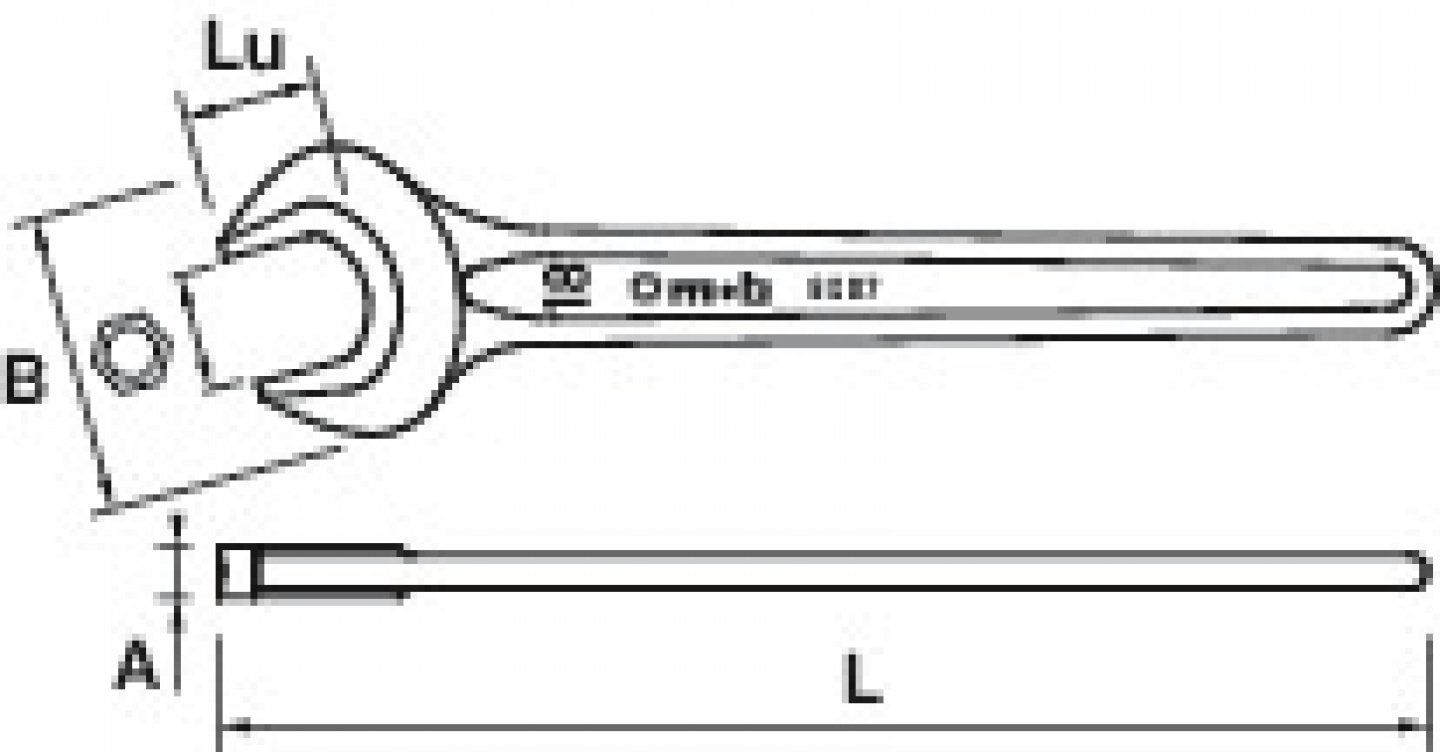

Dim mmL mmB mmA mmLu mm gG
10 110 23 5 11 25 E 9007100001 5 3303809007100
13 130 29 6 13 40 E 9007130001 5 3303809007131
17 158 37 6,5 18 65 E 9007170001 5 3303809007179
24 220 50 8 23 155 E 9007240001 1 3303809007247
27 240 56 10 25 225 E 9007270001 1 3303809007278
30 260 62 12 28 320 E 9007300001 1 3303809007308
32 280 66 11 30 360 E 9007320001 1 3303809007322
36 320 77 13 32 470 E 9007360001 1 3303809007360
38 327 80 13 30 550 E 9007380001 1 3303809007384
40 350 86 13 31 630 E 9007400001 1 3303809007407
41 350 85 12 39 600 E 9007410001 1 3303809007414
42 350 86 14 30 645 E 9007420001 1 3303809007421
46 380 90 14 43 755 E 9007460001 1 3303809007469
48 400 100 15 41 925 E 9007480001 1 3303809007483
50 420 100 14 42 955 E 9007500001 1 3303809007506
55 460 110 16 51 1425 E 9007550001 1 3303809007551
60 500 122 18 57 1700 E 9007600001 1 3303809007605
65 537 130 18 60 2020 E 9007650001 1 3303809007650
70 545 140 19 70 2260 E 9007700001 1 3303809007704
75 580 154 24 73 3175 E 9007750001 1 3303809007759
80 625 160 23 80 3445 E 9007800001 1 3303809007803
85 675 170 22 85 4015 E 9007850001 1 3303809007858
90 700 183 22 95 4710 E 9007900001 1 3303809007902
95 740 190 24 98 5380 E 9007950001 1 3303809007957
100 800 195 25 105 7325 E 9007990001 1 3303809007995
