Combination spanners - long version

COMBINATION SPANNERS. Forged chrome-vanadium steel for a long-term durability. HIGH RESISTANCE: Hardened (Heat treatment). Broaching: Special technology that allows ...
Learn more
Combination spanners - long version
Combination spanners - long version 02
Combination spanners - long version
Combination spanners - long version 02
HD Images
  • COMBINATION SPANNERS.
  • Forged chrome-vanadium steel for a long-term durability.
  • HIGH RESISTANCE: Hardened (Heat treatment).
  • Broaching: Special technology that allows for precise high quality sides.
  • PROTECTION PROFILE: Profile designed to avoid matting the nuts.
  • The spanners do not work on the angles, they work on the sides of the nut.
  • Remarkably better resistance than the norm.
  • Long durability.
  • ERGONOMY: The handle's shape and the marking are designed to make the grip easy during high tightening efforts.
  • FINISH: The surface is comfortable and easy to clean.
  • Reduced tiredness during an intensive professional use.
  • ACCESSIBILITY: 30° increments.
  • Reduced outside diameter of the eye allowing to work easily in zones of hard access.
  • PRECISION AND RESISTANCE: Tools fitting the nut dimensions.
  • Ring end angled at 15°.
  • All spanners are in conformity with NF, DIN and ISO norms.
  • Fabricated in our factories..

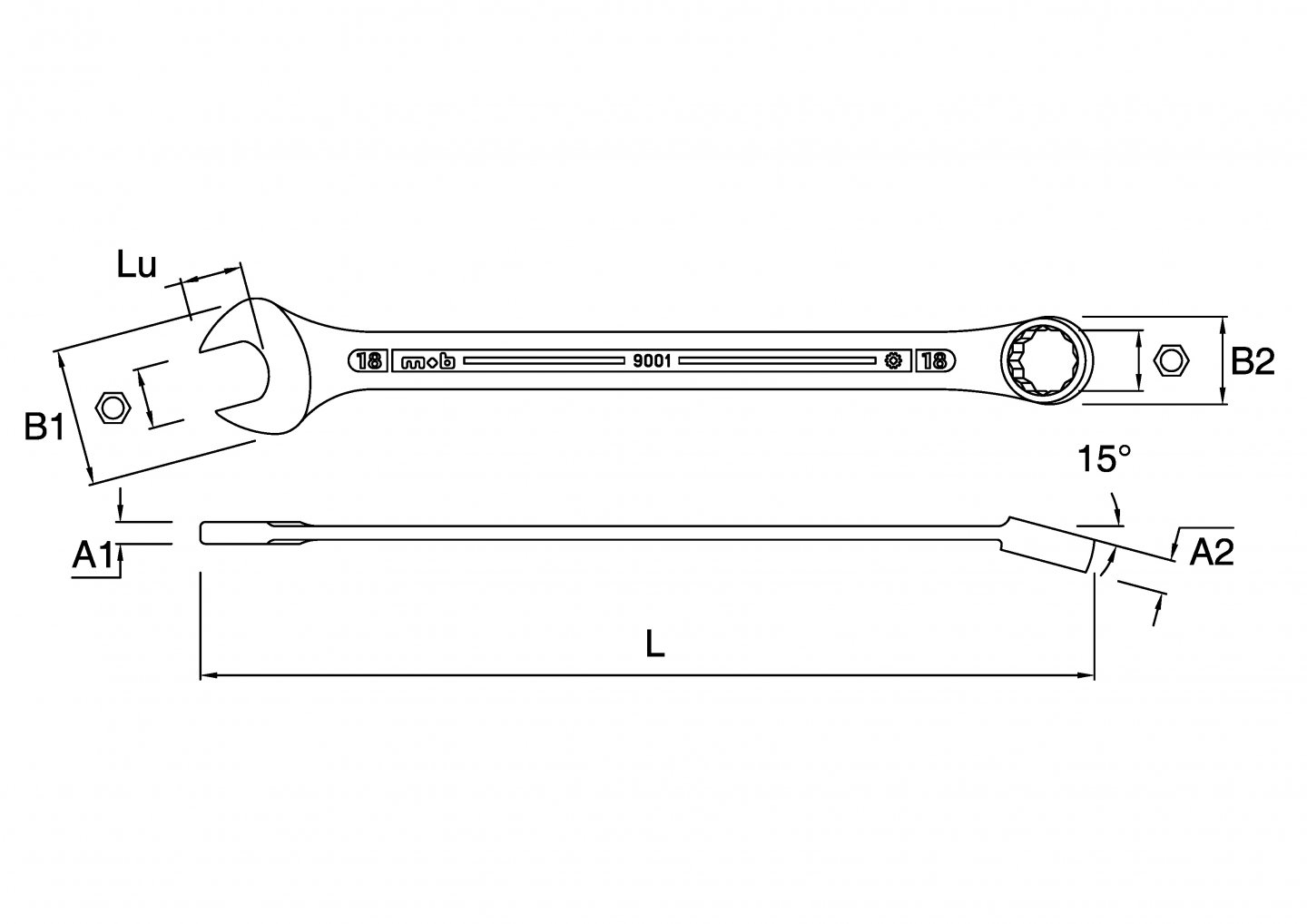

Dim mmL mmB1 mmB2 mmA1 mmA2 mmLu mm gG
8 150 21 13 4 6,3 9,6 31 E 9001080001 5 3303809001085
9 165 23 14,5 4 6,5 10,5 36 E 9001090001 5 3303809001092
10 175 25 16 4,7 7 11,4 48 E 9001100001 5 3303809001108
11 185 27 17 4,7 7,5 12,2 52 E 9001110001 5 3303809001115
12 200 29 19 5,2 7,8 13,1 68 E 9001120001 5 3303809001122
13 210 31 20,5 5,2 8,5 14 85 E 9001130001 5 3303809001139
14 220 33 21,5 6 9 14,8 101 E 9001140001 5 3303809001146
15 230 35 22,5 6 9,2 15,7 107 E 9001150001 5 3303809001153
16 240 37 24 6,5 10 16,6 133 E 9001160001 5 3303809001160
17 255 39 25,5 6,5 10,5 17,5 156 E 9001170001 5 3303809001177
18 265 41 27 7,2 11 18,3 184 E 9001180001 5 3303809001184
19 275 44 28 7,5 11,5 20 195 E 9001190001 5 3303809001191
21 300 47 30,5 7,8 12,5 21 261 E 9001210001 5 3303809001214
22 310 49 32,5 7,8 13 21,9 287 E 9001220001 5 3303809001221
23 320 51 33,5 7,8 13,5 22,7 301 E 9001230001 5 3303809001238
24 335 53 35,5 9 14 23,6 407 E 9001240001 5 3303809001245
26 360 57 38 9 15 25,4 451 E 9001260001 1 3303809001269
27 370 59 39 10 15,5 26,3 482 E 9001270001 1 3303809001276
28 395 61 41 10 16 27,1 550 E 9001280001 1 3303809001283
30 425 65 44,5 10 17 28,9 660 E 9001300001 1 3303809001306
32 430 69 46 10 18 30,7 684 E 9001320001 1 3303809001320
