Combination spanners

COMBINATION SPANNERS. Forged chrome-vanadium steel for a long-term durability. HIGH RESISTANCE: Hardened (Heat treatment). Broaching: Special technology that allows ...
Learn more
Combination spanners
Combination spanners 02
Combination spanners 03
Combination spanners 04
Combination spanners
Combination spanners 02
Combination spanners 03
Combination spanners 04
HD Images
  • COMBINATION SPANNERS.
  • Forged chrome-vanadium steel for a long-term durability.
  • HIGH RESISTANCE: Hardened (Heat treatment).
  • Broaching: Special technology that allows for precise high quality sides.

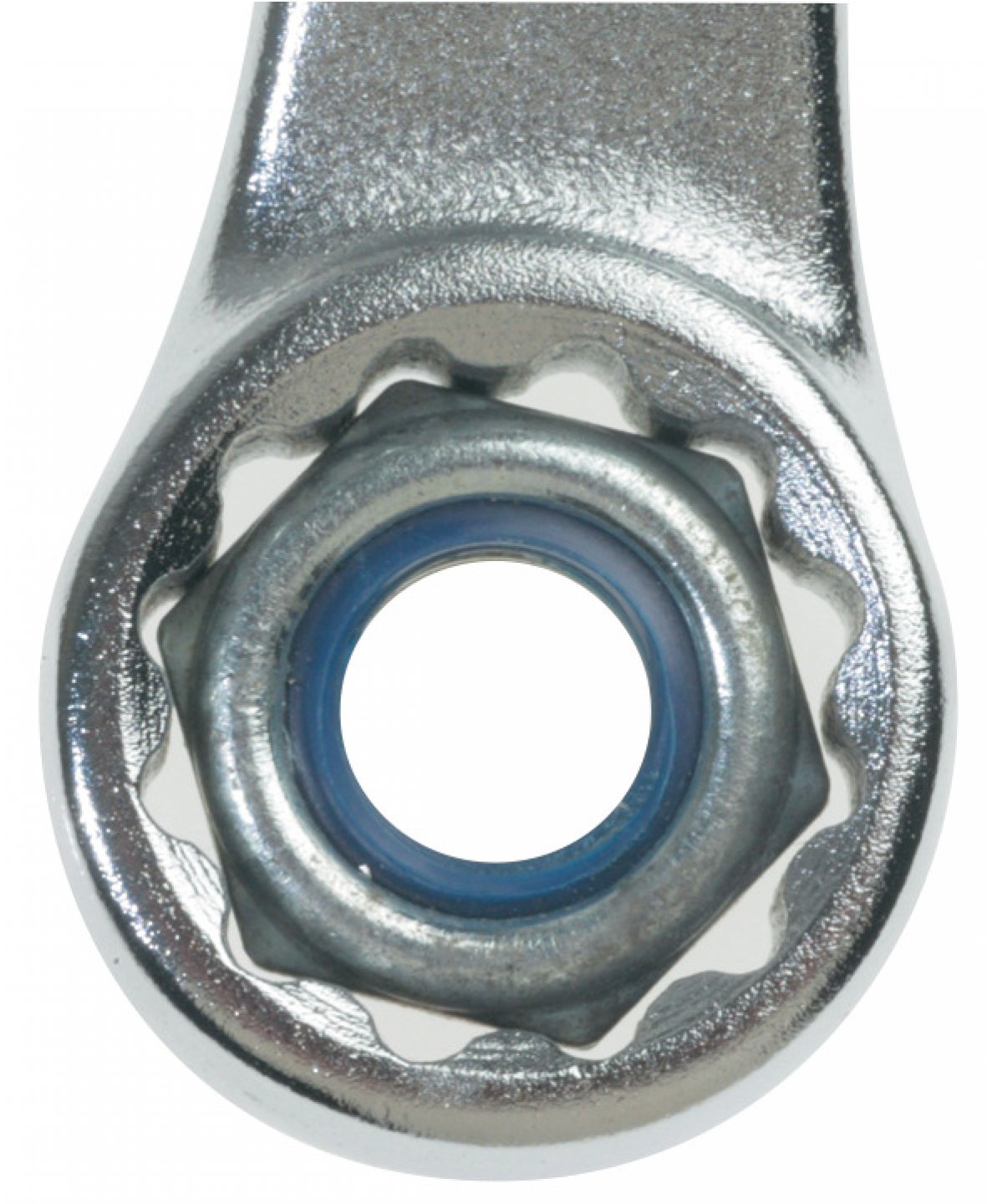

  • PROTECTION PROFILE: Profile designed to avoid matting the nuts.

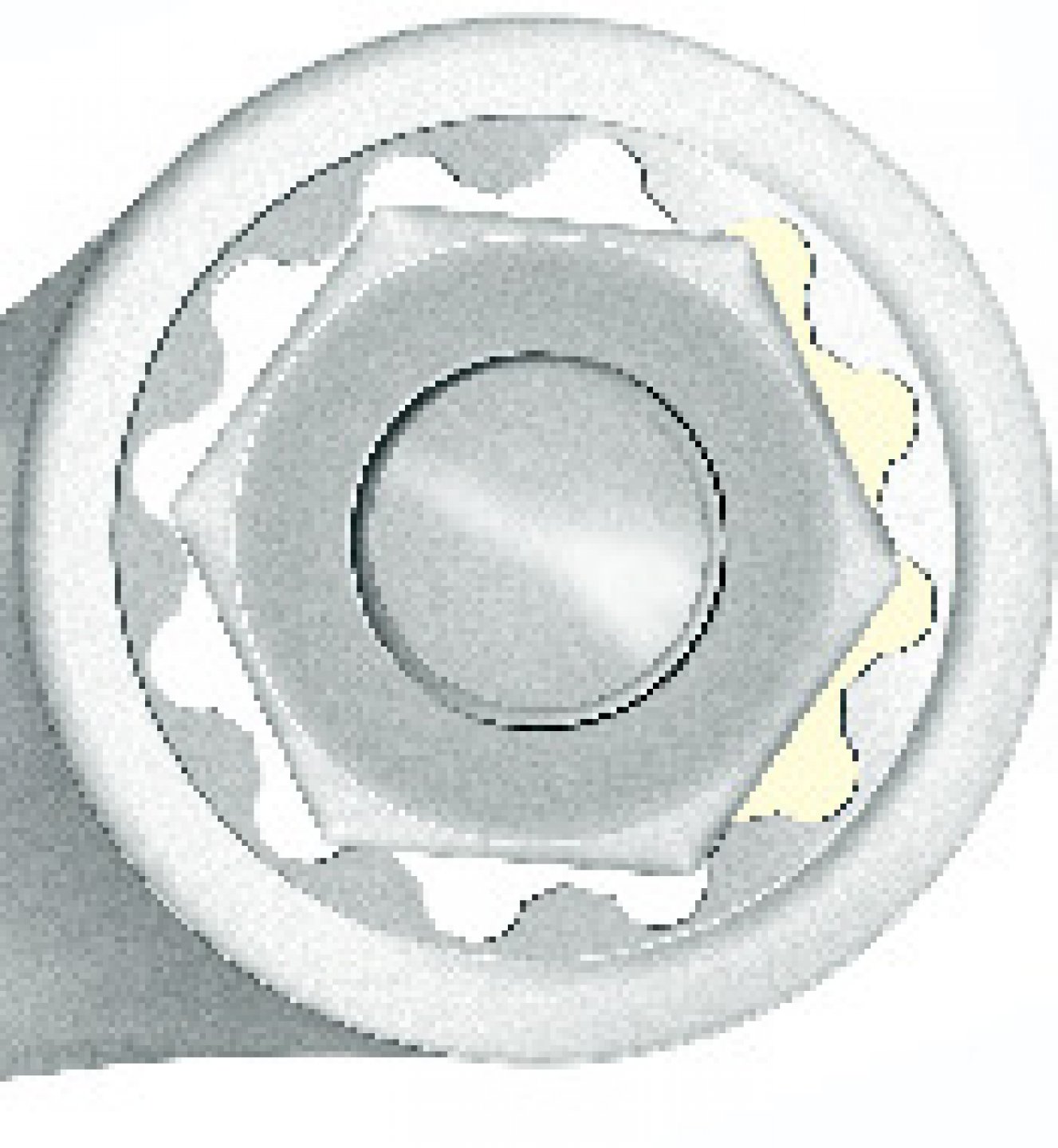

  • The spanners do not work on the angles, they work on the sides of the nut.
  • Remarkably better resistance than the norm.
  • Long durability.
  • ERGONOMY: The handle's shape and the marking are designed to make the grip easy during high tightening efforts.
  • FINISH: The surface is comfortable and easy to clean.
  • Reduced tiredness during an intensive professional use.
  • ACCESSIBILITY: 30° increments.
  • Reduced outside diameter of the eye allowing to work easily in zones of hard access.
  • PRECISION AND RESISTANCE: Tools fitting the nut dimensions.
  • Ring end angled at 15°.
  • All spanners are in conformity with NF, DIN and ISO norms.
  • Fabricated in our factories..

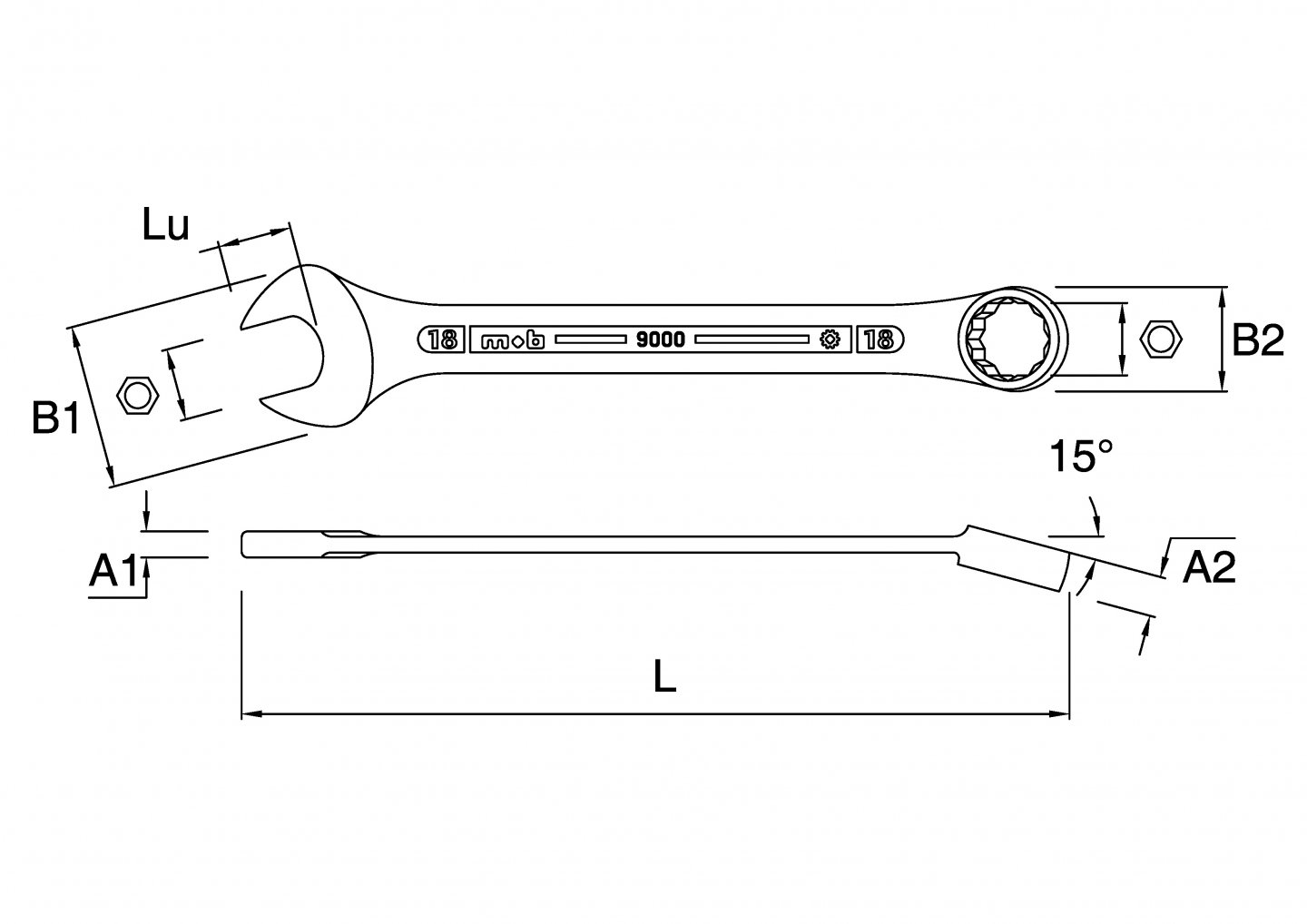

Dim mmL mmB1 mmB2 mmA1 mmA2 mmLu mm gG
4 100 15 9,5 3,6 4,5 6,5 15 E 9000040001 5 3303809000309
5 100 15 9,5 3,6 4,5 6,9 15 E 9000050001 5 3303809000002
5,5 105 17 10 3,7 5 7,8 18 E 9000A50001 5 3303809000279
6 105 17 10 3,7 5 7,8 18 E 9000060001 5 3303809000019
7 110 19 11,5 3,7 5,5 8,7 20 E 9000070001 5 3303809000026
8 116 21 13 4 6,3 9,6 26 E 9000080001 5 3303809000033
9 125 23 14,5 4 6,5 10,5 29 E 9000090001 5 3303809000040
10 134 25 16 4,7 7 11,4 39 E 9000100001 5 3303809000057
11 143 27 17 4,7 7,5 12,2 43 E 9000110001 5 3303809000064
12 152 29 19 5,2 7,8 13,1 56 E 9000120001 5 3303809000071
13 161 31 20,5 5,2 8,5 14 70 E 9000130001 5 3303809000088
14 170 33 21,5 6 9 14,8 83 E 9000140001 5 3303809000095
15 179 35 22,5 6 9,2 15,7 90 E 9000150001 5 3303809000101
16 188 37 24 6,5 10 16,6 111 E 9000160001 5 3303809000118
17 197 39 25,5 6,5 10,5 17,5 128 E 9000170001 5 3303809000125
18 206 41 27 7,2 11 18,3 151 E 9000180001 5 3303809000132
19 215 44 28 7,5 11,5 20 161 E 9000190001 5 3303809000149
20 226 45 29,5 7,8 12 20,1 203 E 9000200001 5 3303809000156
21 237 47 30,5 7,8 12,5 21 217 E 9000210001 5 3303809000163
22 248 49 32,5 7,8 13 21,9 241 E 9000220001 5 3303809000170
23 259 51 33,5 7,8 13,5 22,7 256 E 9000230001 5 3303809000187
24 270 53 35,5 9 14 23,6 342 E 9000240001 5 3303809000194
25 281 55 36,5 9 14,5 24,5 361 E 9000250001 1 3303809000200
26 292 57 38 9 15 25,4 384 E 9000260001 1 3303809000217
27 303 59 39 10 15,5 26,3 415 E 9000270001 1 3303809000224
28 314 61 41 10 16 27,1 463 E 9000280001 1 3303809000231
29 325 63 42,5 10 16,5 28 487 E 9000290001 1 3303809000248
30 336 65 44,5 10 17 28,9 553 E 9000300001 1 3303809000255
32 347 69 46 10 18 30,7 585 E 9000320001 1 3303809000262
36 380 77 51.5 11 20 34 755 E 9000360001 1 3303809000361
41 436 87 58.5 11 22 38.2 955 E 9000410001 1 3303809010445
