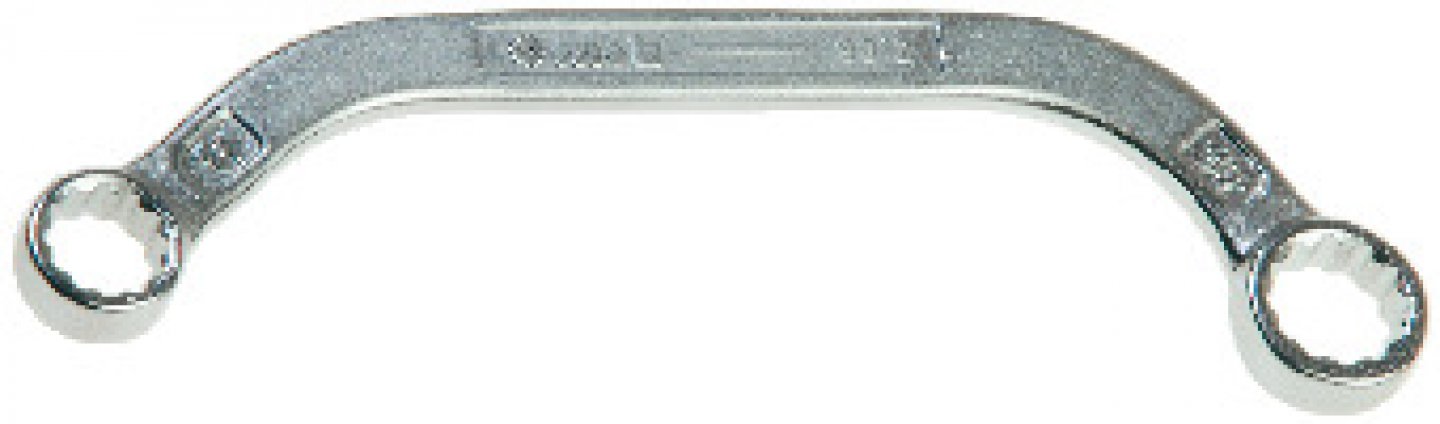

Half moon ring wrenches
PERFORMANCE: the wrench's particular shape makes it possible to screw when something is in the way. CONVENIENT: 12 sides profile protects the nuts against warpi ...
HD Images
- PERFORMANCE: the wrench's particular shape makes it possible to screw when something is in the way.
- CONVENIENT: 12 sides profile protects the nuts against warping..
| Dim mm | L mm | B1 mm | B2 mm | A1/A2 mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 10x12 | 150 | 17 | 20,5 | 7 | 61 | E | 9012100001 | 1 | 3303809012104 |
| 11x13 | 150 | 17 | 20,5 | 7 | 61 | E | 9012110001 | 1 | 3303809012111 |
| 13x15 | 184 | 21 | 23 | 8 | 75 | E | 9012130001 | 1 | 3303809012135 |
| 14x17 | 185 | 21 | 25 | 8 | 83 | E | 9012140001 | 1 | 3303809012142 |
| 16x18 | 200 | 25 | 27 | 9 | 105 | E | 9012160001 | 1 | 3303809012166 |
| 19x22 | 235 | 28 | 32,5 | 10 | 157 | E | 9012190001 | 1 | 3303809012197 |
