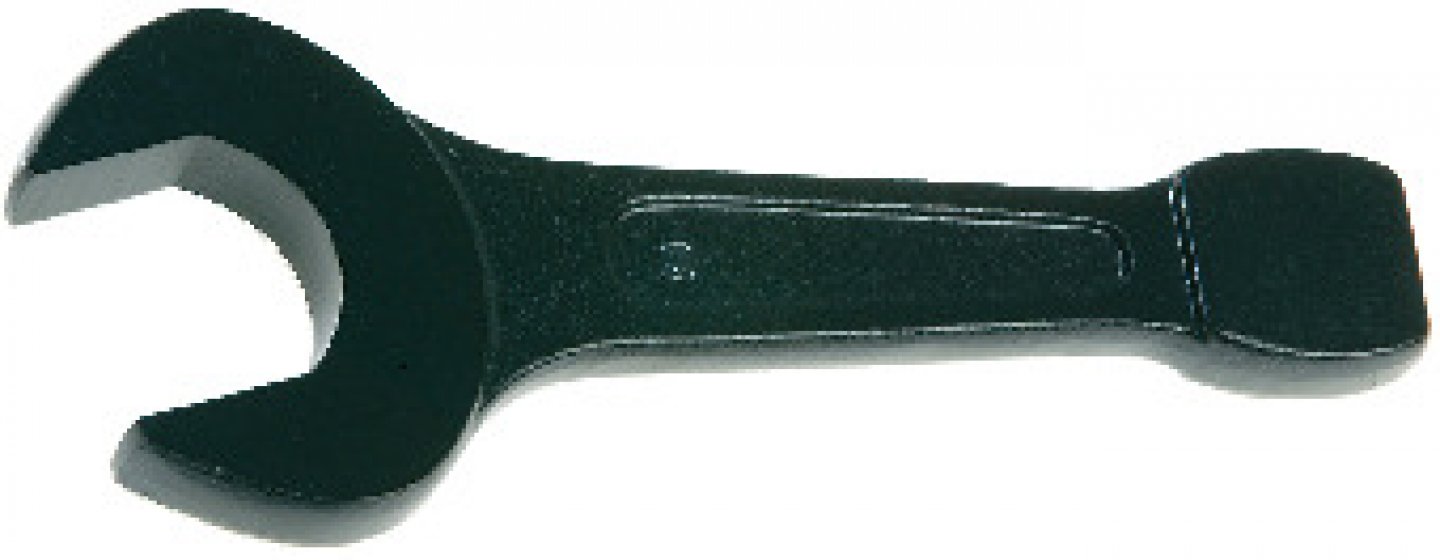

Slogging open-ended spanners

Powerful striking zone for increased clamping / loosening power, high power keys. High dimensions, suitable for industry. Steel: chrome steel 40Cr10. Selective tempering ...
Learn more
Slogging open-ended spanners
Slogging open-ended spanners 02
Slogging open-ended spanners
Slogging open-ended spanners 02
HD Images
  • Powerful striking zone for increased clamping / loosening power, high power keys.
  • High dimensions, suitable for industry.
  • Steel: chrome steel 40Cr10.
  • Selective tempering on working parts (fork).
  • Hardness: 34 / 40HRC (S <46 mm) - 30/36 HRC (S> 50 mm).
  • Finish: phosphate.
  • Conforms to DIN 475 / DIN 133..

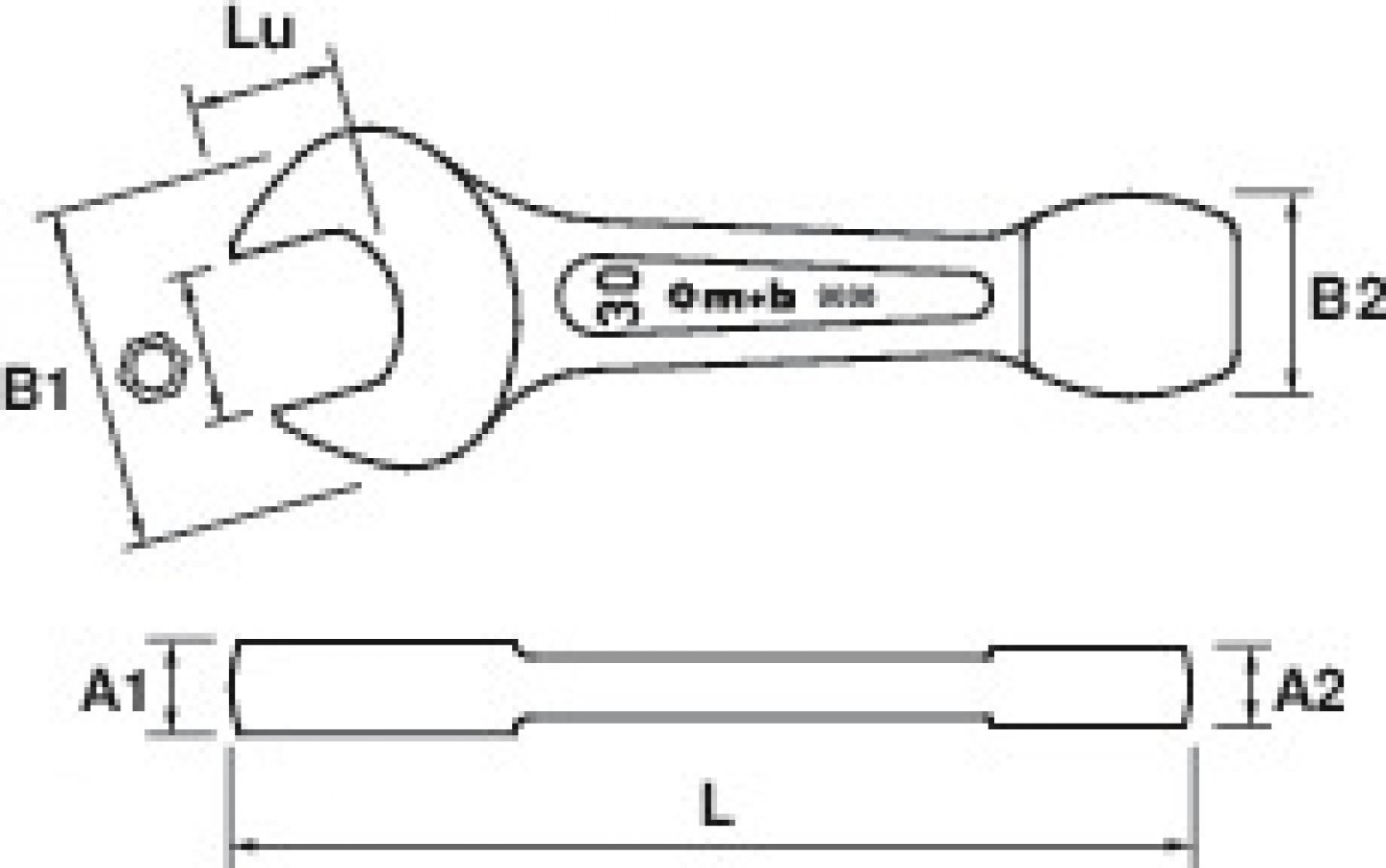

Dim mmL mmB1 mmB2 mmA1 mmA2 mmLu mm gG
24 160 48 31 14 11 23 290 E 9006240001 1 3303809006240
27 180 56 33 16 12 26 340 E 9006270001 1 3303809006271
30 190 65 38 17 15 28 550 E 9006300001 1 3303809006301
32 195 67 38 17 15 30 560 E 9006320001 1 3303809006325
36 210 77 43 18 18 34 845 E 9006360001 1 3303809006363
41 230 88 43 19 18 38 1040 E 9006410001 1 3303809006417
46 250 96 48 20 20 43 1375 E 9006460001 1 3303809006462
50 275 106 48 21 20 46 1670 E 9006500001 1 3303809006509
55 305 116 56 24 22 51 2175 E 9006550001 1 3303809006554
60 315 125 56 24 22 55 2455 E 9006600001 1 3303809006608
65 345 136 62 28 26 60 3550 E 9006650001 1 3303809006653
70 370 148 62 30 26 65 4075 E 9006700001 1 3303809006707
75 385 158 68 30 30 70 5170 E 9006750001 1 3303809006752
80 400 170 68 33 30 76 5785 E 9006800001 1 3303809006806
85 410 174 78 33 32 80 6870 E 9006850001 1 3303809006851
90 445 188 78 38 32 86 8165 E 9006900001 1 3303809006905
95 455 194 87 38 36 93 9620 E 9006950001 1 3303809006950
100 480 220 87 46 36 102 11880 E 9006990001 1 3303809006998
