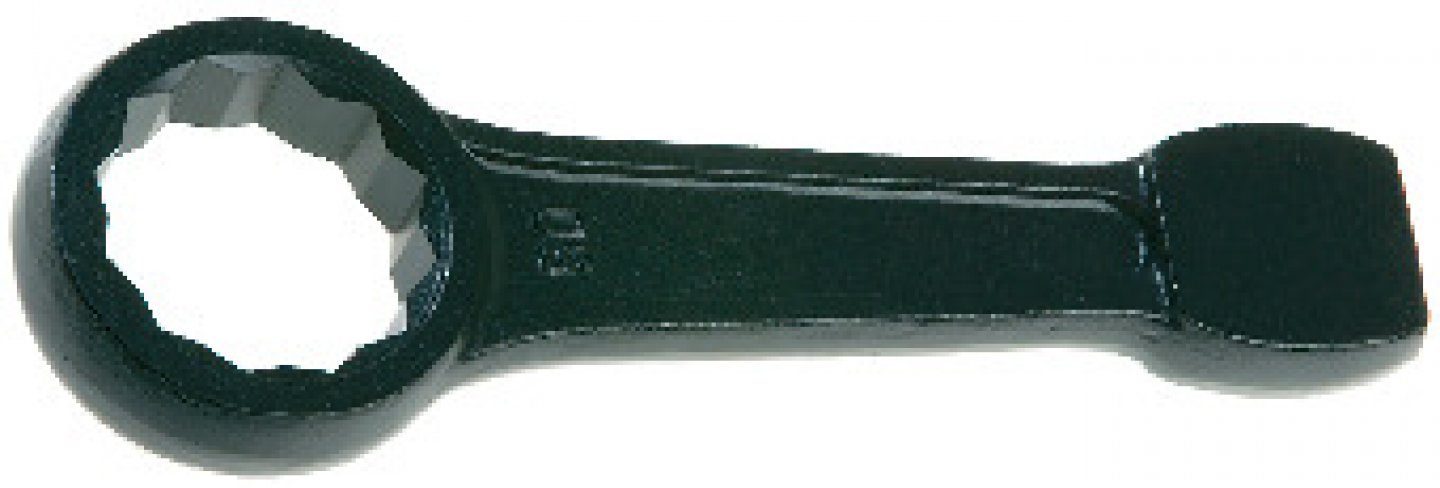

Slogging ring spanners

Powerful striking zone for increased clamping / loosening power, high power keys. High dimensions, suitable for industry. Steel: chrome steel 40Cr10. Selective tempering ...
Learn more
Slogging ring spanners
Slogging ring spanners 02
Slogging ring spanners
Slogging ring spanners 02
HD Images
  • Powerful striking zone for increased clamping / loosening power, high power keys.
  • High dimensions, suitable for industry.
  • Steel: chrome steel 40Cr10.
  • Selective tempering on working parts (ring).
  • Hardness: 34 / 40HRC (S <46 mm) - 30/36 HRC (S> 50 mm).
  • Finish: phosphate.
  • Conforms to DIN 475 / DIN 133..

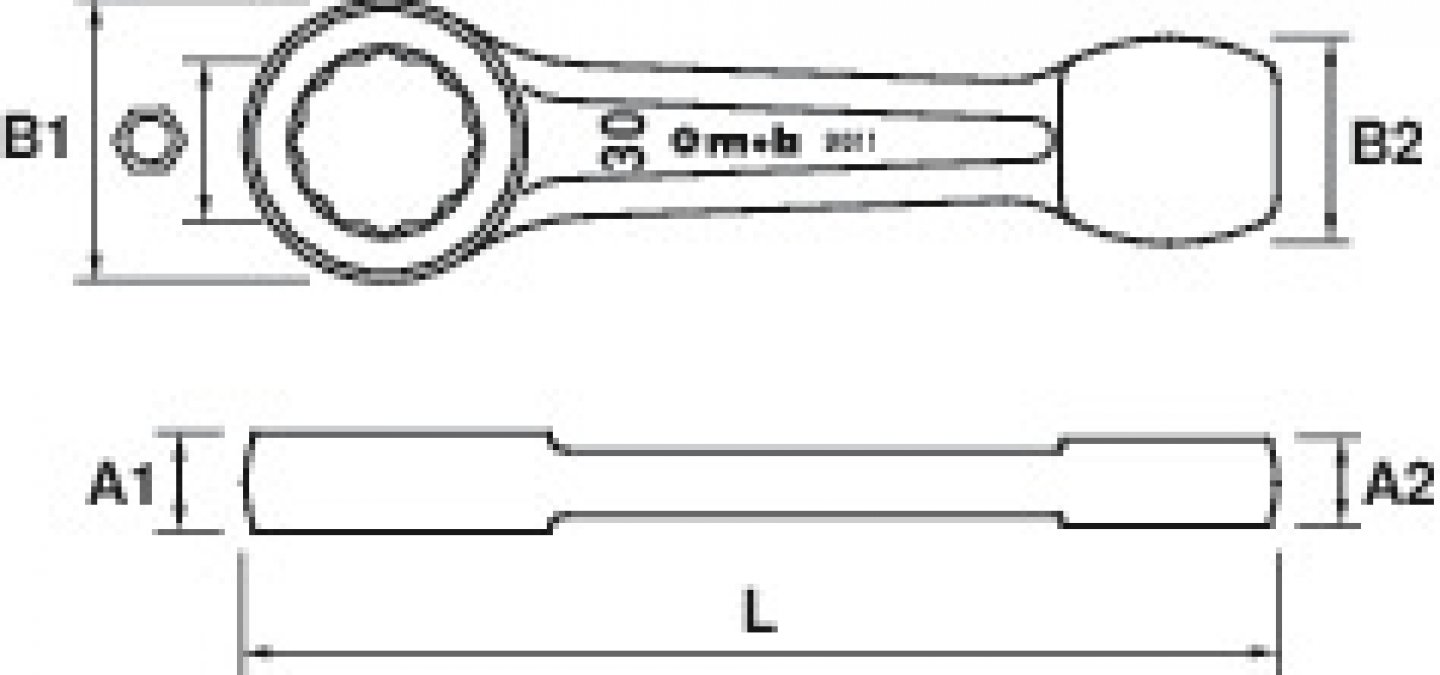

Dim mmL mmB1 mmB2 mmA1 mmA2 mm gG
24 158 43 32 14 12 270 E 9011240001 1 3303809011244
27 178 46 33 16 12 380 E 9011270001 1 3303809011275
30 191 52 38 17 14 500 E 9011300001 1 3303809011305
32 192 53 38 17 14 530 E 9011320001 1 3303809011329
36 210 59 43 19 18 760 E 9011360001 1 3303809011367
41 215 65 43 21 18 810 E 9011410001 1 3303809011411
46 243,5 73,5 48 23 20 975 E 9011460001 1 3303809011466
50 245 78,5 48 24 20 980 E 9011500001 1 3303809011503
55 270 86,5 56 25 22 1750 E 9011550001 1 3303809011558
60 272 89,5 56 27 22 1960 E 9011600001 1 3303809011602
65 300 102,5 62 29 26 2180 E 9011650001 1 3303809011657
70 305 108,5 62 33 26 2400 E 9011700001 1 3303809011701
75 330 113,5 68 34 30 2775 E 9011750001 1 3303809011756
80 348 124,5 68 36 30 3150 E 9011800001 1 3303809011800
85 360 128,5 78 37 32 4860 E 9011850001 1 3303809011855
90 379 148 78 40 32 5680 E 9011900001 1 3303809011909
95 395 150,5 87 40,5 36 6500 E 9011950001 1 3303809011954
100 405 153,5 87 44,5 36 7830 E 9011990001 1 3303809011992
