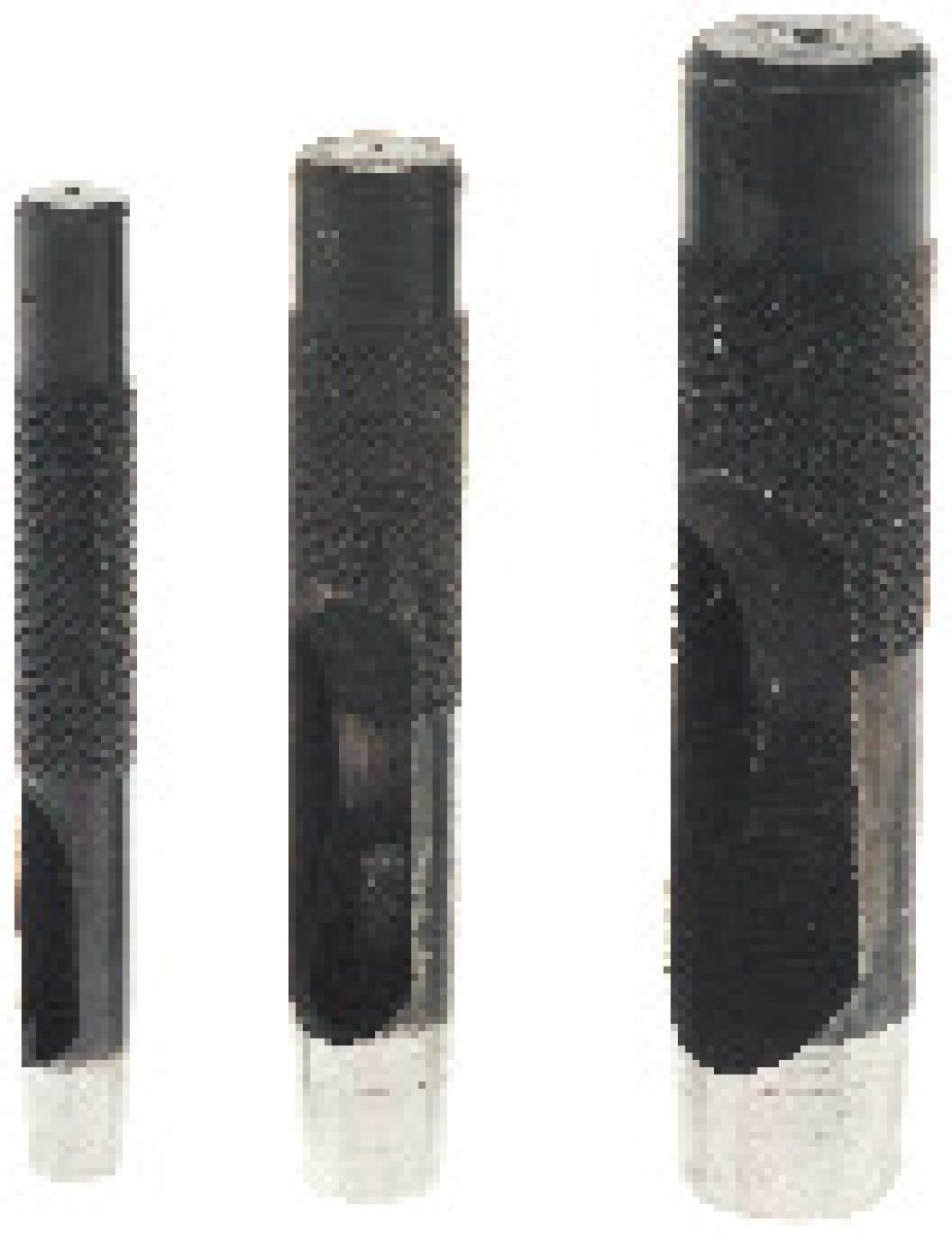

Round hollow punches
The resistance of the tubes is between 162 and 180 kg / mm2. These can be used for the cutting of soft materials (rubber, leather, felt, foam, Teflon, ...) as for ...
HD Images
- The resistance of the tubes is between 162 and 180 kg / mm2.
- These can be used for the cutting of soft materials (rubber, leather, felt, foam, Teflon, ...) as for that of materials reinforced with fiberglass or steel ...
- (up to 0, 3 mm).
- Knock the end with a mallet or rubber mallet.
- Striking area: forged and tempered.
- Heat treatment: hardness 52 HrC.
- Chamfer anti-shine.
- Cut: lateral opening Hardness 52 HrC.
- Finishing: phosphated surfaces.
- Knurl of 50 mm wide on the periphery.
- Dimension indicated by a durable cold stamped marking..
| Ø mm |  g | G |  | ||
|---|---|---|---|---|---|
| 2 | E | 8017020001 | 1 | 3303808017025 | |
| 3 | E | 8017030001 | 1 | 3303808017032 | |
| 4 | E | 8017040001 | 1 | 3303808017049 | |
| 5 | E | 8017050001 | 1 | 3303808017056 | |
| 6 | E | 8017060001 | 1 | 3303808017063 | |
| 7 | E | 8017070001 | 1 | 3303808017070 | |
| 8 | E | 8017080001 | 1 | 3303808017087 | |
| 9 | E | 8017090001 | 1 | 3303808017094 | |
| 10 | E | 8017100001 | 1 | 3303808017100 | |
| 11 | E | 8017110001 | 1 | 3303808017117 | |
| 12 | E | 8017120001 | 1 | 3303808017124 | |
| 13 | E | 8017130001 | 1 | 3303808017131 | |
| 14 | E | 8017140001 | 1 | 3303808017148 | |
| 15 | E | 8017150001 | 1 | 3303808017155 | |
| 16 | E | 8017160001 | 1 | 3303808017162 | |
| 17 | E | 8017170001 | 1 | 3303808017179 | |
| 18 | E | 8017180001 | 1 | 3303808017186 | |
| 19 | E | 8017190001 | 1 | 3303808017193 | |
| 20 | E | 8017200001 | 1 | 3303808017209 | |
| 22 | E | 8017220001 | 1 | 3303808017223 | |
| 24 | E | 8017240001 | 1 | 3303808017247 | |
| 25 | E | 8017250001 | 1 | 3303808017254 |
