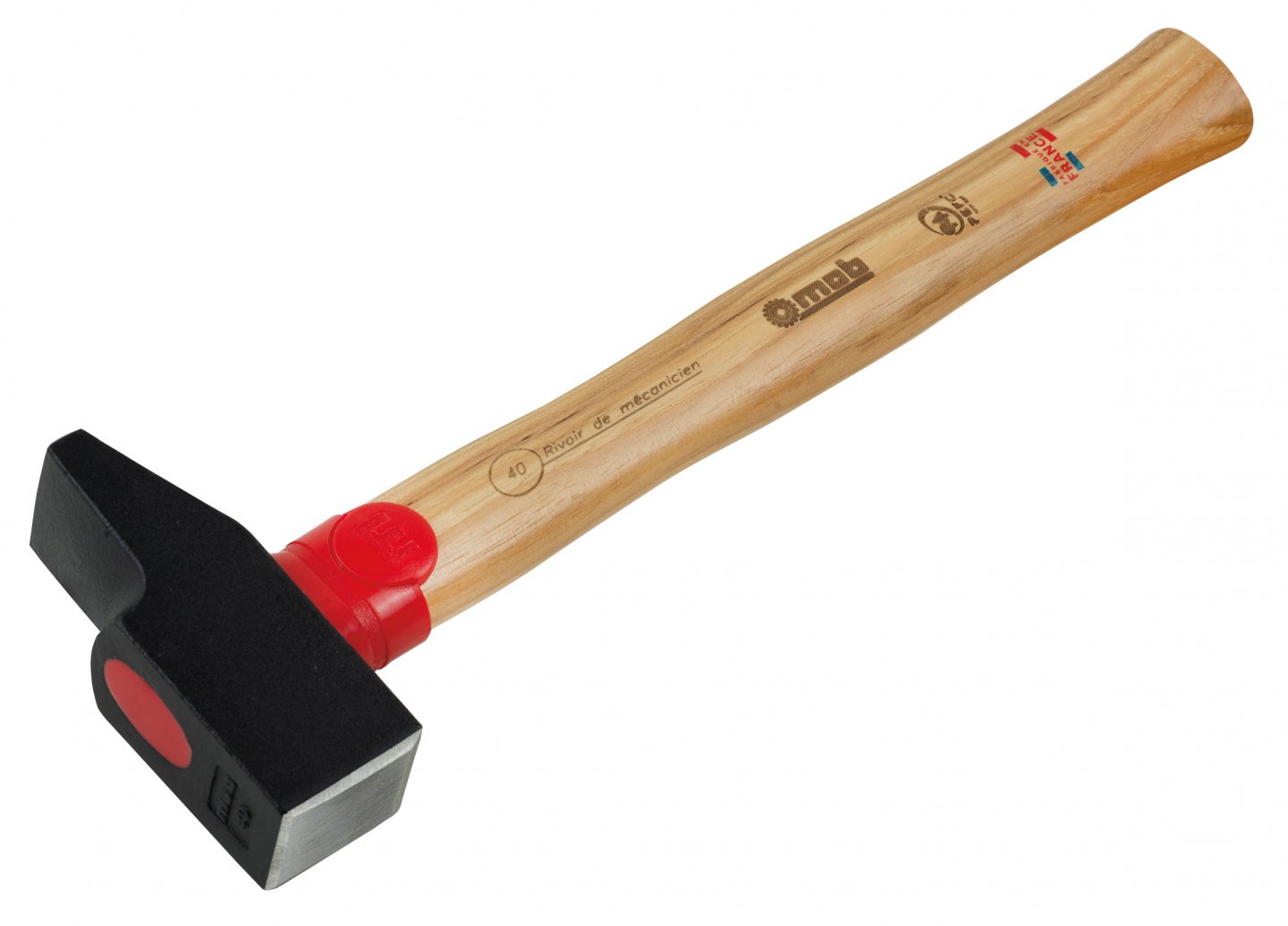

Engineer's hammer - wood handle

Initially used by mechanics, who seek both power and precision. C45E high carbon steel head. Forged head, with heat treatment by induction of working surfaces (54 ...
Learn more
Engineer's hammer - wood handle
Engineer's hammer - wood handle 02
Engineer's hammer - wood handle 03
Engineer's hammer - wood handle 04
Engineer's hammer - wood handle 05
Engineer's hammer - wood handle
Engineer's hammer - wood handle 02
Engineer's hammer - wood handle 03
Engineer's hammer - wood handle 04
Engineer's hammer - wood handle 05
HD Images
  • Initially used by mechanics, who seek both power and precision.
  • C45E high carbon steel head.
  • Forged head, with heat treatment by induction of working surfaces (54 HRC).
  • Finely polished working parts.Epoxy powder painting by electrostatic process, followed by baking.
  • 1/20th muzzle of the head at 45°.
  • COMFORT AND ERGONOMY: clear and well controlled impact.
  • It avoids any discordant movement which could damage the tool or the stricken part.
  • General balance: tool asymmetry with the eye to avoid any vibration around the eye which could react along the handle.
  • Hands and arms: do not suffer from any lateral deviation or rebound.
  • The Rivoir engineer's hammer: easy rebound, less tiring.
  • More precision.
  • Working parts carefully polished.

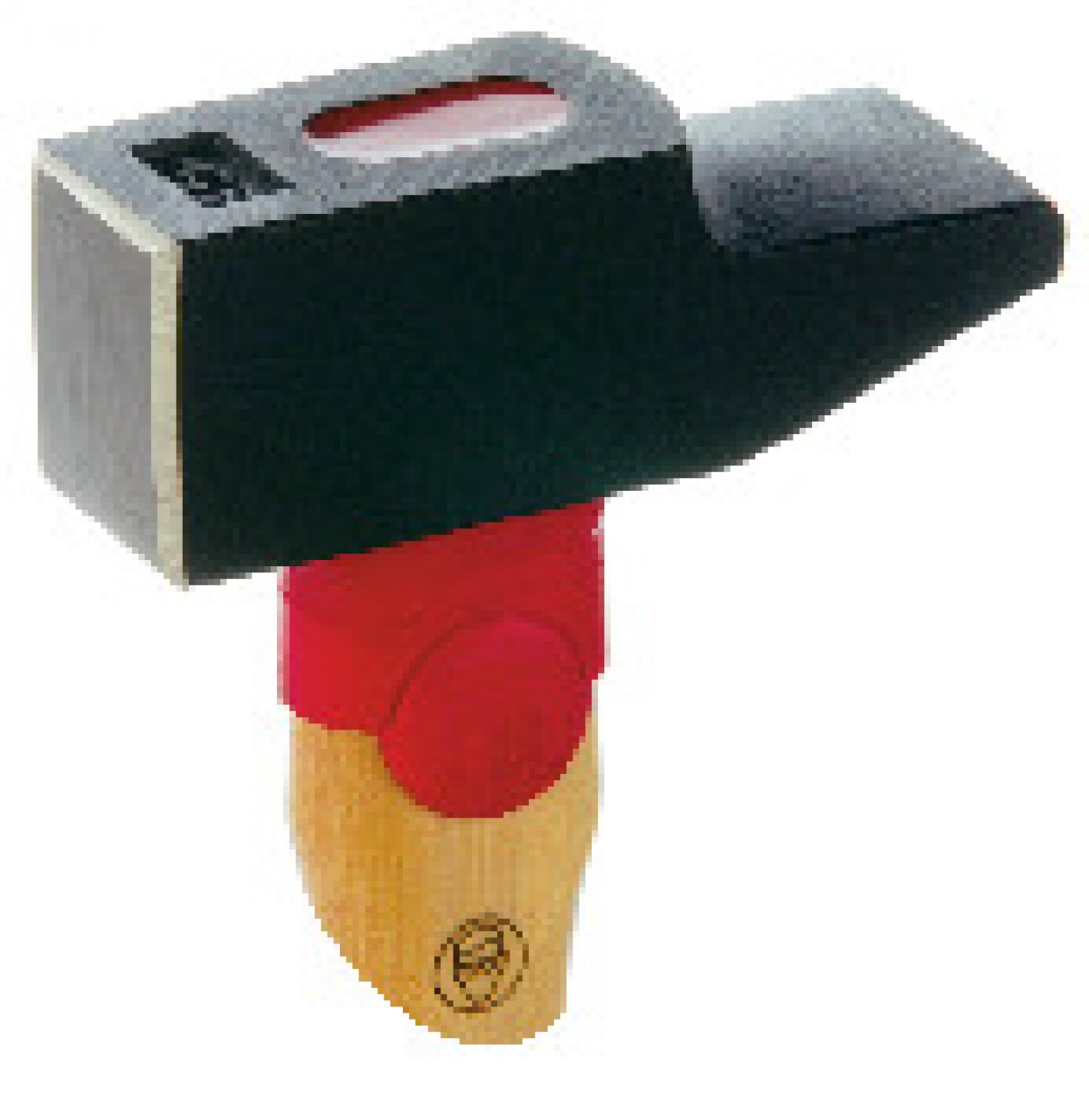

  • Red ring that signs the Mob hammer wooden handle.
  • Registered model.
  • Ash handle: high flexibility, contributing in particular to the whip and the absorption of vibrations.
  • PEFC label (from sustainably managed forests).
  • The nozzle is made by a hydraulic machine, a stress sensor measures on each product the power of the nozzle, then a pressure sensor controls the installation of the resin.
  • The pull-out performance is much higher than the standards and is the trademark of MOB tooling.
  • The tools manufactured by MOB are in compliance with French and international standards..

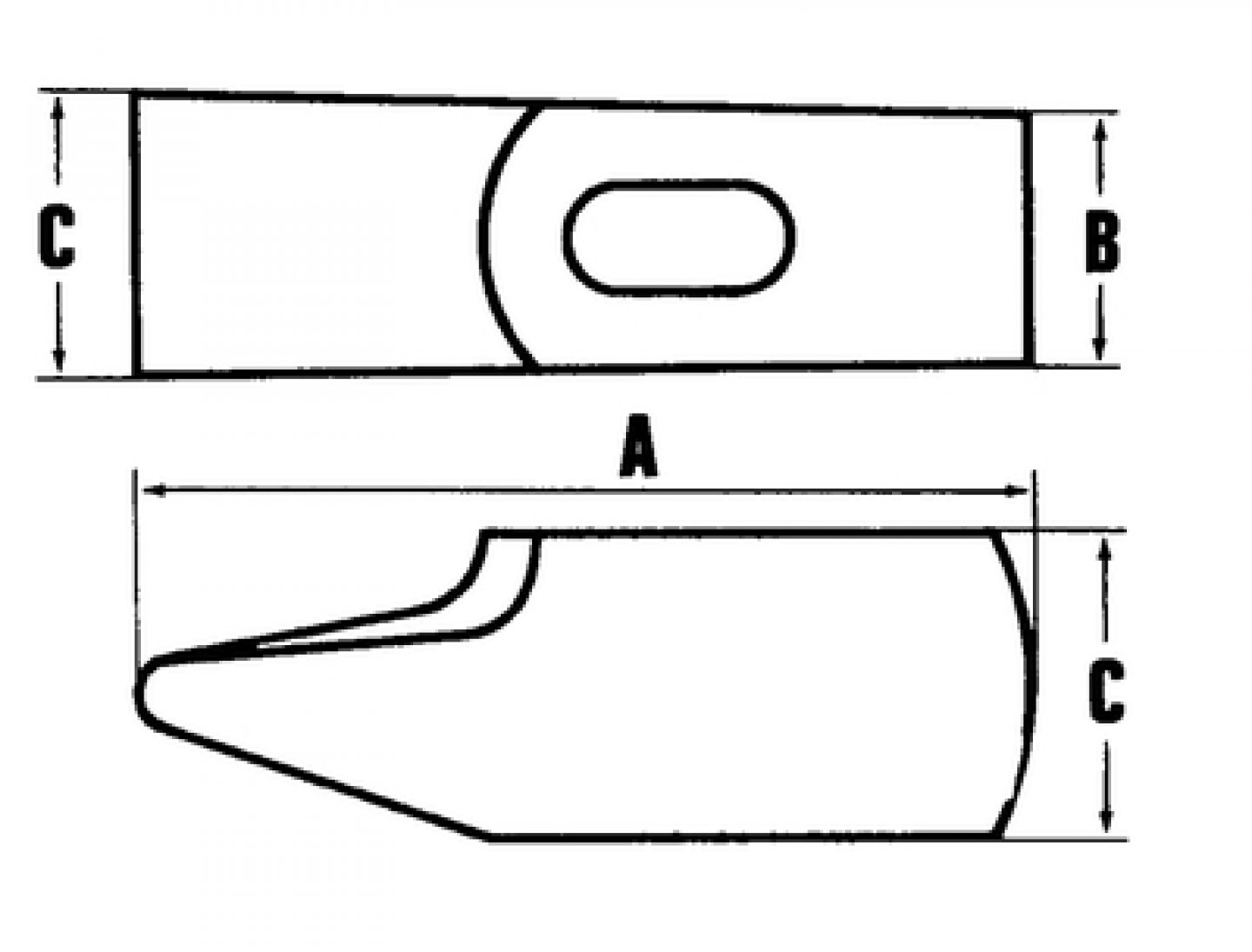

C mmB mmA mm gGL mmReplacement handle
18 14 68 100 G5 250 0001180201 6800 08 5 3303800001022
22 17 74 160 G10 250 0001220201 6800 10 5 3303800001060
24 19 77 200 G10 260 0001240201 6801 11 5 3303800001107
26 21 80 250 G10 260 0001260201 6801 11 5 3303800001152
28 22 86 315 G10 280 0001280201 6802 11 5 3303800001237
30 24 92 400 G10 280 0001300201 6803 12 5 3303800001329
32 26 100 500 G10 300 0001320201 6804 14 5 3303800001435
36 29 103 630 G10 300 0001360201 6805 15 5 3303800001497
40 33 110 800 G10 330 0001400201 6806 16 5 3303800001657
42 34 117 1000 G10 330 0001420201 6807 17 5 3303800001756
