Engineer's hammer - wood handle

French pattern. Initially used by mechanics, who seek both power and precision. C45E high carbon steel head. Forged head, with heat treatment by induction of working ...
Learn more

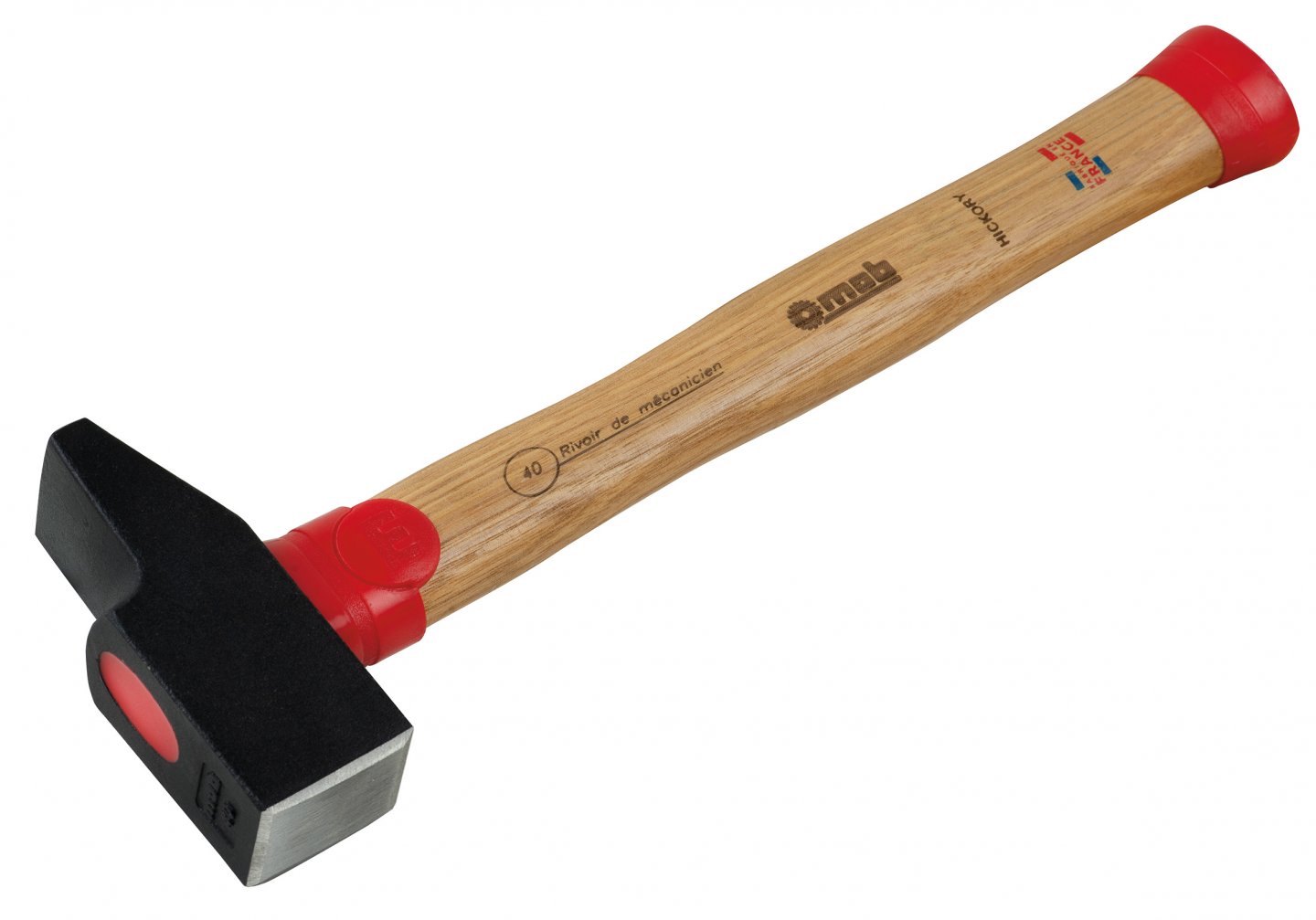

Engineer's hammer - wood handle

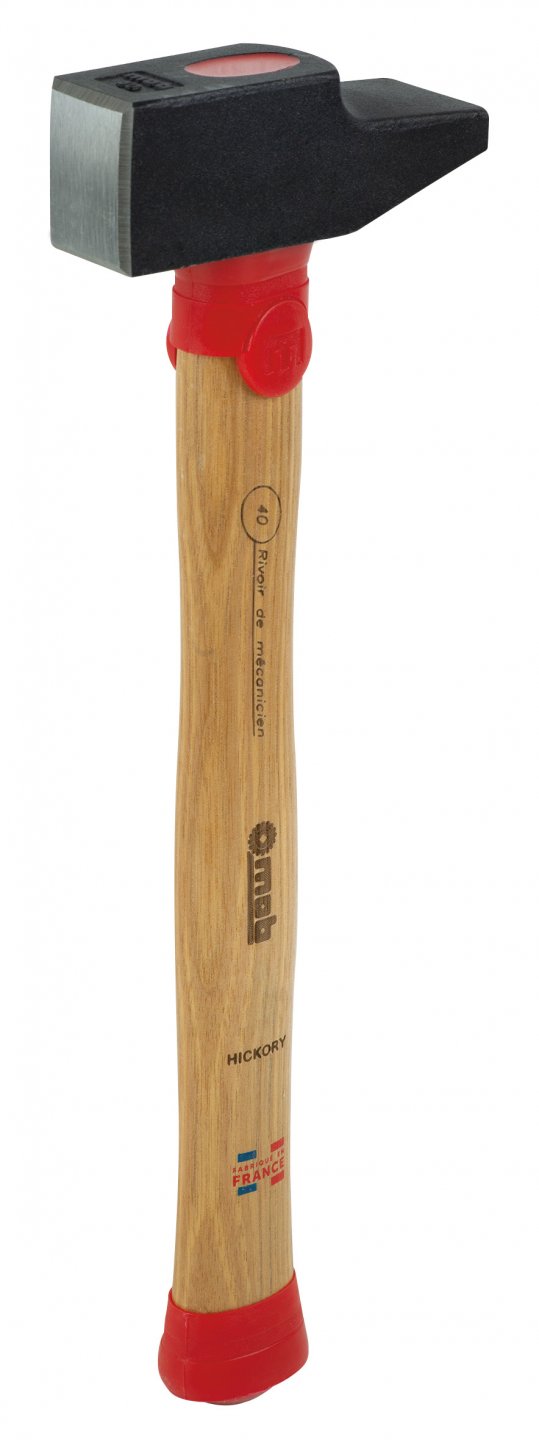

Engineer's hammer - wood handle 02
Engineer's hammer - wood handle 03
Engineer's hammer - wood handle 04
Engineer's hammer - wood handle
Engineer's hammer - wood handle 02
Engineer's hammer - wood handle 03
Engineer's hammer - wood handle 04
HD Images
  • French pattern.
  • Initially used by mechanics, who seek both power and precision.
  • C45E high carbon steel head.
  • Forged head, with heat treatment by induction of working surfaces (54 HRC).
  • Finely polished working parts.Epoxy powder painting by electrostatic process, followed by baking.
  • 1/20th muzzle of the head at 45°.
  • Red ring that signs the hammers Mob wooden handle.
  • Registered model.
  • Hickory handle: hardwood of high density, suitable for intensive or frequent use.
  • The nozzle is made by a hydraulic machine, a stress sensor measures on each product the power of the nozzle, then a pressure sensor controls the installation of the resin.
  • The pull-out performance is much higher than the standards and is the trademark of MOB tooling..

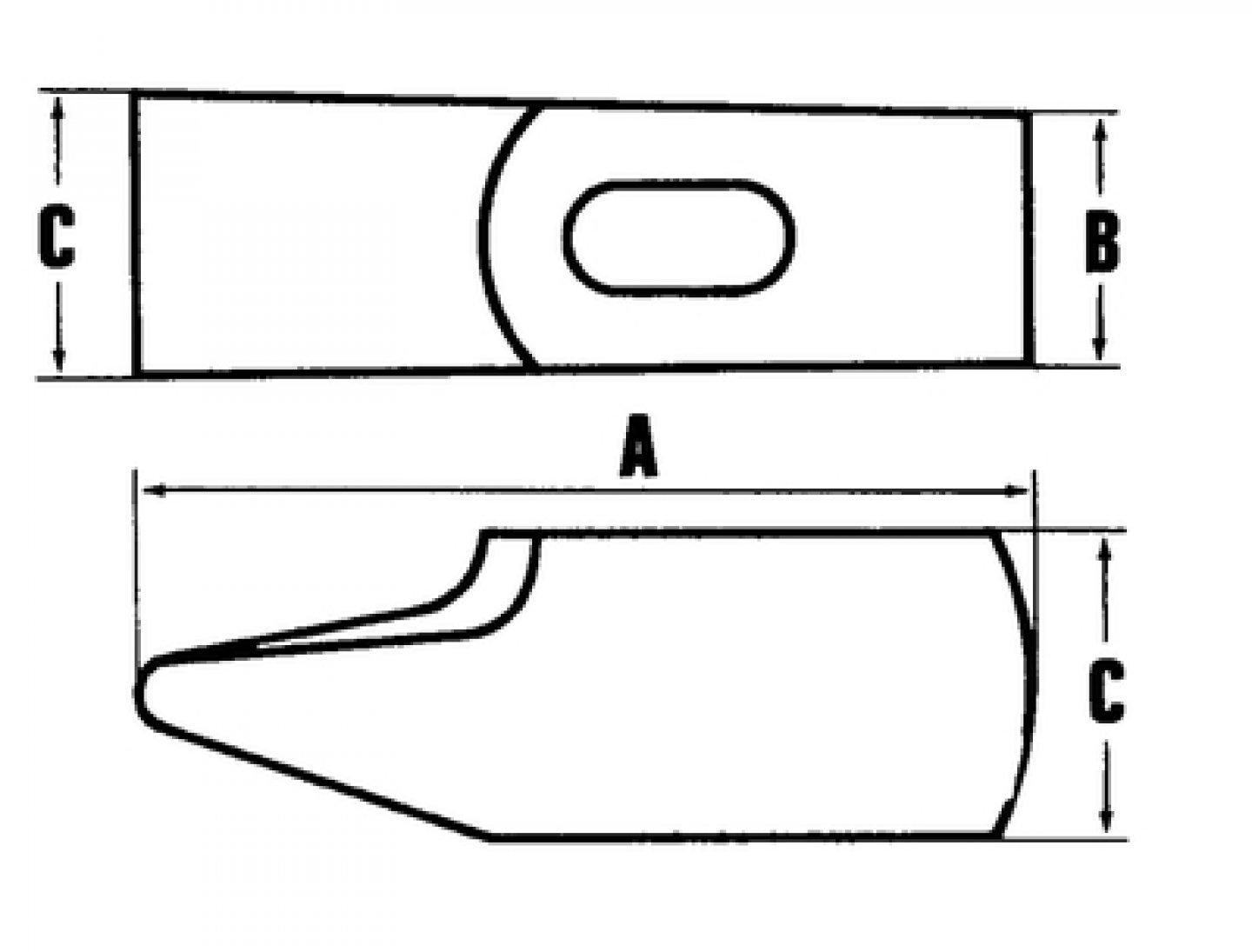

C mmB mmA mm gGL mmReplacement handle
26 21 80 250 G10 260 0001260301 6602 11 5 3303800001169
28 22 86 315 G10 280 0001280301 6603 11 5 3303800001244
30 24 92 400 G10 280 0001300301 6604 12 5 3303800001336
32 26 100 500 G10 300 0001320301 6605 14 5 3303800001442
36 29 103 630 G10 300 0001360301 6606 15 5 3303800001503
40 33 110 800 G10 330 0001400301 6607 16 5 3303800001664
42 34 117 1000 G10 330 0001420301 6608 16 5 3303800001763
