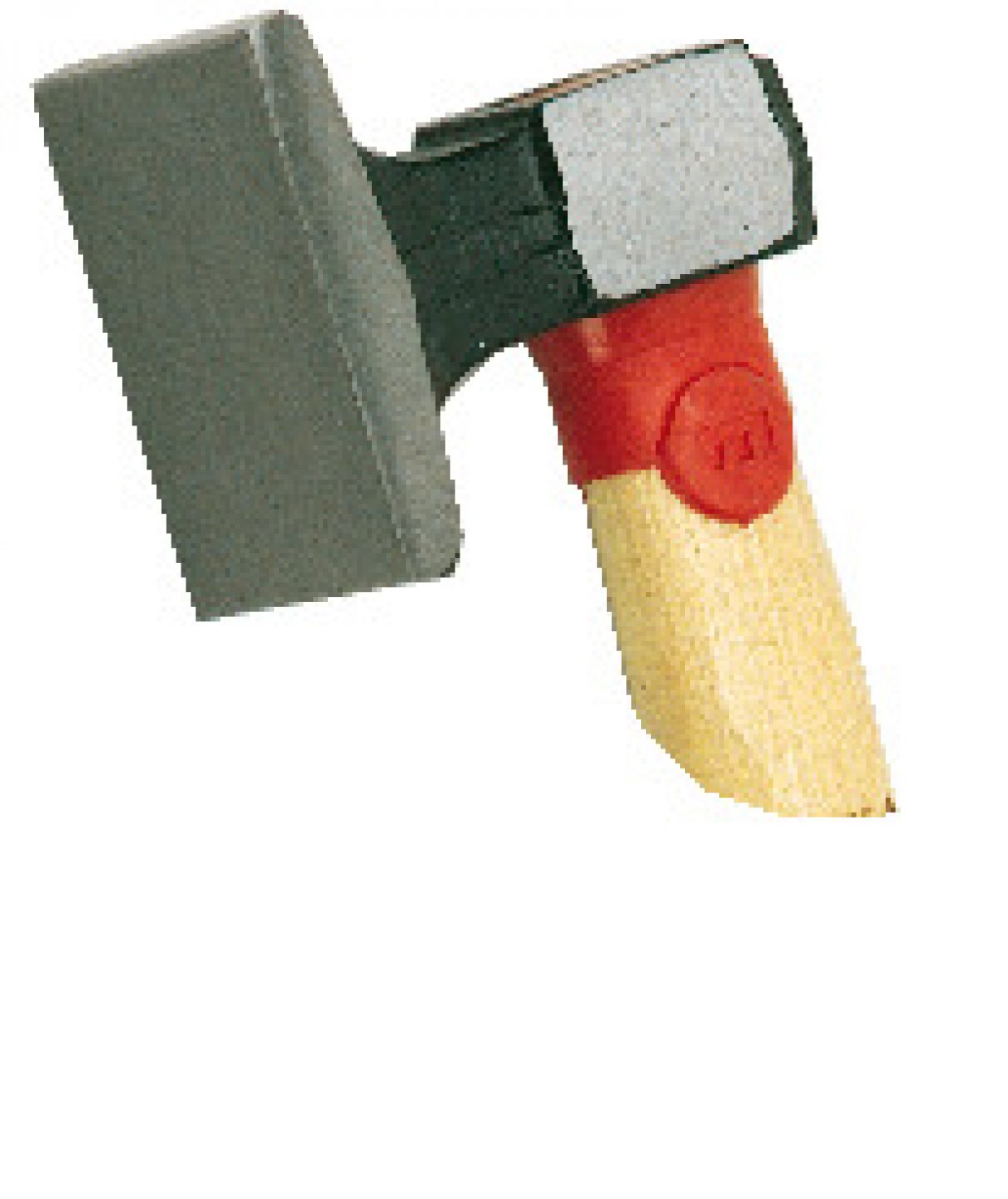

Dressing dolly
Flat shape. Dipped wide. High carbon steel head C45E. Forged head, with induction heat treatment of working surfaces (54 HRC). Working parts and finely polished ...
HD Images
- Flat shape.
- Dipped wide.
- High carbon steel head C45E.
- Forged head, with induction heat treatment of working surfaces (54 HRC).
- Working parts and finely polished cheeks.
- Epoxy powder paint by electrostatic process, followed by baking.
- Red ring that signs the hammers Mob wooden handle.
- Deposited model.
- Hickory handle, from North America.
- Essence with recognized mechanical qualities and adapted to tool handles.
- Very high density.
- Superior mechanical resistance, especially to shocks.
- High flexibility, contributing notably to the whip and the absorption of vibrations.
- Pressed by a hydraulic machine, a force sensor measures on each product unitarily the power of fitting, then a pressure sensor controls the placement of the resin.
- Pullout performance is much higher than standard and is the hallmark of MOB tooling..
| C mm | B mm | A mm | L mm |  g | G | Replacement handle |  | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 30 | 65 | 280 | 200 | G10 | 0300100301 | 6603 | 11 | 1 | 3303800330023 |
| 60 | 40 | 80 | 280 | 350 | G10 | 0300200301 | 6603 | 11 | 1 | 3303800330061 |
