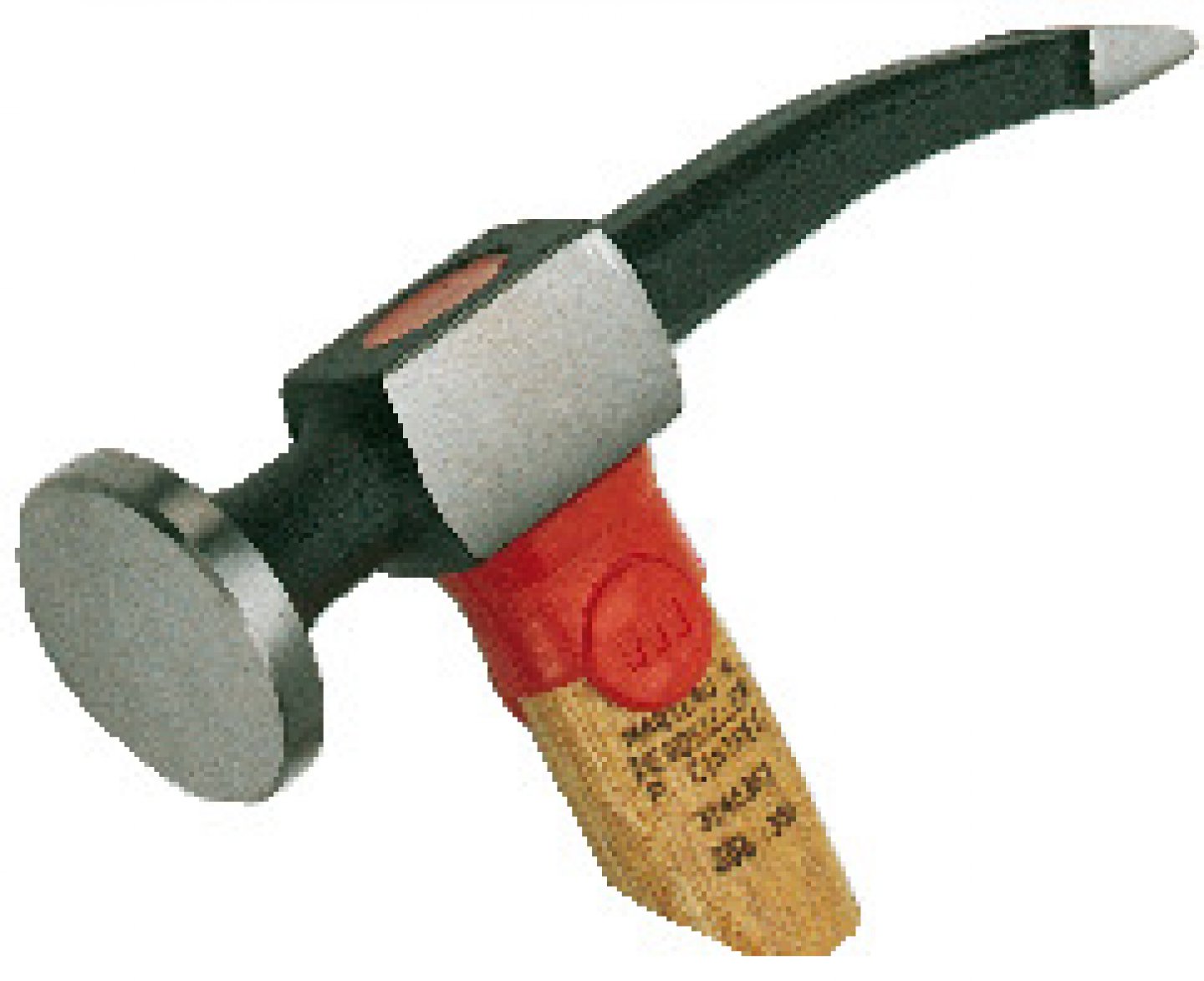

Finishing and grooving hammer
Curved failure. High carbon steel head C45E. Forged head, with induction heat treatment of working surfaces (54 HRC). Working parts and finely polished cheeks. Epoxy ...
HD Images
- Curved failure.
- High carbon steel head C45E.
- Forged head, with induction heat treatment of working surfaces (54 HRC).
- Working parts and finely polished cheeks.
- Epoxy powder paint by electrostatic process, followed by baking.
- Red ring that signs the hammers Mob wooden handle.
- Deposited model.
- Hickory handle, from North America.
- Essence with recognized mechanical qualities and adapted to tool handles.
- Very high density.
- Superior mechanical resistance, especially to shocks.
- High flexibility, contributing notably to the whip and the absorption of vibrations.
- Pressed by a hydraulic machine, a force sensor measures on each product unitarily the power of fitting, then a pressure sensor controls the placement of the resin.
- Pullout performance is much higher than standard and is the hallmark of MOB tooling..
| B mm | C mm | C1 mm | A mm | L mm |  g | G | Replacement handle |  | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 8 | 20 | 160 | 280 | 350 | G10 | 0314350301 | 6603 | 11 | 1 | 3303800314009 |
