Metal wedges for hammers

Corners to re-assemble straight hammers. HOW TO CHANGE A STRAIGHT HANDLING WOOD HANDLE: take the correspondent handle. Choose a wedge which enters the eye without ...
Learn more
Metal wedges for hammers
Metal wedges for hammers 02
Metal wedges for hammers
Metal wedges for hammers 02
HD Images
  • Corners to re-assemble straight hammers.
  • HOW TO CHANGE A STRAIGHT HANDLING WOOD HANDLE: take the correspondent handle.
  • Choose a wedge which enters the eye without getting out.
  • Rasp if handle does not enter into the eye (some adjustments must be made because MOB evolved its eyes and handles, during time).
  • If the handle passes the eye, than cut again before putting the wedges.
  • Put the wedge, using a hammer, until the handle is fixed in the eye.
  • For club hammers put 2 metallic wedges, one near the other.
  • The wedges must not overpass the handle.
  • N.B : handling done by users is no more guaranteed by MOB..

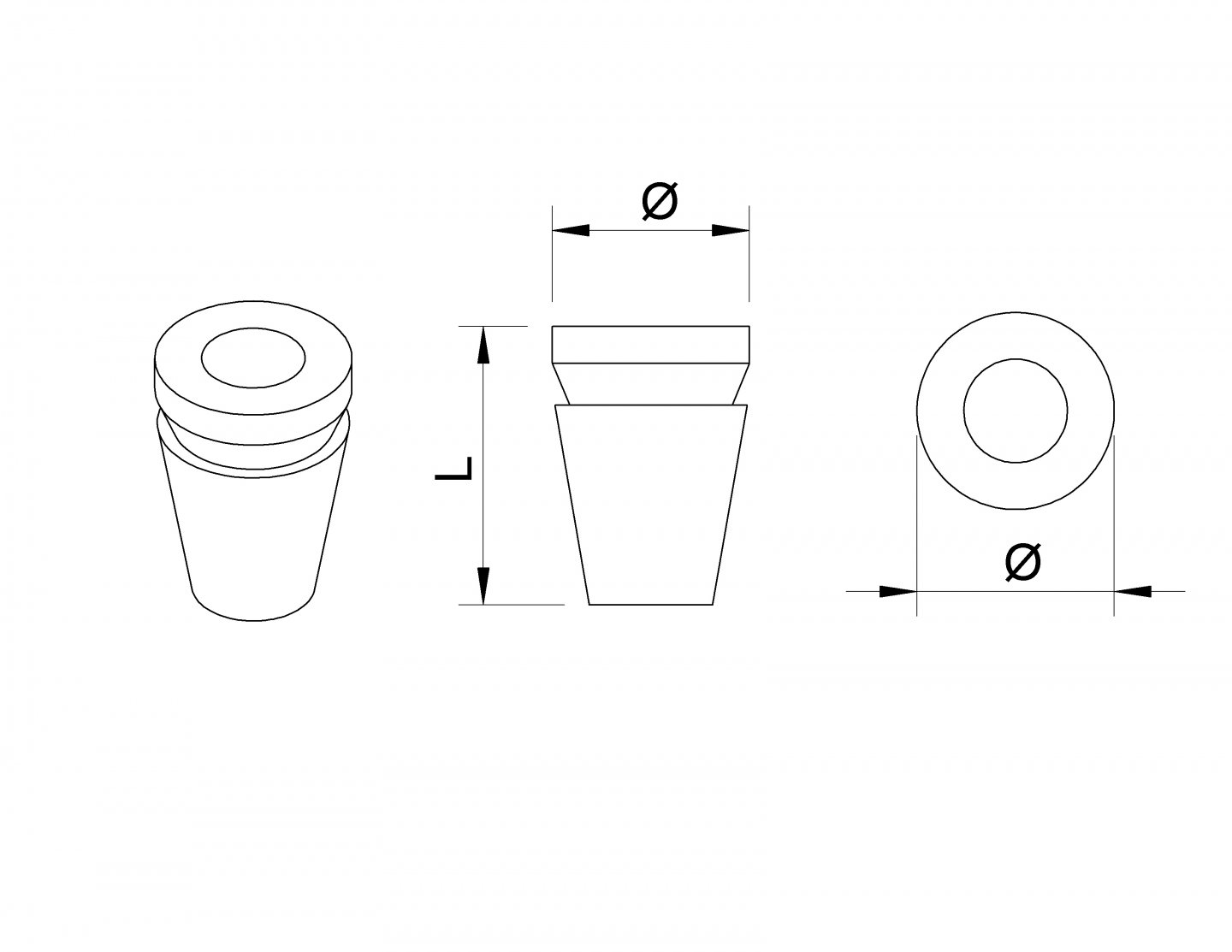

Ø mmforNb piecesL mmG g
08 Riv. 18 - garnir 18 - élec. 16 - men. 16 x 10 11.3 E 6978081001 1 20 3303806003167
09 Garnir 22 - élec 18 et 20 - men. 20 x 10 13 E 6978091001 1 27 3303806003174
10 Riv. 22 x 10 15 E 6978101001 1 35 3303806003198
11 Riv. 24, 26 et 28 - garnir 26 et 28 - men. 22, 24 et 26 - p. soud. 0,3kg x 10 17.3 E 6978111001 1 40 3303806003211
12 Riv. 30 - p. soud. 0,4kg- garnir 30 x 10 18.8 E 6978121001 1 60 3303806003228
13 Garnir 32 et 36 x 10 19 E 6978131001 1 75 3303806003235
14 Riv. 32 - men. 28 et 30 - p. soud. 0,5kg x 10 20.3 E 6978141001 1 90 3303806003242
15 Riv. 36 - men. 32 - garnir 40 - p. soud. 0,6kg x 10 21.8 E 6978151001 1 110 3303806003259
16 Riv. 40 - men. 36 x 10 24 E 6978161001 1 140 3303806003266
17 Riv. 42 et 45 x 10 25 E 6978171001 1 160 3303806003273
18 Riv. 50 et plus x 10 25 E 6978181001 1 200 3303806003280
