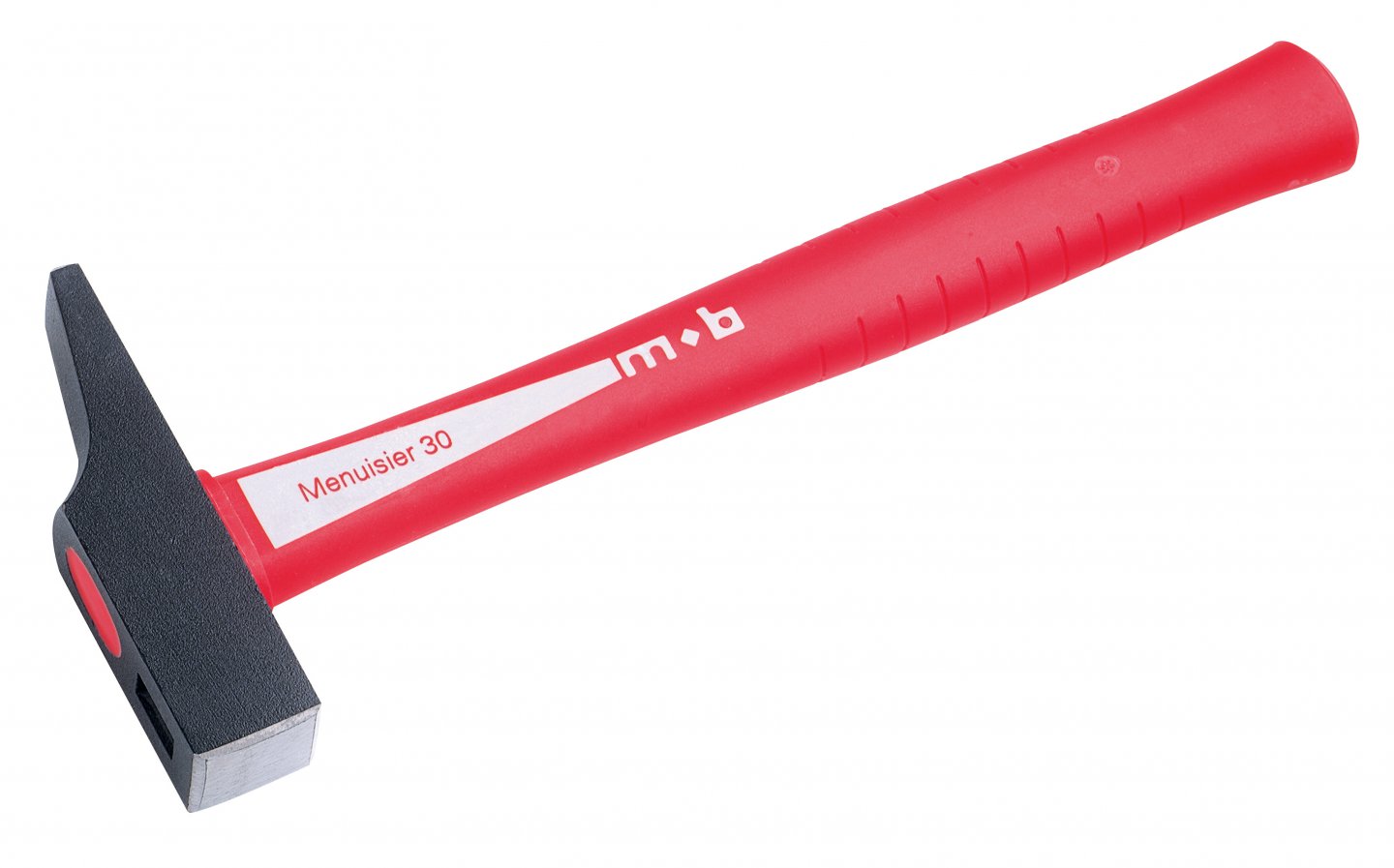

Joiner's hammer - composite
For joiner work, assembly of wood pieces. QUALITY: Carbon steel head. Forged head, induction-hardened working surfaces (54 HRC). Polished working parts. Epoxy powder ...
HD Images
- For joiner work, assembly of wood pieces.
- QUALITY: Carbon steel head.
- Forged head, induction-hardened working surfaces (54 HRC).
- Polished working parts.
- Epoxy powder paint by electrostatic process, followed by baking.
- Chamfer 1 / 20th of the head at 45 °.
- The connection between the head and steel is made by a hydraulic machine.
- A stress sensor measures on each product the power of the nozzle, then a pressure sensor controls the installation of the resin.
- Unbreakable handle, made of 3 components: glass fibres, polypropylene and elastomer.
- Resistant.
- Optimal grip.
- Extraordinary high performance..

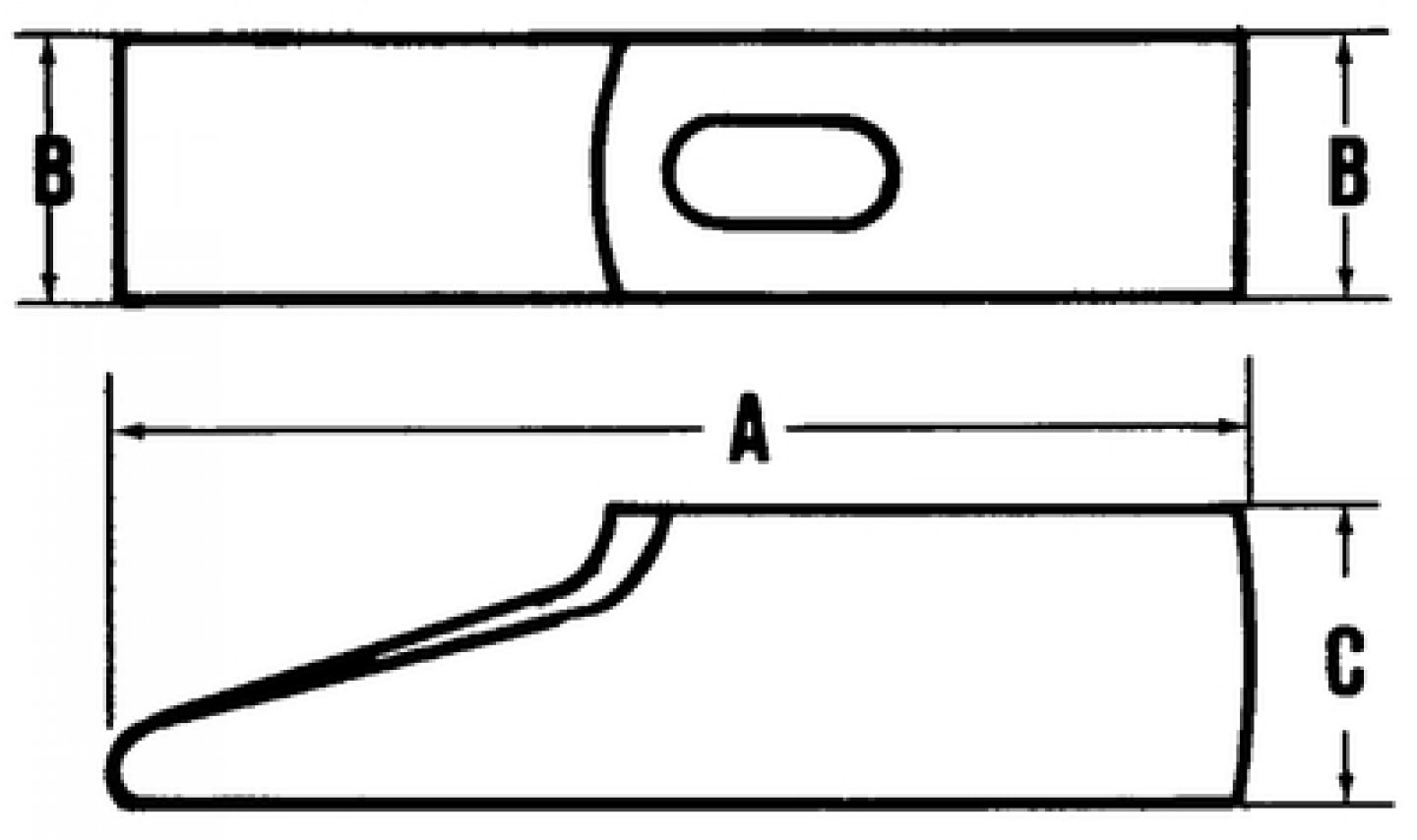

| C mm | B mm | A mm |  g | G | L mm |  | ||
|---|---|---|---|---|---|---|---|---|
| 24 | 20 | 103 | 250 | E | 286 | 0400240A01 | 5 | 3303800400399 |
| 30 | 26 | 122 | 500 | E | 320 | 0400300A01 | 5 | 3303800400627 |
