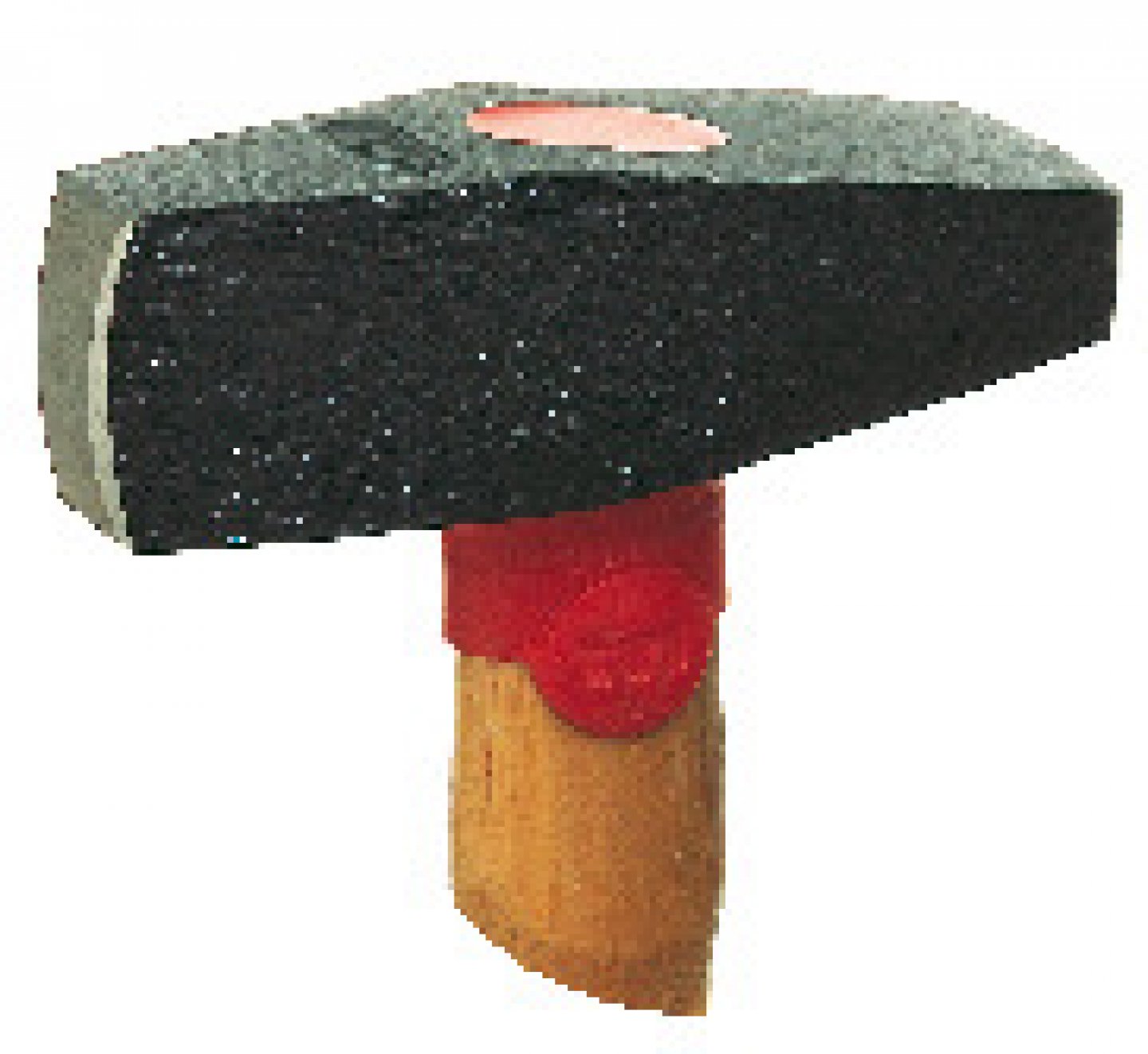

Saw planisching hammer
Used initially to glide saws. High carbon steel head C45E. Forged head, with induction heat treatment of working surfaces (54 HRC). Working parts curved, finely ...
HD Images
- Used initially to glide saws.
- High carbon steel head C45E.
- Forged head, with induction heat treatment of working surfaces (54 HRC).
- Working parts curved, finely polished.Powder epoxy powder by electrostatic process, followed by baking.
- 2 chamfers at 45 °.
- Red ring that signs the hammers Mob wooden handle.
- Deposited model.
- Hickory handle: hardwood of high density, suitable for intensive or frequent use.
- Pressed by a hydraulic machine, a force sensor measures on each product unitarily the power of fitting, then a pressure sensor controls the placement of the resin.
- Pullout performance is much higher than standard and is the hallmark of MOB tooling..
| A mm | B mm | C mm | L mm |  g | G | Replacement handle |  | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 130 | 20 | 40 | 315 | 1000 | G10 | 0263100301 | 6607 | 16 | 1 | 3303800263024 |
