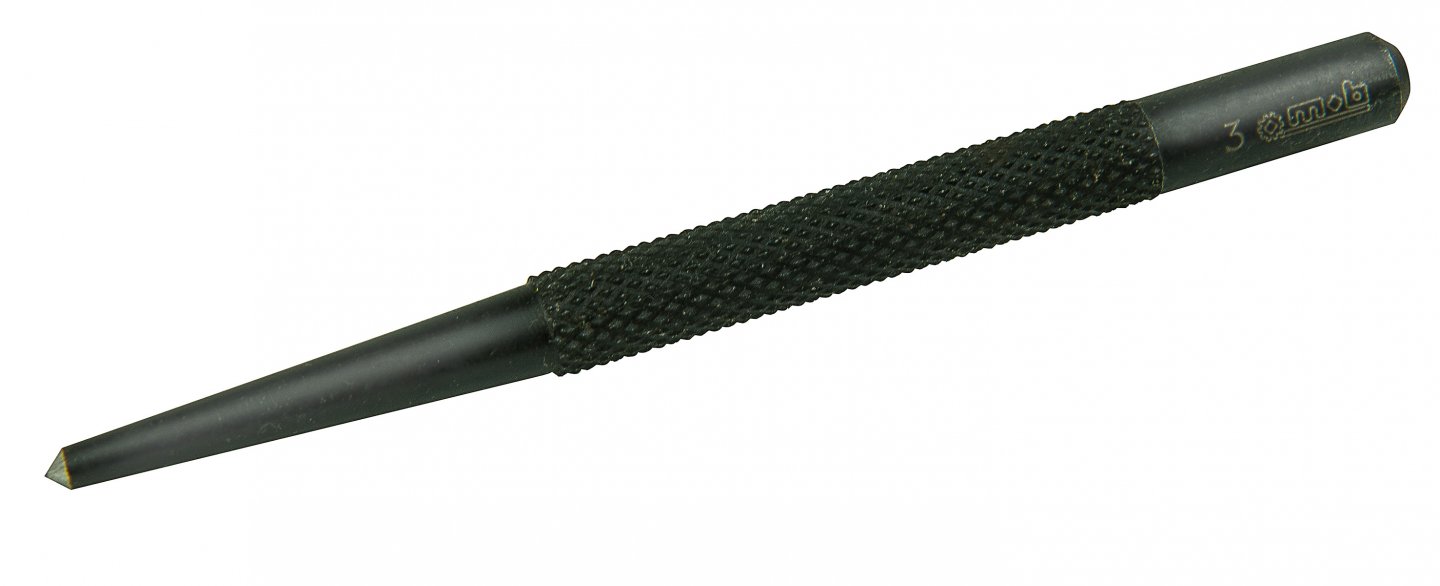

Centre punch
Chrome Vanadium steel. Forged. Hardness: 52 to 58 HRc. Presentation: knurled body for the grip. Finish: burnished.
HD Images
- Chrome Vanadium steel.
- Forged.
- Hardness: 52 to 58 HRc.
- Presentation: knurled body for the grip.
- Finish: burnished..

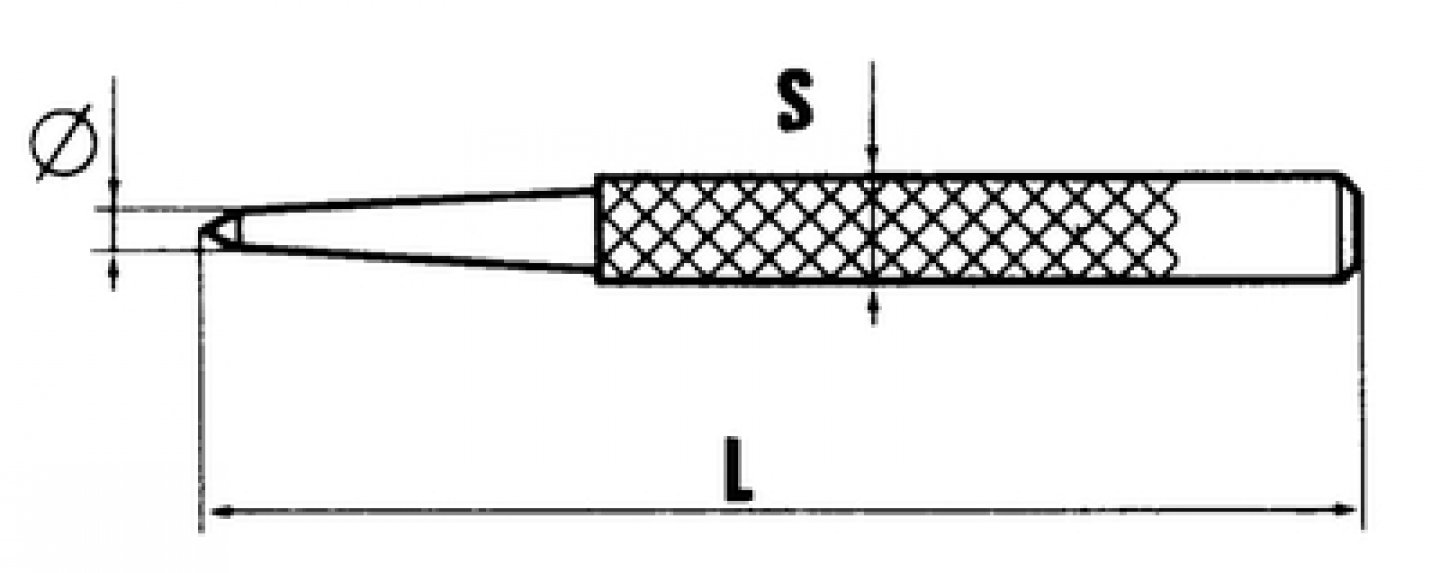

| Ø mm | S mm | L mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|
| 2,5 | 7 | 100 | 20 | E | 7253020010 | 10 | 3303807253011 |
| 3 | 7 | 100 | 20 | E | 7253030010 | 10 | 3303807253028 |
| 4 | 8 | 100 | 30 | E | 7253040010 | 10 | 3303807253035 |
| 6 | 10 | 115 | 60 | E | 7253060010 | 10 | 3303807253042 |
| 8 | 12 | 130 | 100 | E | 7253080010 | 10 | 3303807253059 |
