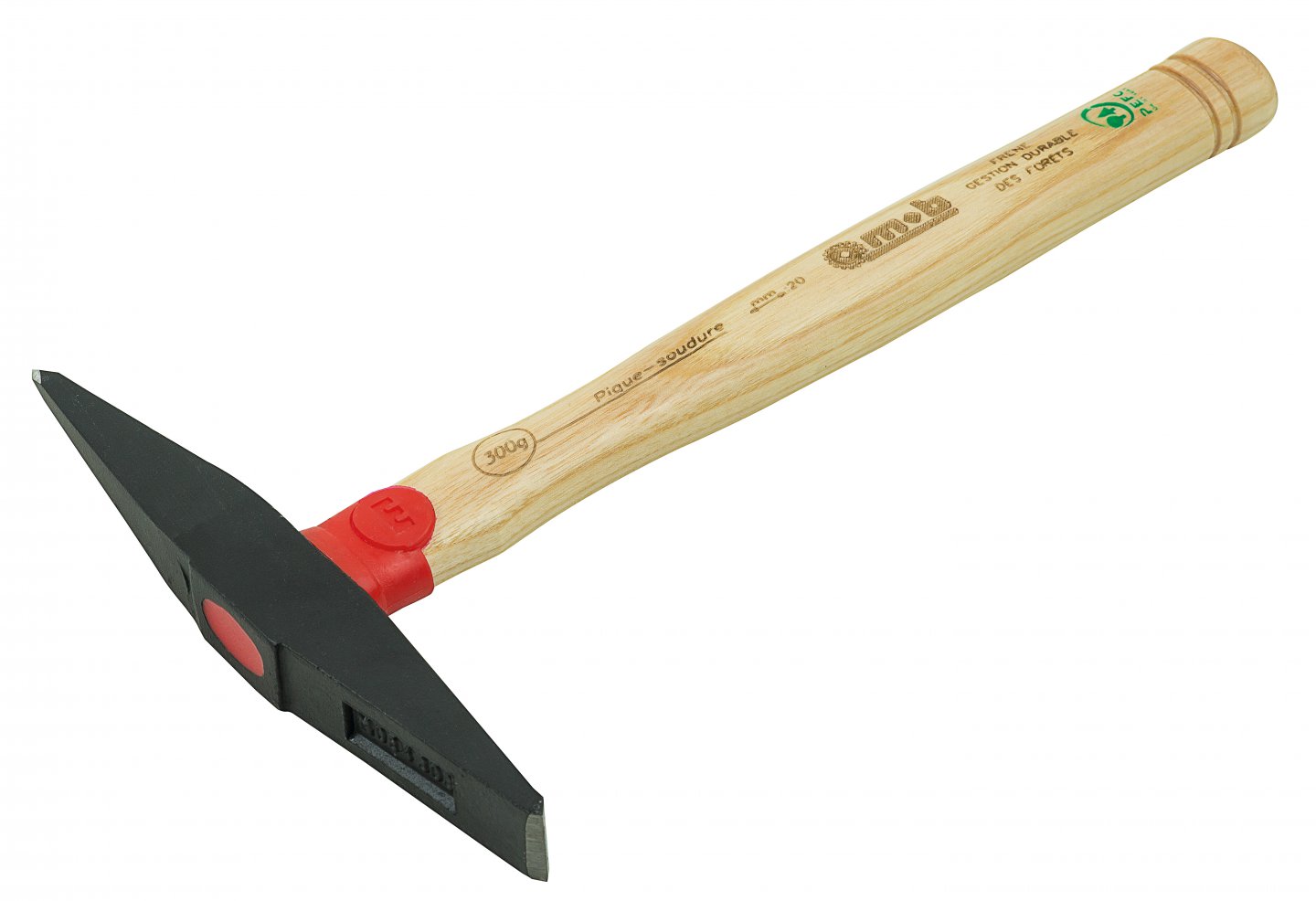

Hammer for electric welders - wood handle
To remove welding slag. Forged head, induction-treated working surfaces (54 HRC). Polished working parts. Epoxy powder paint by electrostatic process, followed by ...
HD Images
- To remove welding slag.
- Forged head, induction-treated working surfaces (54 HRC).
- Polished working parts.
- Epoxy powder paint by electrostatic process, followed by baking.
- A red ring marks the hammer's wooden handle.
- Registered design.
- European ash handle: flexible mechanical behavior, contributing notably to the force of the strikes and the absorption of vibrations.
- Labeling: PEFC-certified (wood from sustainably managed forests).
- The connection between the head and steel is made by a hydraulic machine.
- A stress sensor measures on each product the power of the nozzle, then a pressure sensor controls the installation of the resin.
- Extraordinary high performance..

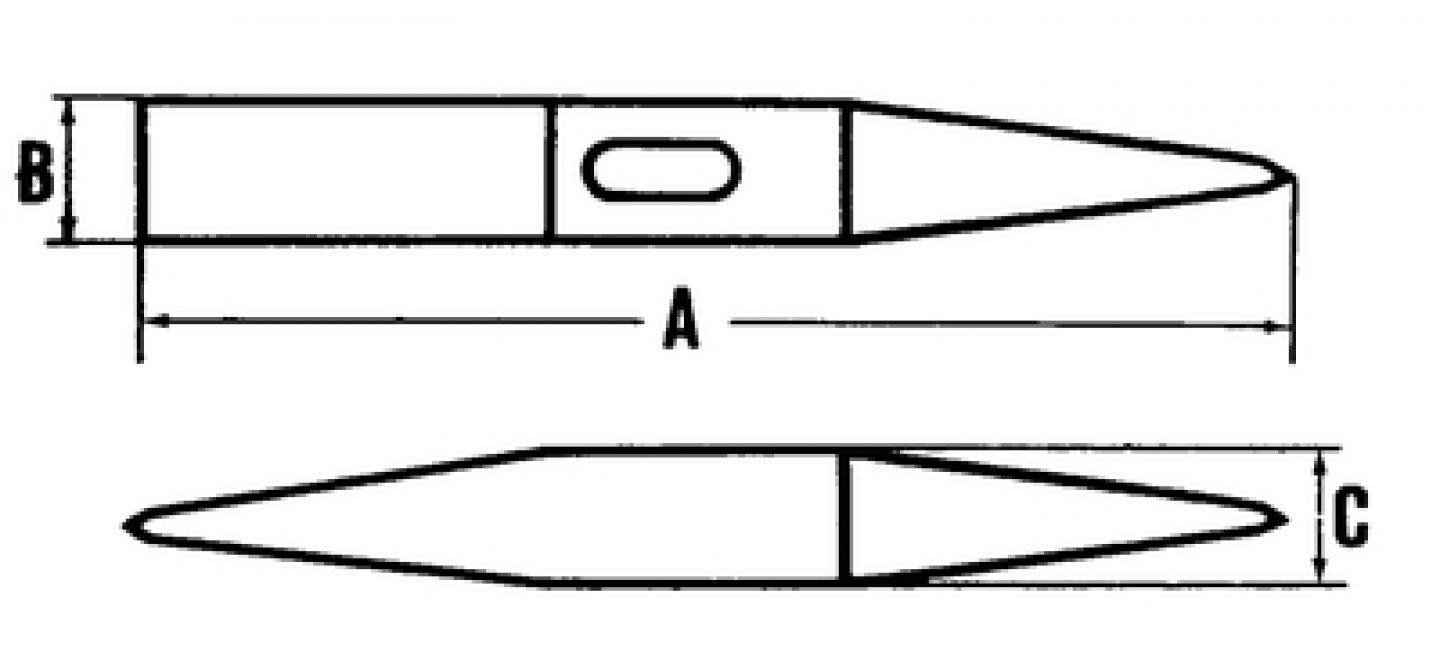

| A mm | B mm | C mm |  g | G | L mm | Replacement handle |  | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 175 | 20 | 22 | 300 | G10 | 280 | 0430300201 | 6802 | 11 | 1 | 3303800292024 |
| 185 | 22 | 24 | 400 | G10 | 280 | 0430400201 | 6803 | 12 | 1 | 3303800292086 |
| 200 | 23 | 25 | 500 | G10 | 300 | 0430500201 | 6804 | 14 | 1 | 3303800292130 |
