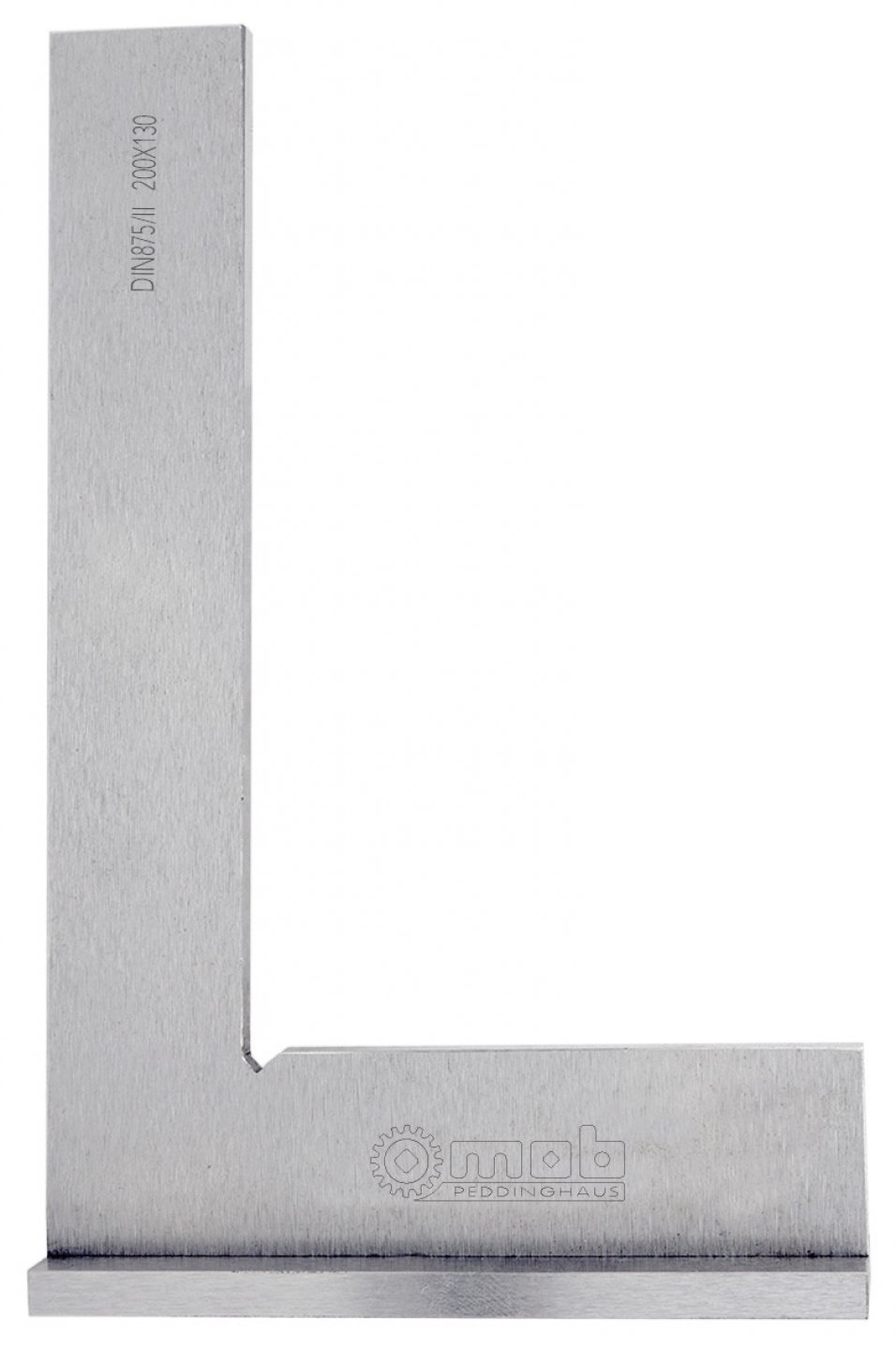

Flanged precision square, class i, 1/50
Class I : for precision mechanical industry. Accuracy 1/50th. Screwed flange. NF E-11 103 / DIN 875
HD Images
- Class I : for precision mechanical industry.
- Accuracy 1/50th.
- Screwed flange.
- NF E-11 103 / DIN 875.
| Dimensions mm | P mm | E mm | E1 mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|
| 150x100 | 25 | 5,5 | 25 | 355 | 5224150001 | 1 | 3303800011328 | |
| 200x130 | 29,5 | 7,3 | 29,5 | 710 | 5224200001 | 1 | 3303800011335 | |
| 300x180 | 40 | 9,2 | 40 | 1880 | 5224300001 | 1 | 3303800011359 |
