Flanged precision squares, class ii, 1/25
Class II : for general mechanical industry. Screwed flange. NF E-11 103 / DIN 875
HD Images
- Class II : for general mechanical industry.
- Screwed flange.
- NF E-11 103 / DIN 875.

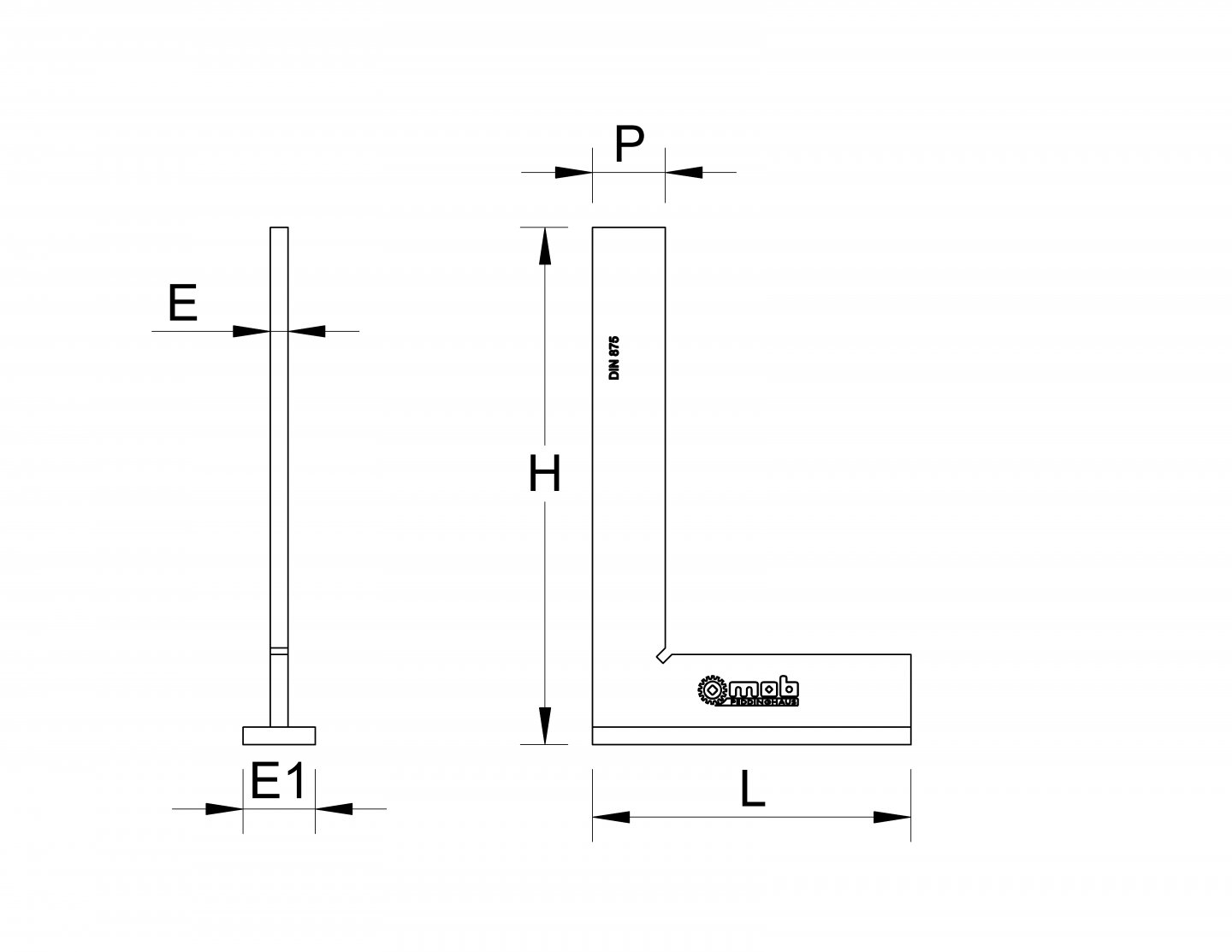

| Dimensions mm | P mm | E mm | E1 mm | Thickness mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 100x70 | 20 | 5,8 | 20 | 195 | 5225100001 | 1 | 3303800011267 | ||
| 150x100 | 25 | 5,8 | 25 | 355 | 5225150001 | 1 | 3303800011274 | ||
| 200x130 | 29,5 | 7,3 | 29,5 | 710 | 5225200001 | 1 | 3303800011281 | ||
| 250x165 | 35 | 7,3 | 35 | 1100 | 5225250001 | 1 | 3303800011298 | ||
| 300x180 | 40 | 9,2 | 40 | 1880 | 5225300001 | 1 | 3303800011304 |
