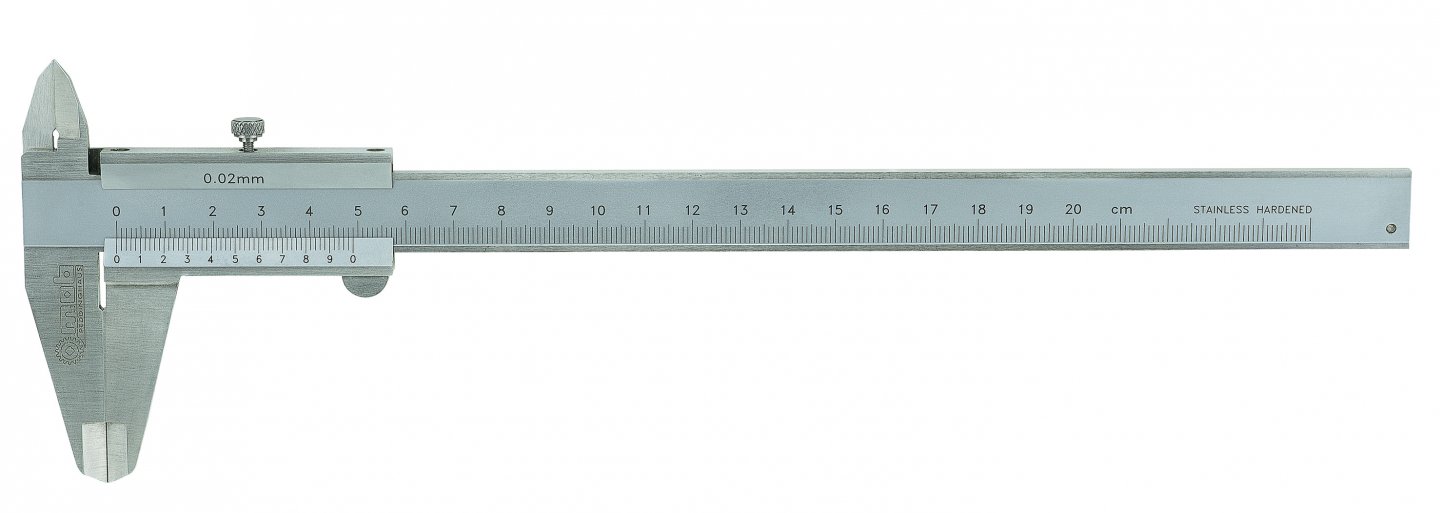

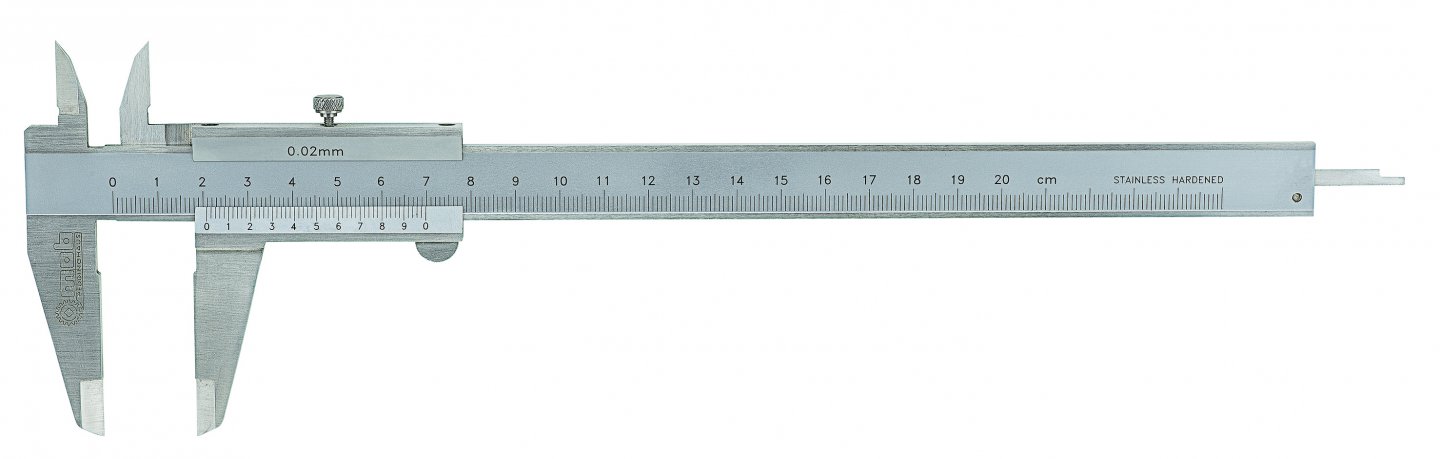

Vernier calipers - analogue
Resolution 0.02 mm - Inside-outside and depth measurements - Flat depth gauge - Stainless steel, mat finish - Vernier with a guiding zone and a clamping screw for ...
HD Images

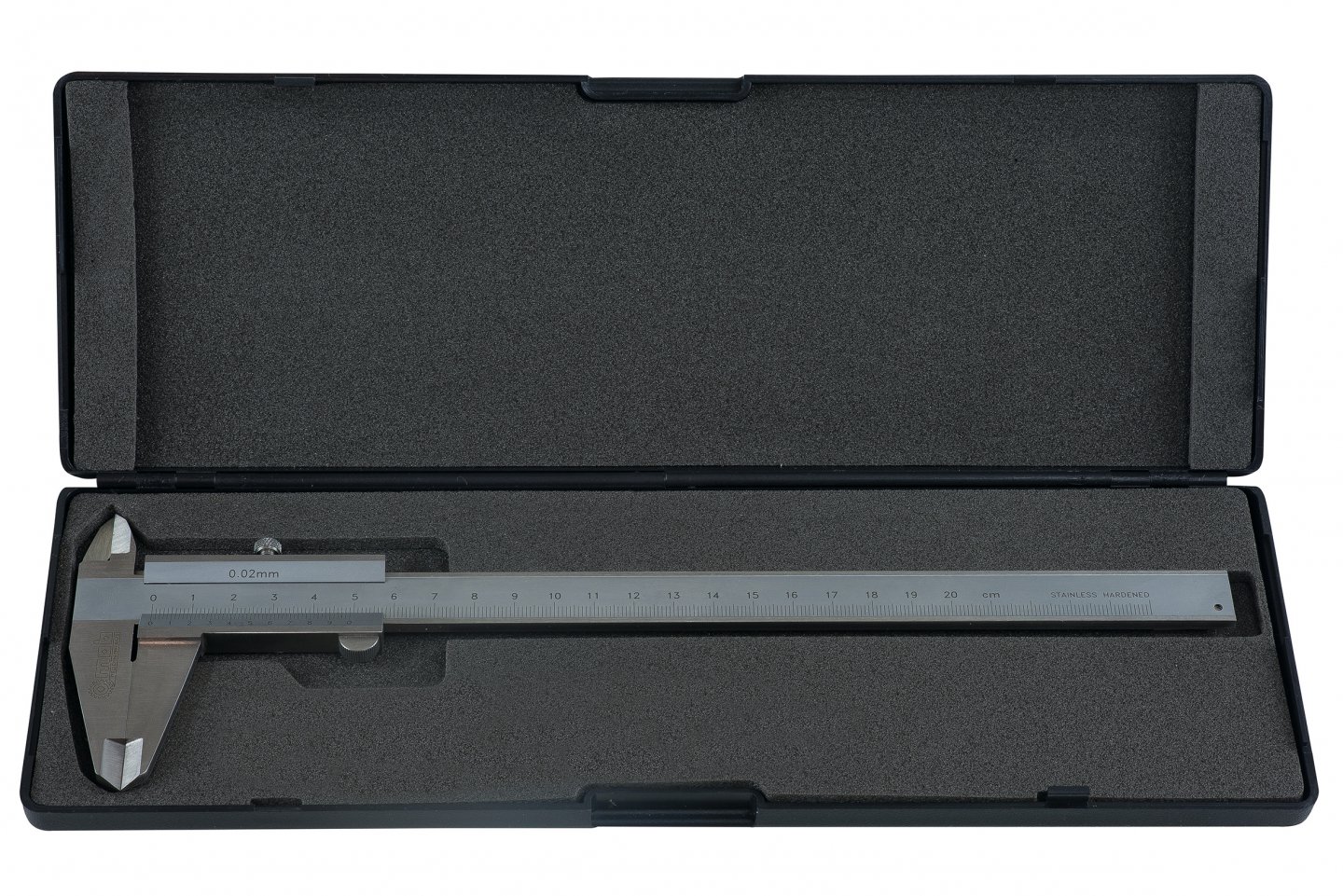

- Resolution 0.02 mm - Inside-outside and depth measurements - Flat depth gauge - Stainless steel, mat finish - Vernier with a guiding zone and a clamping screw for a good reliability of the measurement - Delivered in a plastic case with a compliance certificate.

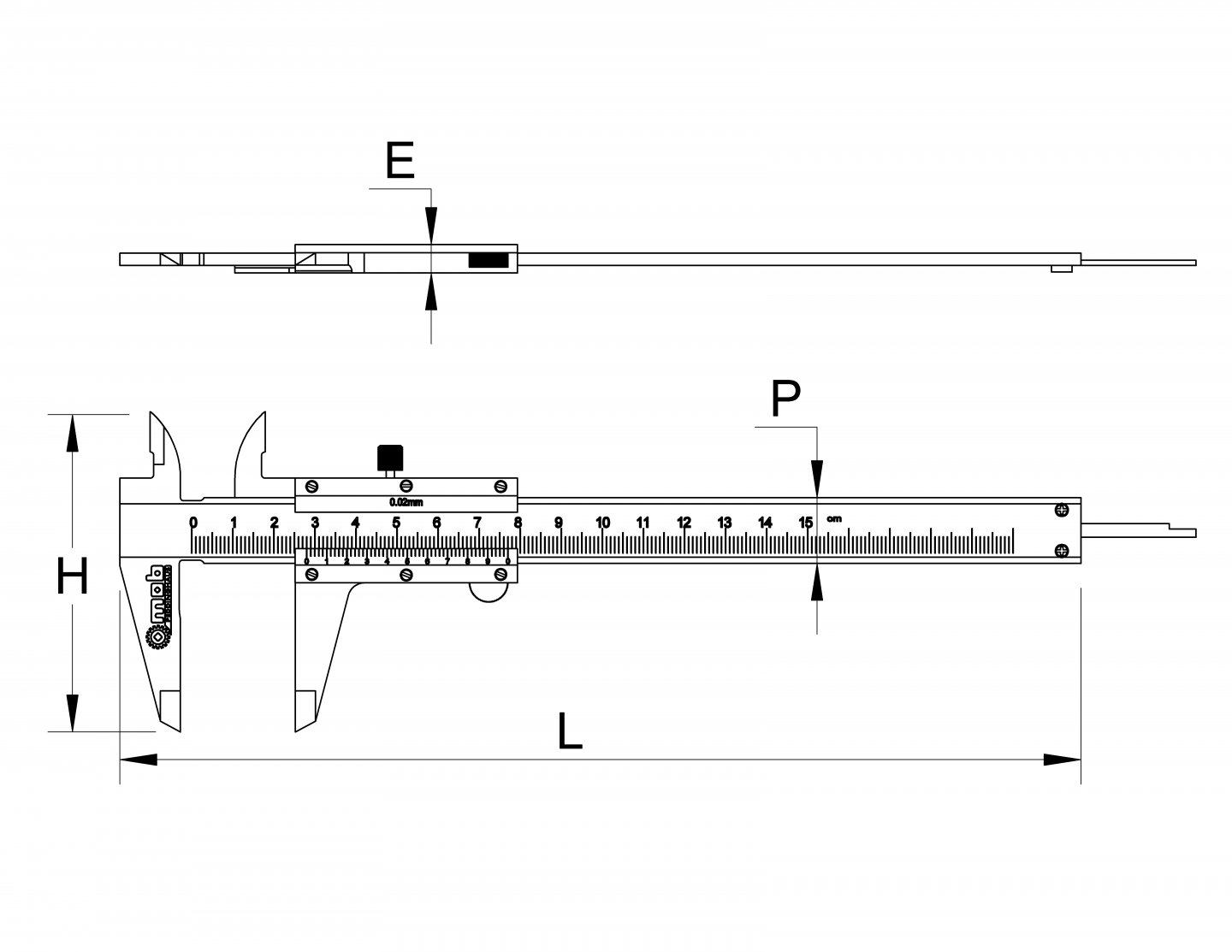

| L mm | H mm | E mm | P mm |  g | G |  | |||
|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 228 | 76 | 7 | 16 | 140 | 5200150101 | 1 | 3303800011038 | |
| 200 mm | 290 | 90 | 7 | 17 | 210 | 5200200101 | 1 | 3303800011045 |
