Circlip pliers, 90° jaws for external clips
ERGONOMY: The pliers' geometry is designed to set up circlips with just one hand. The release spring on external circlip pliers makes the handling of circlips easier. ...
HD Images
- ERGONOMY: The pliers' geometry is designed to set up circlips with just one hand.
- The release spring on external circlip pliers makes the handling of circlips easier.
- The pliers are chrome plated and the arms are sheathed for a better grip.
- NOSE PERFORMANCES: when handling, the outwards or inwards inclination of the noses avoids the circlips to slide.
- To increase their resistance, the noses are hardened by induction.
- The noses' diameters are designed with precision to fit the standardised holes of the circlips..

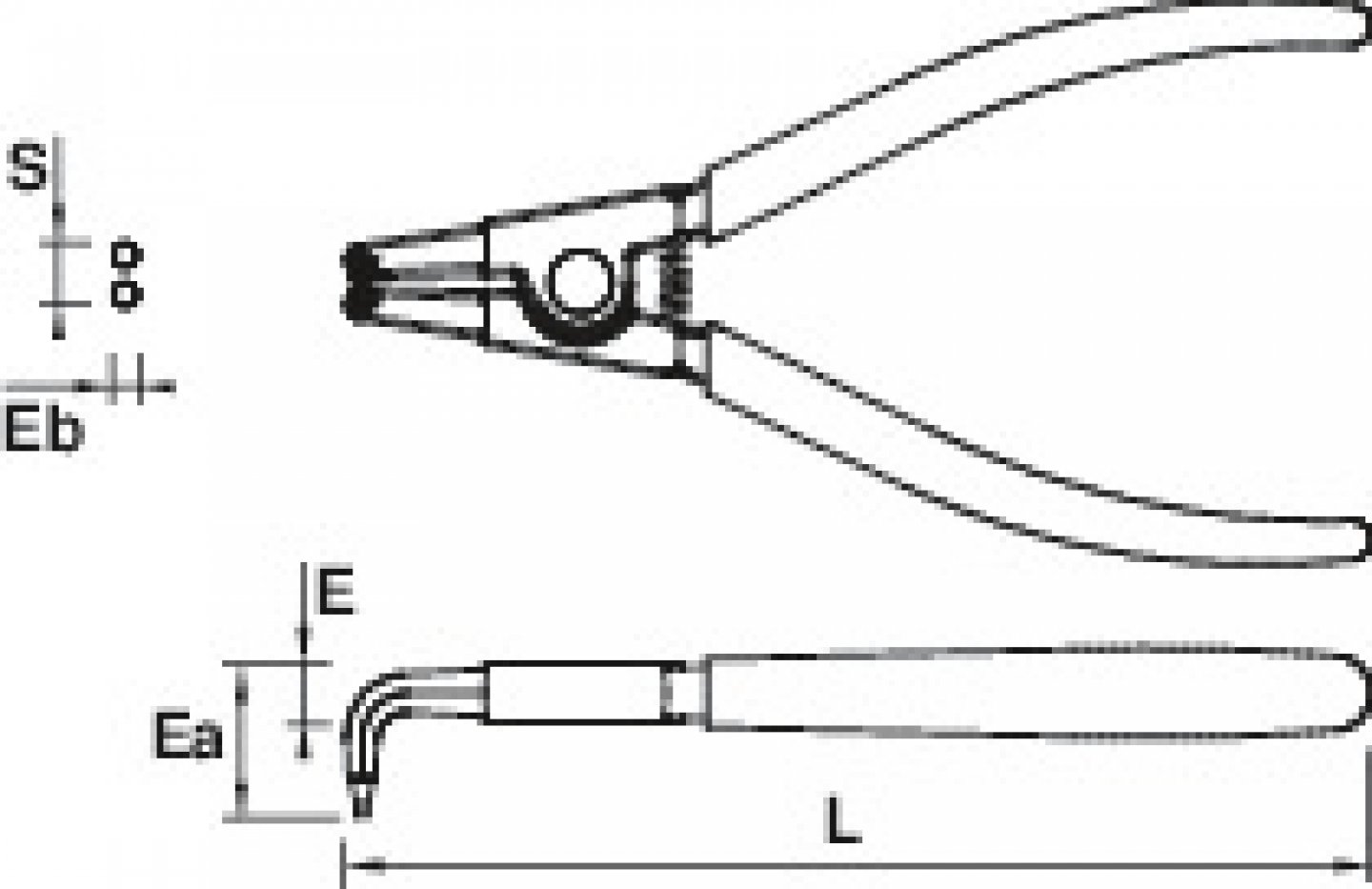

| Eb mm | Ø mm | L mm | S mm | E mm | Ea mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1,3 | 10-25 | 130 | 4,7 | 7,5 | 19,5 | 95 | E | 9323100001 | 1 | 3303809323101 |
| 1,8 | 19-60 | 169 | 6,2 | 9 | 23 | 150 | E | 9323190001 | 1 | 3303809323194 |
| 2,3 | 40-100 | 207 | 7,8 | 11 | 27 | 215 | E | 9323400001 | 1 | 3303809323408 |
