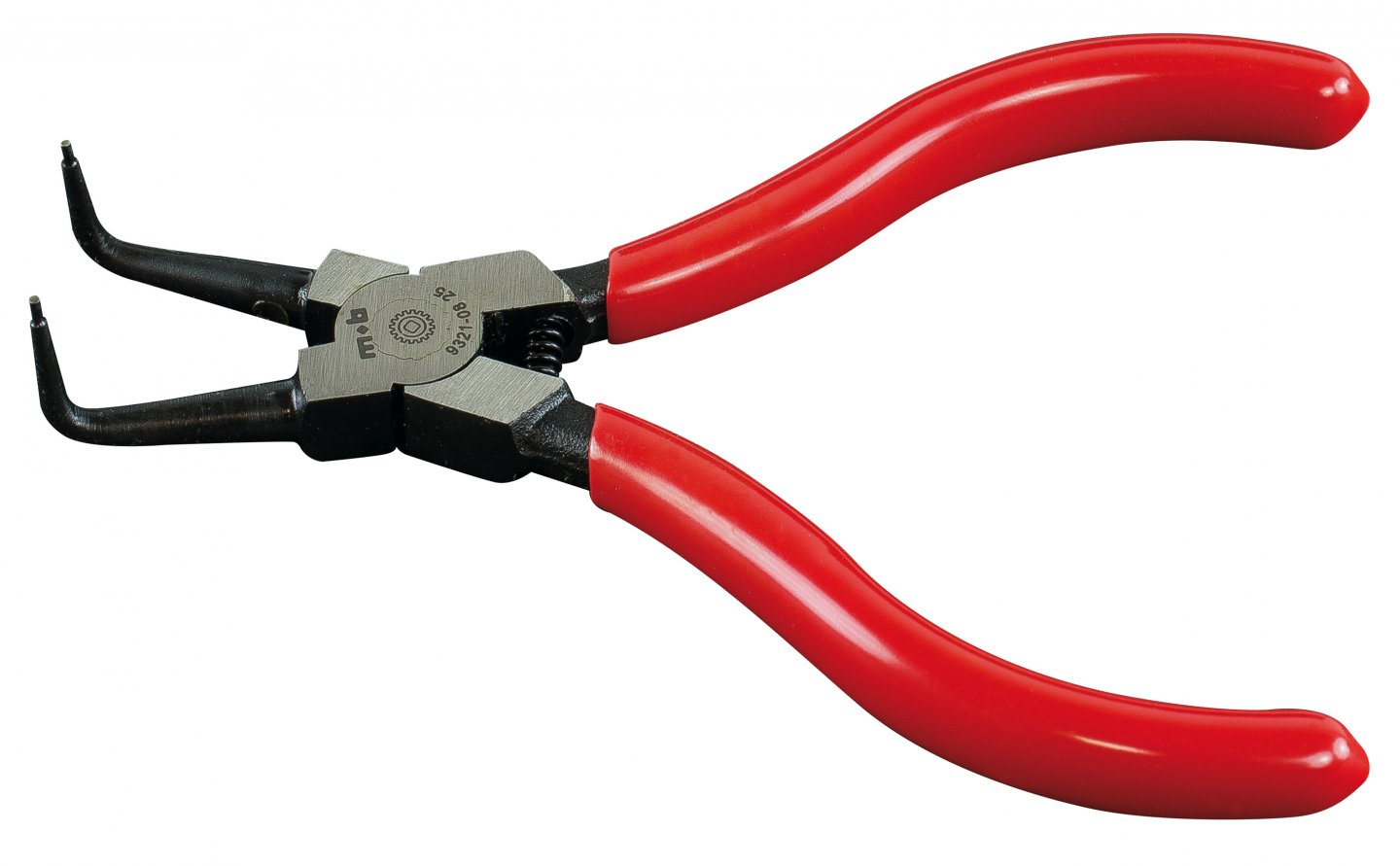

Circlip pliers, 90° jaws for internal clips
ERGONOMY: The pliers' geometry is designed to set up circlips with just one hand. The release spring on external circlip pliers makes the handling of circlips easier. ...
HD Images
- ERGONOMY: The pliers' geometry is designed to set up circlips with just one hand.
- The release spring on external circlip pliers makes the handling of circlips easier.
- The pliers are chrome plated and the arms are sheathed for a better grip.
- NOSE PERFORMANCES: when handling, the outwards or inwards inclination of the noses avoids the circlips to slide.
- To increase their resistance, the noses are hardened by induction.
- The noses' diameters are designed with precision to fit the standardised holes of the circlips..

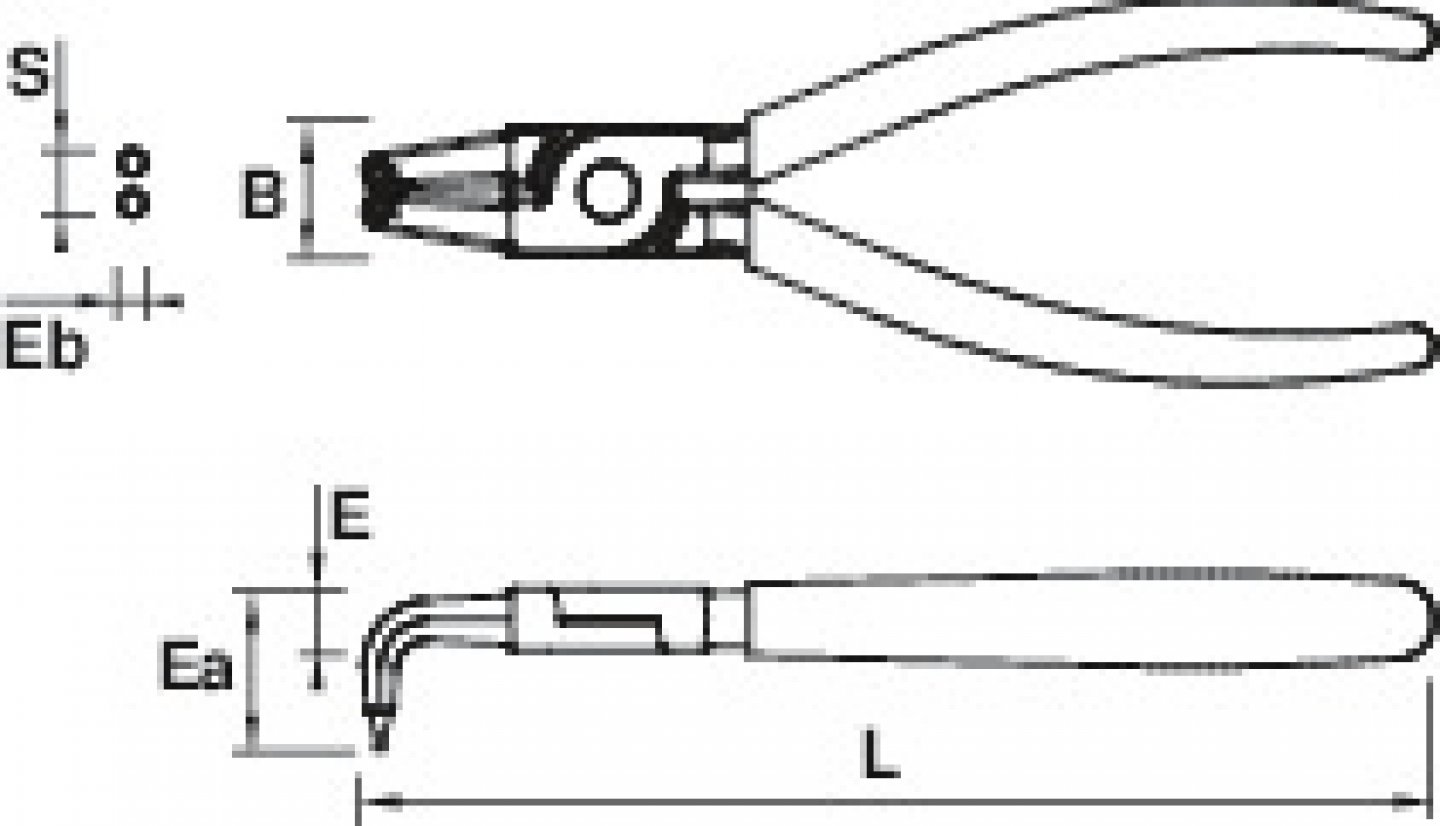

| Eb mm | Ø mm | L mm | B mm | S mm | E mm | Ea mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1,3 | 12-25 | 132 | 15 | 3,1 | 9 | 19,5 | 85 | E | 9321080001 | 1 | 3303809321107 |
| 1,8 | 19-60 | 169 | 19 | 5,2 | 9 | 23 | 140 | E | 9321190001 | 1 | 3303809321190 |
| 2,3 | 40-100 | 207 | 23 | 5,7 | 11 | 27 | 205 | E | 9321400001 | 1 | 3303809321404 |
Circlip pliers for internal clips
Circlip pliers for internal clips, on card

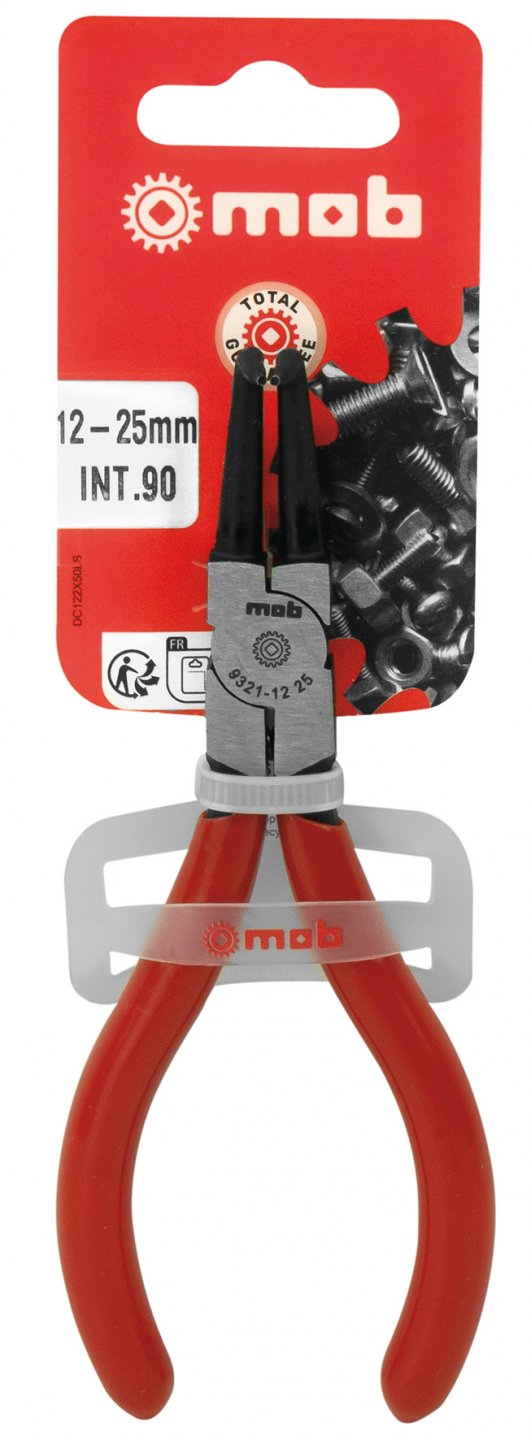

Circlip pliers, 90° jaws for internal clips, on card
