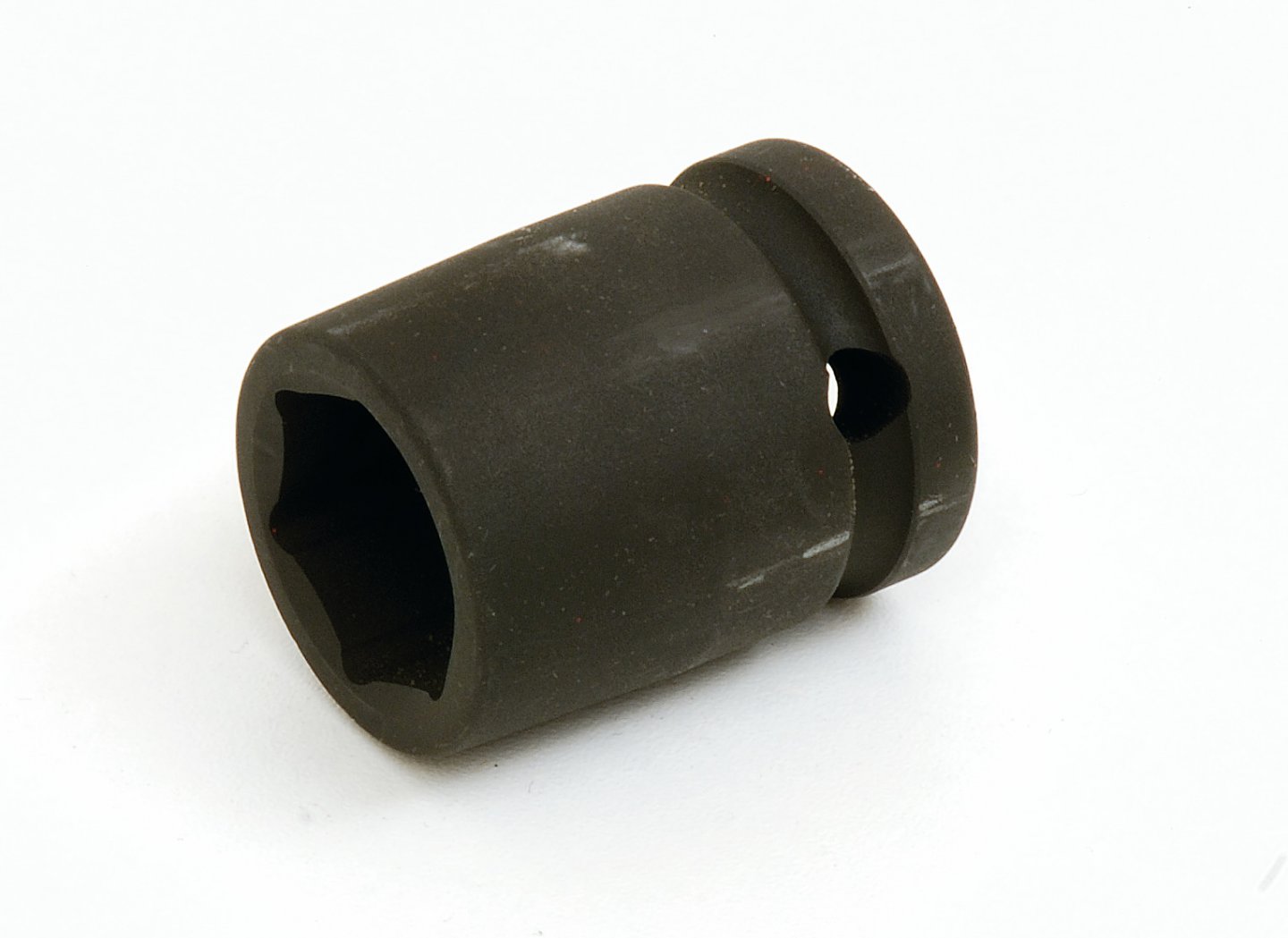

6 sides impact socket 1/2''

QUALITY: very high yield strength and resistance: quality steel and heat treatment. Conformity to norms: DIN 899, DIN 3121 & DIN 3129. Specially designed to use ...
Learn more
6 sides impact socket 1/2''
6 sides impact socket 1/2'' 02
6 sides impact socket 1/2''
6 sides impact socket 1/2'' 02
HD Images
  • QUALITY: very high yield strength and resistance: quality steel and heat treatment.
  • Conformity to norms: DIN 899, DIN 3121 & DIN 3129.
  • Specially designed to use with air or electric power tools.
  • Nota: pin and O-ring are not included..
Dim mmØDb mmØDa mmL mm gG
8 25 15 38 65 E 9212080501 1 3303801700528
10 25 17 38 65 E 9212100501 1 3303801700993
13 25 21 38 75 E 9212130501 1 3303801700955
14 25 22.5 38 80 E 9212140501 1 3303801700443
15 30 23 38 110 E 9212150501 1 3303801700658
16 30 25 38 450 E 9212160501 1 3303801700917
17 30 26 38 120 E 9212170501 1 3303801700412
18 30 27.5 38 120 E 9212180501 1 3303801700627
19 30 28.5 38 120 E 9212190501 1 3303801700894
21 30 31 38 130 E 9212210501 1 3303801700597
22 30 32.5 38 140 E 9212220501 1 3303801700856
24 30 35 38 145 E 9212240501 1 3303801700566
27 30 38.5 45 200 E 9212270501 1 3303801700535
30 30 42 50 255 E 9212300501 1 3303801700498
32 30 44 50 270 E 9212320501 1 3303801700962
