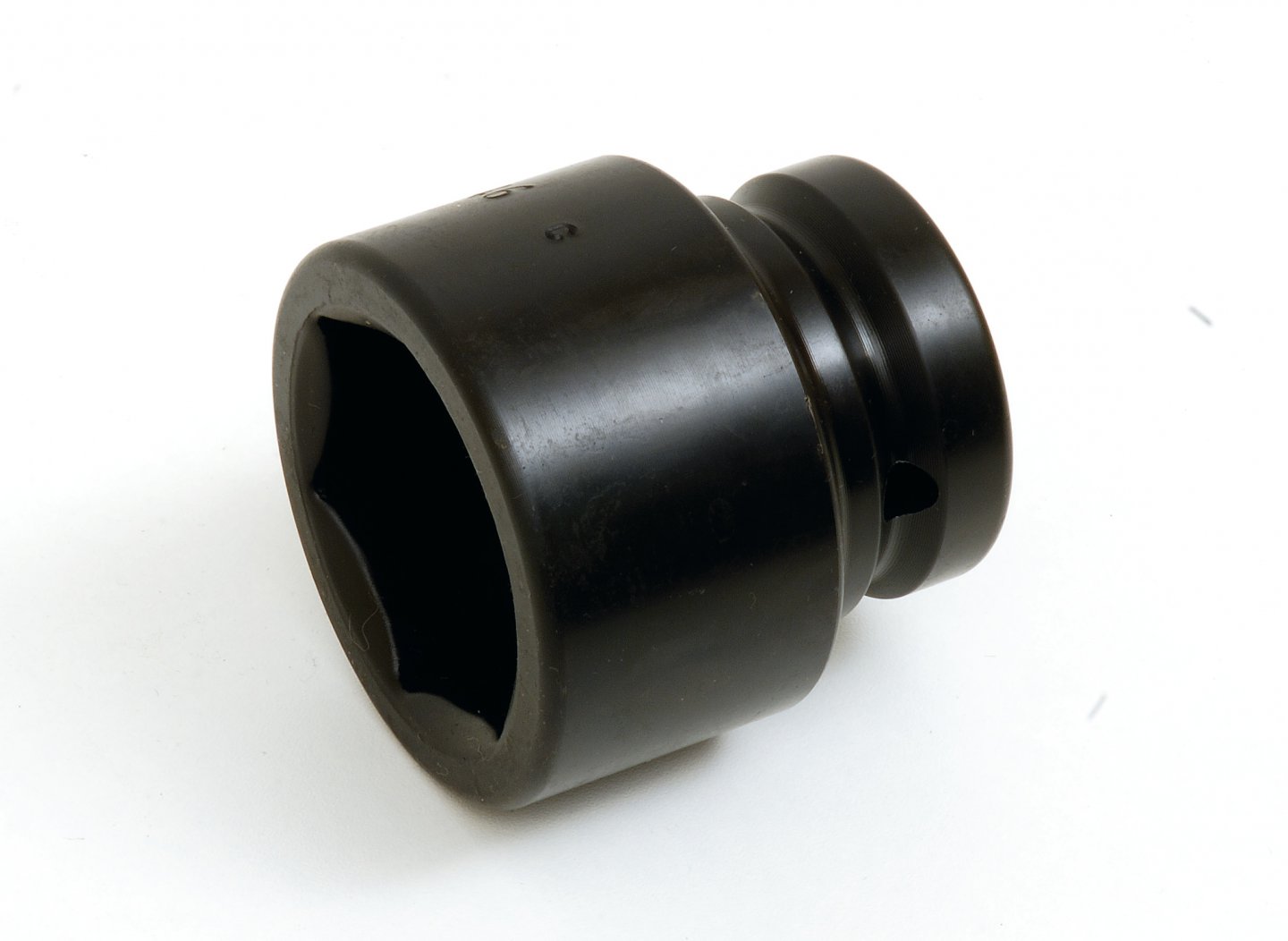

6 sides impact socket 3/4''

Designed to withstand the stresses of power tools: impact wrenches, screwdrivers. Nota: the pin and the O-ring are not delivered with the product.
Learn more
6 sides impact socket 3/4''
6 sides impact socket 3/4'' 02
6 sides impact socket 3/4''
6 sides impact socket 3/4'' 02
HD Images
  • Designed to withstand the stresses of power tools: impact wrenches, screwdrivers.
  • Nota: the pin and the O-ring are not delivered with the product..

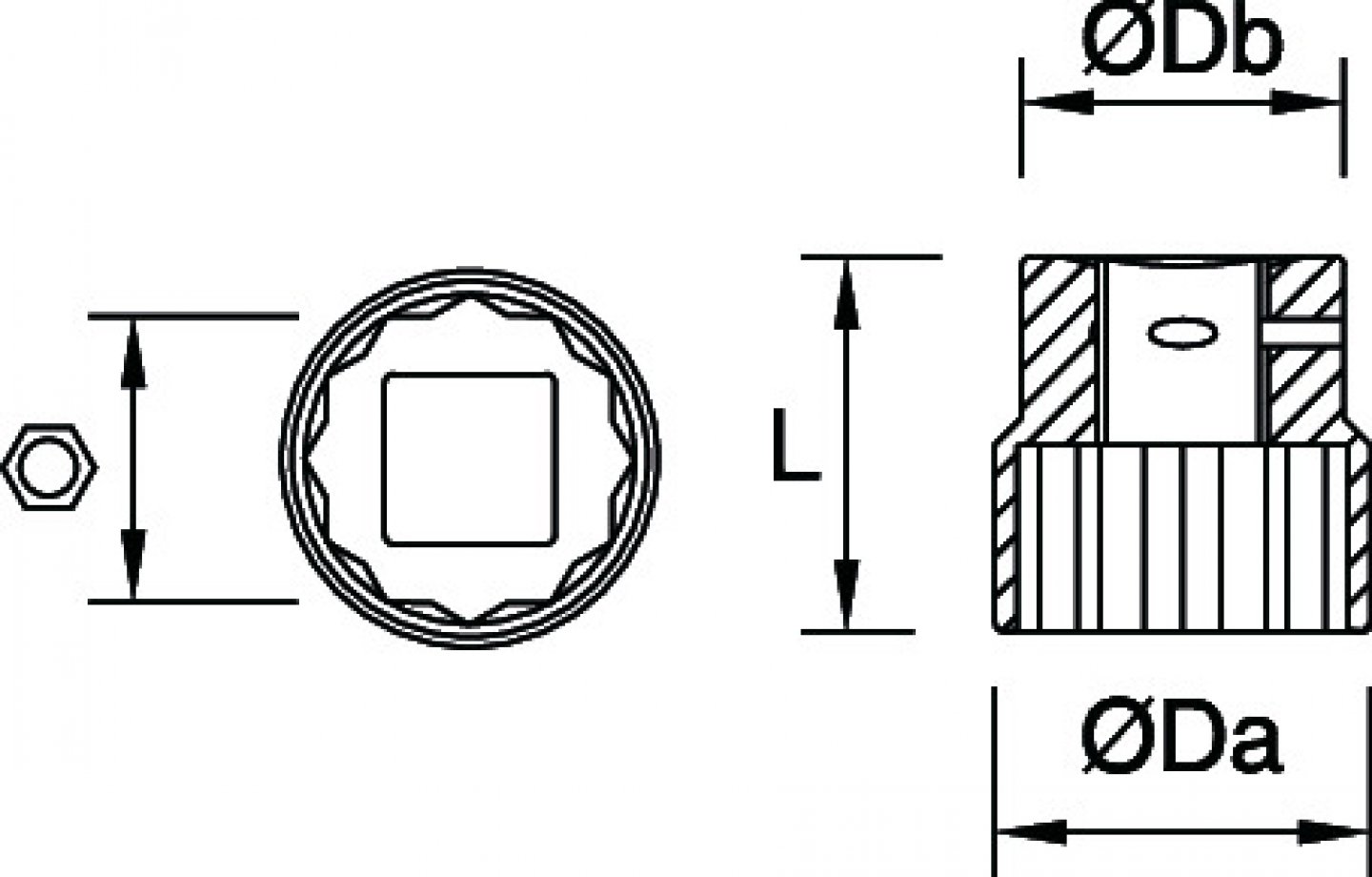

Dim mmØDb mmØDa mmL mm gG
19 44 32.5 51 335 E 9213190501 1 3303801700573
22 44 36 51 350 E 9213220501 1 3303801700542
23 44 37.5 51 355 E 9213230501 1 3303801700764
24 44 38.5 51 360 E 9213240501 1 3303801701013
27 44 42.5 53 375 E 9213270501 1 3303801700979
28 44 44 53 385 E 9213280501 1 3303801700467
29 44 45 53 390 E 9213290501 1 3303801700672
30 44 46 53 395 E 9213300501 1 3303801700924
32 44 48.5 57 445 E 9213320501 1 3303801700634
33 44 50 57 465 E 9213330501 1 3303801700900
34 44 51 57 465 E 9213340501 1 3303801701099
35 44 52.5 57 485 E 9213350501 1 3303801700610
36 44 53.5 57 490 E 9213360501 1 3303801700870
38 44 56 57 515 E 9213380501 1 3303801700580
41 44 60 58 565 E 9213410501 1 3303801700559
42 44 61 58 575 E 9213420501 1 3303801700771
46 44 66 62 665 E 9213460501 1 3303801700986
