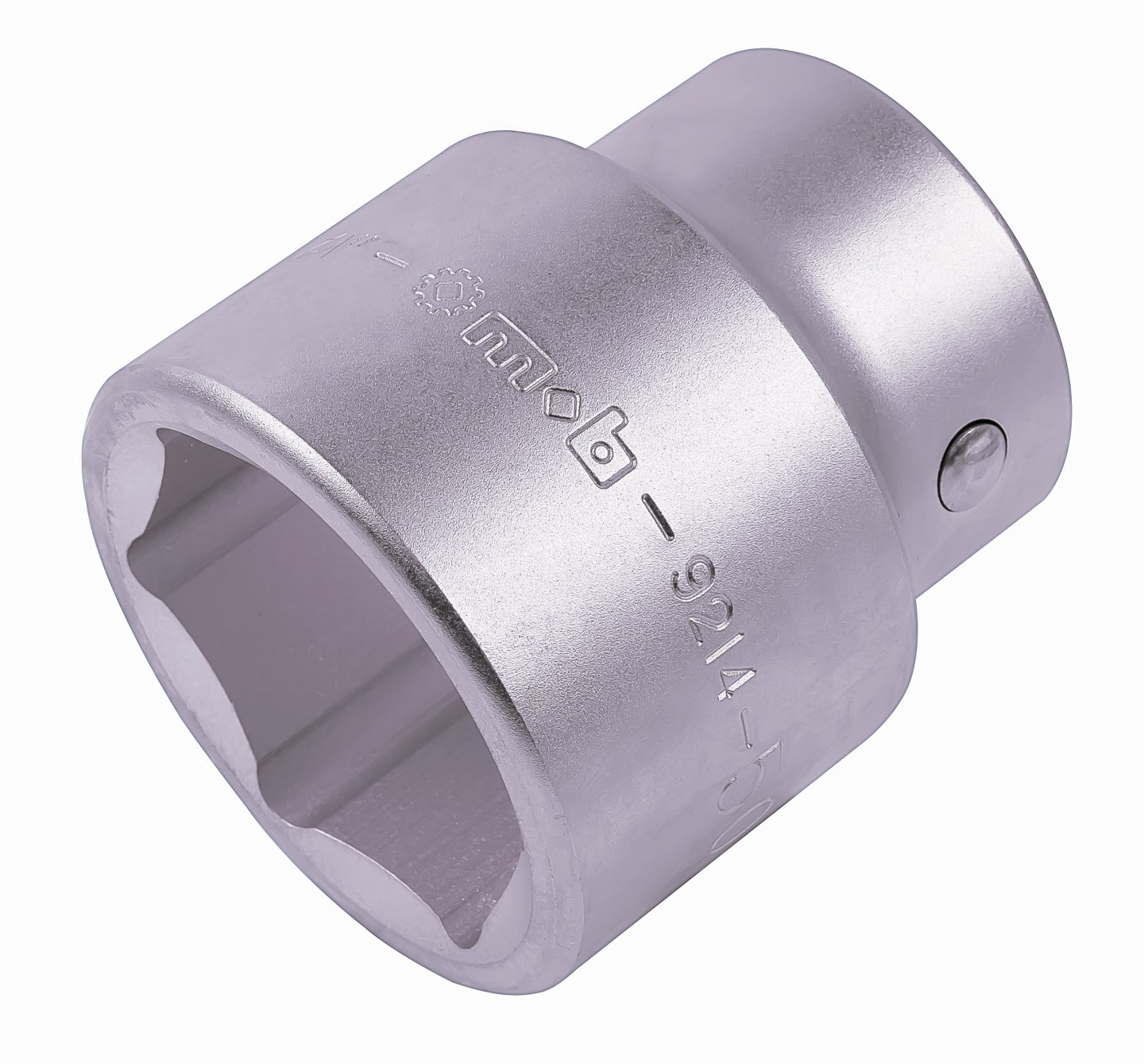

6 sides sockets 1''
Sockets mounted with a "lock pin" plunger: allows the sleeve of the element (extension, ratchet) to be secured. Protection radius of the square: distributes the ...
HD Images
- Sockets mounted with a "lock pin" plunger: allows the sleeve of the element (extension, ratchet) to be secured.
- Protection radius of the square: distributes the load and prevents the bushing from breaking.
- Sockets 100% forged turned.
- Made of chrome-vanadium steel, the best material for the manufacture of sockets.
- Hardness: from 40 to 46 Hrc.
- Optimum hardness / longevity ratio..

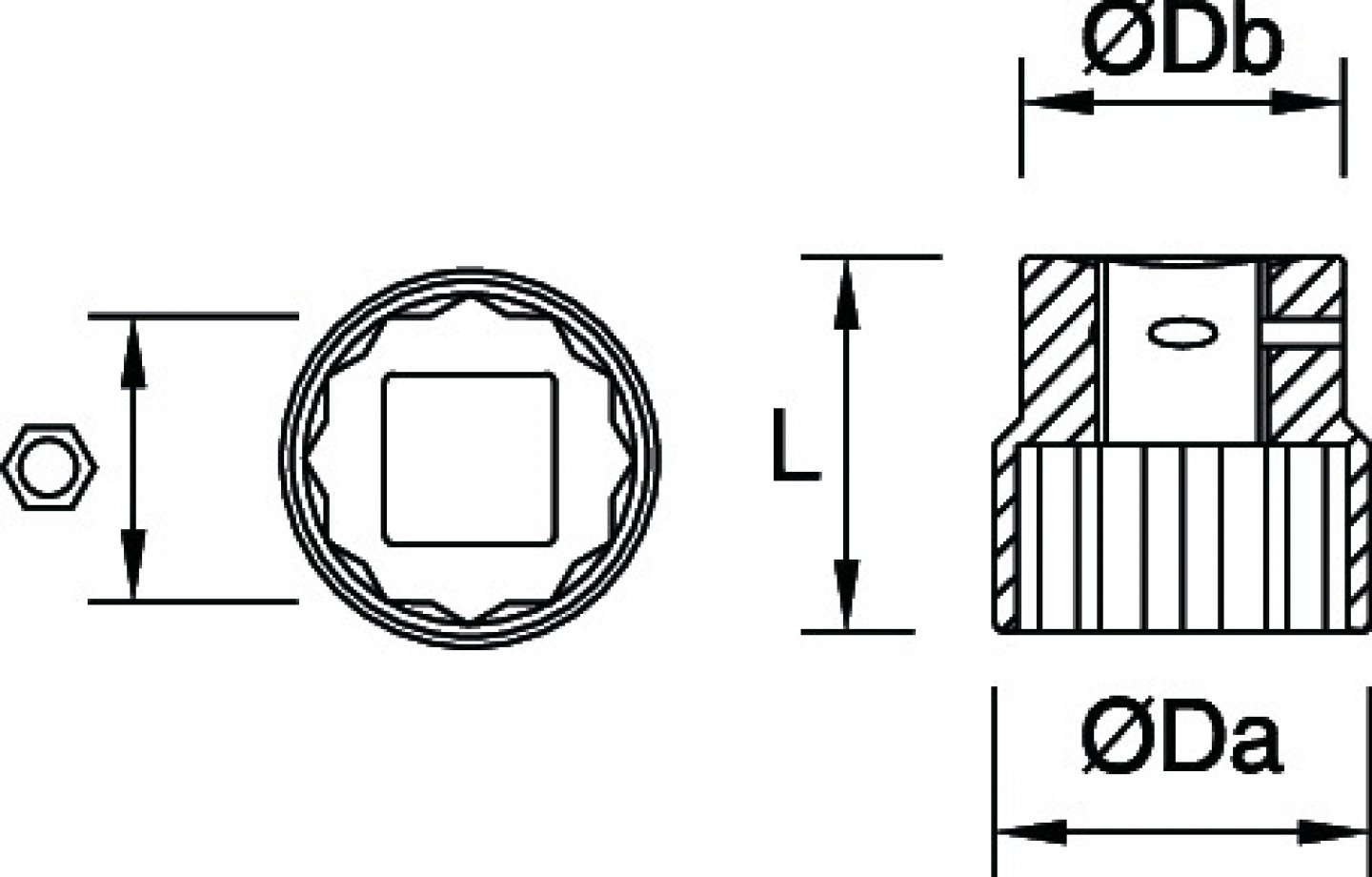

| Dim mm | L mm | ØDa mm | ØDb mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|
| 36 | 65 | 53 | 45 | 480 | E | 9214360001 | 1 | 3303809001429 |
| 41 | 71 | 57 | 45 | 570 | E | 9214410001 | 1 | 3303809001436 |
| 46 | 76 | 65 | 50 | 805 | E | 9214460001 | 1 | 3303809001443 |
| 50 | 78 | 71 | 55 | 965 | E | 9214500001 | 1 | 3303809001450 |
| 55 | 81 | 77 | 57 | 1145 | E | 9214550001 | 1 | 3303809001467 |
| 60 | 84 | 82 | 57 | 1285 | E | 9214600001 | 1 | 3303809001474 |
| 65 | 89 | 89 | 57 | 1490 | E | 9214650001 | 1 | 3303809001481 |
| 70 | 94 | 94 | 68 | 1895 | E | 9214700001 | 1 | 3303809001498 |
| 75 | 98 | 100 | 68 | 2140 | E | 9214750001 | 1 | 3303809001504 |
| 80 | 104 | 105 | 68 | 2285 | E | 9214800001 | 1 | 3303809001528 |
