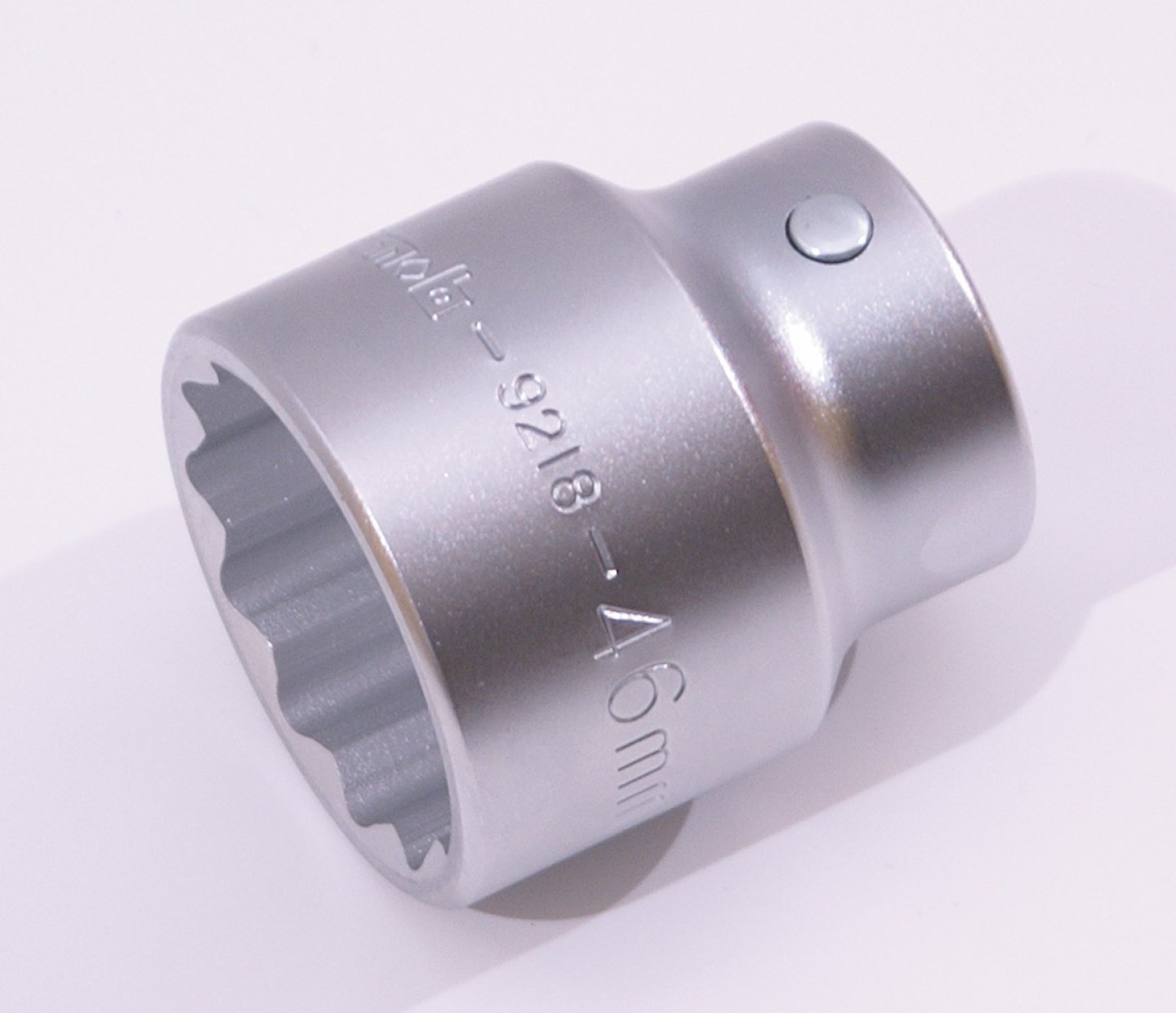

12 sides socket 3/4''

Bushings mounted with a "lock pin" plunger: allows the sleeve of the element (extension, ratchet) to be secured. Protection radius of the square: distributes the ...
Learn more
12 sides socket 3/4''
12 sides socket 3/4'' 02
12 sides socket 3/4'' 03
12 sides socket 3/4'' 04
12 sides socket 3/4''
12 sides socket 3/4'' 02
12 sides socket 3/4'' 03
12 sides socket 3/4'' 04
HD Images
  • Bushings mounted with a "lock pin" plunger: allows the sleeve of the element (extension, ratchet) to be secured.
  • Protection radius of the square: distributes the load and prevents the bushing from breaking.
  • Sockets 100% forged turned.
  • Made of chrome-vanadium steel, the best material for the manufacture of sockets.
  • Hardness: from 44 to 48 Hrc.
  • Optimum hardness / longevity ratio..

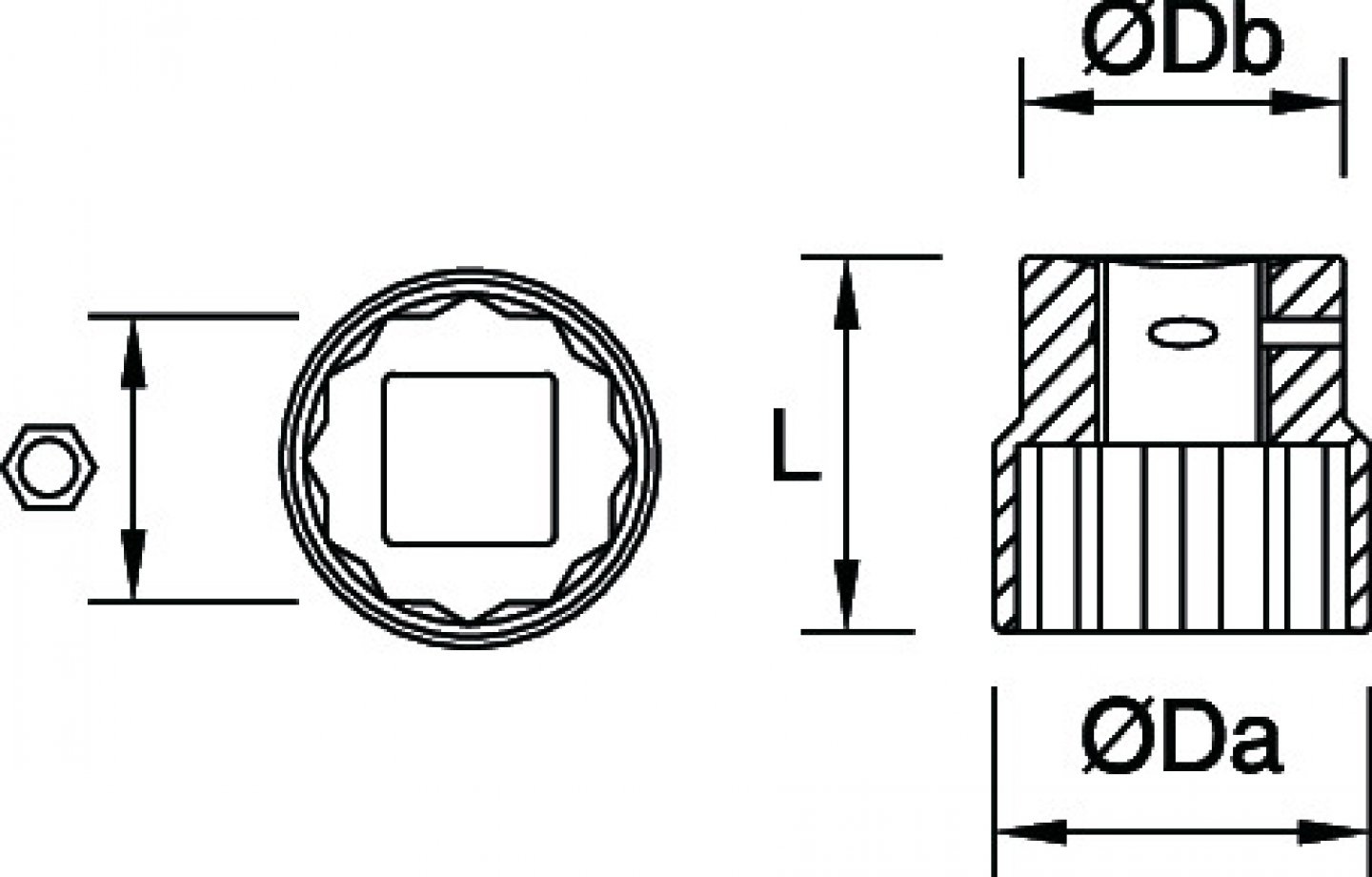

Dim mmL mmØDa mmØDb mm gG
22 51 33 36 215 E 9218220001 1 3303809000637
23 50 34 36 220 E 9218230001 1 3303809000644
24 52 34 36 230 E 9218240001 1 3303809000651
26 52 37 36 220 E 9218260001 1 3303809000668
27 52 38 36 250 E 9218270001 1 3303809000675
28 52 39 36 250 E 9218280001 1 3303809000682
29 53 42 38 275 E 9218290001 1 3303809000699
30 53 42 38 275 E 9218300001 1 3303809000729
32 56 44 38 295 E 9218320001 1 3303809000736
33 56 46 38 320 E 9218330001 1 3303809000743
35 58 48 42 380 E 9218350001 1 3303809000750
36 57 50 42 410 E 9218360001 1 3303809000767
38 60 53 45 465 E 9218380001 1 3303809000774
40 62 54 45 495 E 9218400001 1 3303809000781
41 64 56 45 545 E 9218410001 1 3303809000798
42 64 57 45 550 E 9218420001 1 3303809000828
46 68 62 47 640 E 9218460001 1 3303809000835
50 72 69 49 770 E 9218500001 1 3303809000842
55 72 69 49 770 E 9218550001 1 3303809000859
