6 sides socket 3/4''

Bushings mounted with a "lock pin" plunger: allows the sleeve of the element (extension, ratchet) to be secured. Protection radius of the square: distributes the ...
Learn more
6 sides socket 3/4''
6 sides socket 3/4'' 02
6 sides socket 3/4'' 03
6 sides socket 3/4'' 04
6 sides socket 3/4''
6 sides socket 3/4'' 02
6 sides socket 3/4'' 03
6 sides socket 3/4'' 04
HD Images
  • Bushings mounted with a "lock pin" plunger: allows the sleeve of the element (extension, ratchet) to be secured.
  • Protection radius of the square: distributes the load and prevents the bushing from breaking.
  • Sockets 100% forged turned.
  • Made of chrome-vanadium steel, the best material for the manufacture of sockets.
  • Hardness: from 40 to 46 Hrc.
  • Optimum hardness / longevity ratio..

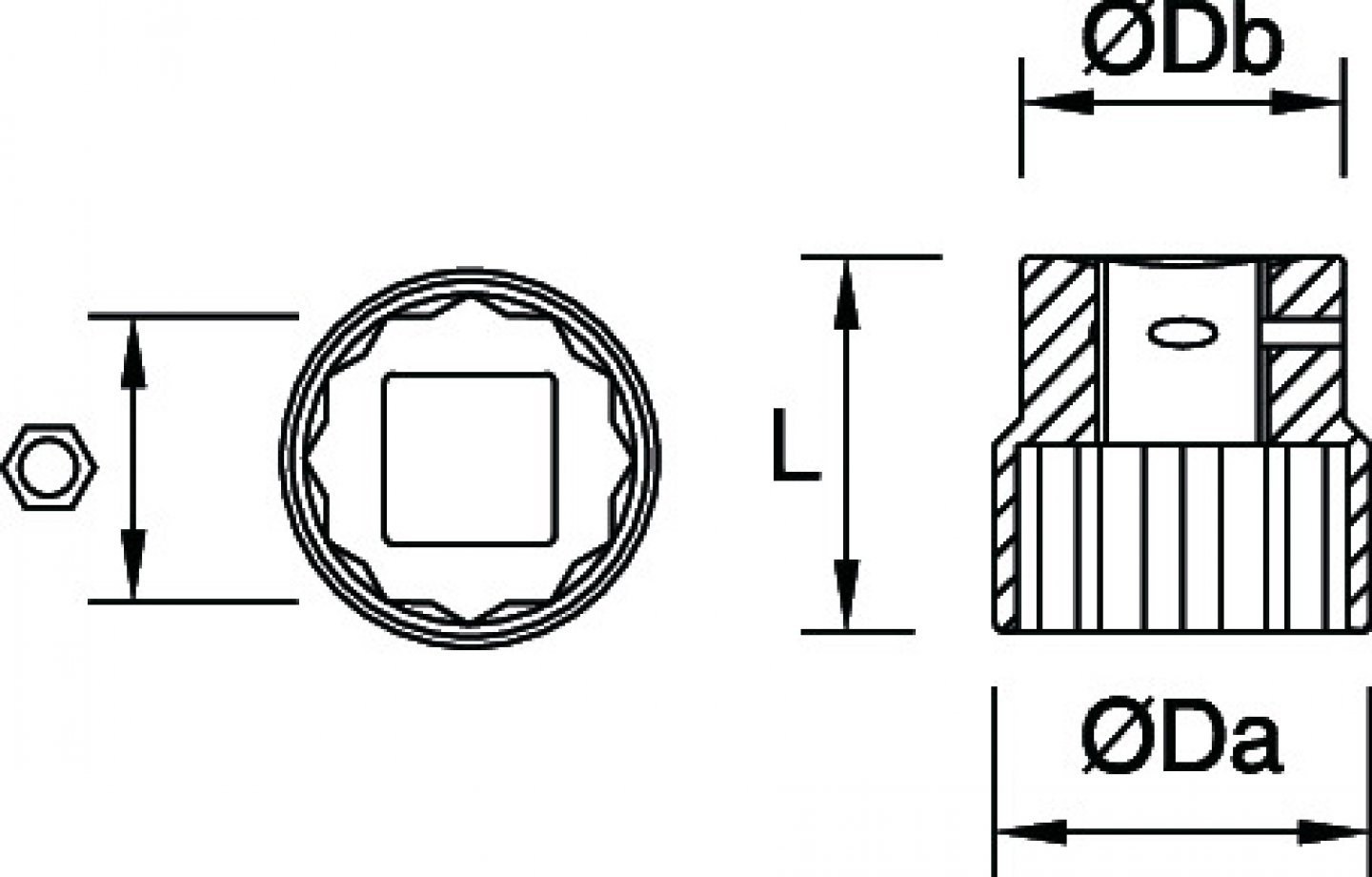

Dim mmL mmØDa mmØDb mm gG
22 50 32 36 215 E 9213220001 1 3303809000972
24 51 34 36 230 E 9213240001 1 3303809000996
27 52 38 36 250 E 9213270001 1 3303809001023
28 52 39 36 250 E 9213280001 1 3303809001030
29 52 40 36 275 E 9213290001 1 3303809001047
30 54 42 36 275 E 9213300001 1 3303809001054
32 56 44 36 295 E 9213320001 1 3303809001078
33 56 46 36 340 E 9213330001 1 3303809001207
36 58 50 38 410 E 9213360001 1 3303809001337
38 60 52 38 465 E 9213380001 1 3303809001344
41 64 56 40 545 E 9213410001 1 3303809001368
46 66 62 42 640 E 9213460001 1 3303809001382
50 70 68 42 770 E 9213500001 1 3303809001399
55 76 74 45 770 E 9213550001 1 3303809001405
