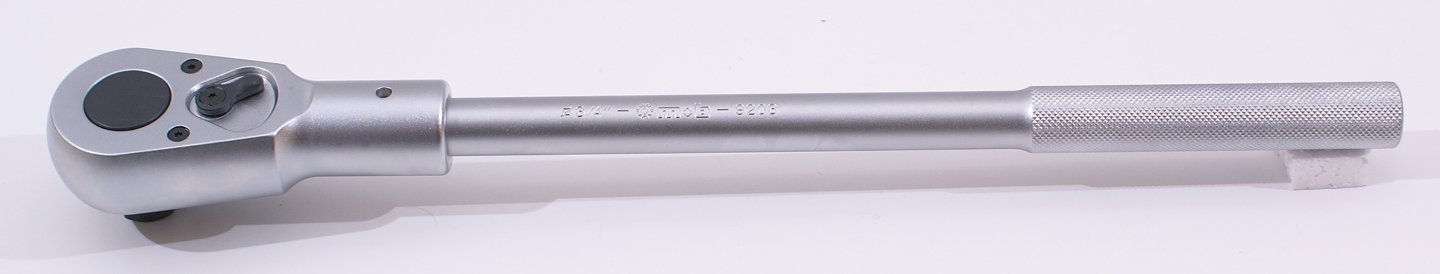

Reversible ratchet 3/4''
COMPACT TOOL: for an easy access to narrow spaces. 3/4": 9° increments (40 teeth)/ 1": 10° increments (36 teeth). Integrated direction reversing system: Controlled ...



HD Images
- COMPACT TOOL: for an easy access to narrow spaces.
- 3/4": 9° increments (40 teeth)/ 1": 10° increments (36 teeth).
- Integrated direction reversing system: Controlled changing with just one hand.
- Handle easy to dismantle.
- SOCKETS: sockets designed with a "lock pin": links the socket to the accessory (extension bar, ratchet).
- SAFETY PROFILE OF THE SQUARE: increases the socket resistance thanks to the good spread of the mechanical efforts.
- QUALITY: 100% Forged and turned sockets.
- Chrome-vanadium steel manufacturing: the best material for the sockets manufacturing.
- HARDNESS: From 44 to 48 HRC (from 40 to 46 for the 1" sockets) and optimum hardness / lifetime product ratio.
- DIN 3120 and ISO 1174-1.
- FINISH: 2 nickel layers and 1 chrome layer to improve the finishing durability..

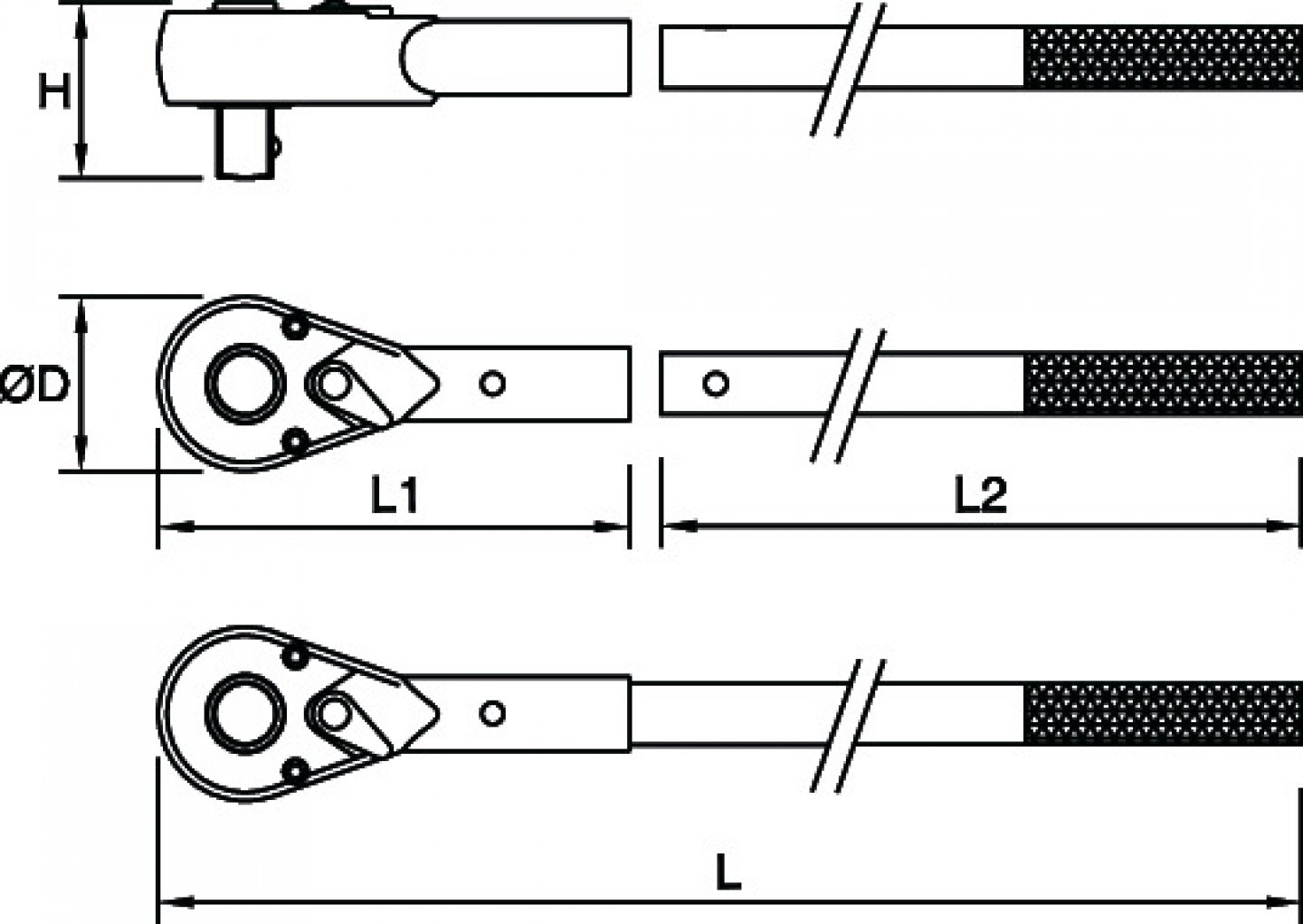

| L mm | ØD mm | H mm | g | G | ![]() | ||||
|---|---|---|---|---|---|---|---|---|---|
| 505 | 155 | 385 | 62,5 | 57 | 2800 | E | 9203400101 | 1 | 3303809001542 |
