Home Ratchets and sockets Ratchet / sockets 3/8” 12-point bi-hex socket, 3/8''

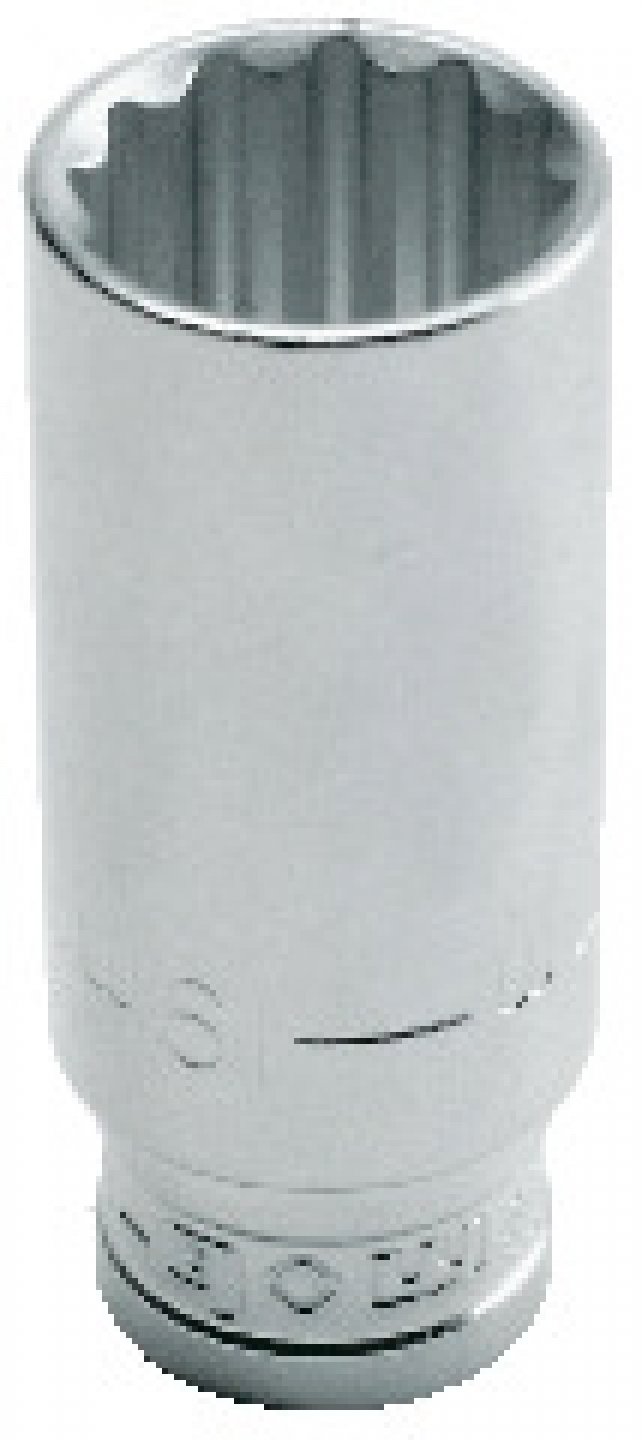

12-point bi-hex socket, 3/8''

ERGONOMY: The socket handling is easy thanks to its external shape: Good grip. The form of the sockets is marked so that they can be found easily. Chrome vanadium ...
Learn more
12-point bi-hex socket, 3/8''
12-point bi-hex socket, 3/8'' 02
12-point bi-hex socket, 3/8'' 03
12-point bi-hex socket, 3/8'' 04
12-point bi-hex socket, 3/8''
12-point bi-hex socket, 3/8'' 02
12-point bi-hex socket, 3/8'' 03
12-point bi-hex socket, 3/8'' 04
HD Images
  • ERGONOMY: The socket handling is easy thanks to its external shape: Good grip.
  • The form of the sockets is marked so that they can be found easily.
  • Chrome vanadium steel, best material for sockets and other accessories.
  • Removing the sharp angles of the squares increases their resistance.
  • Chrome-Vanadium steel bushing, the best material for the manufacture of sockets and accessories..

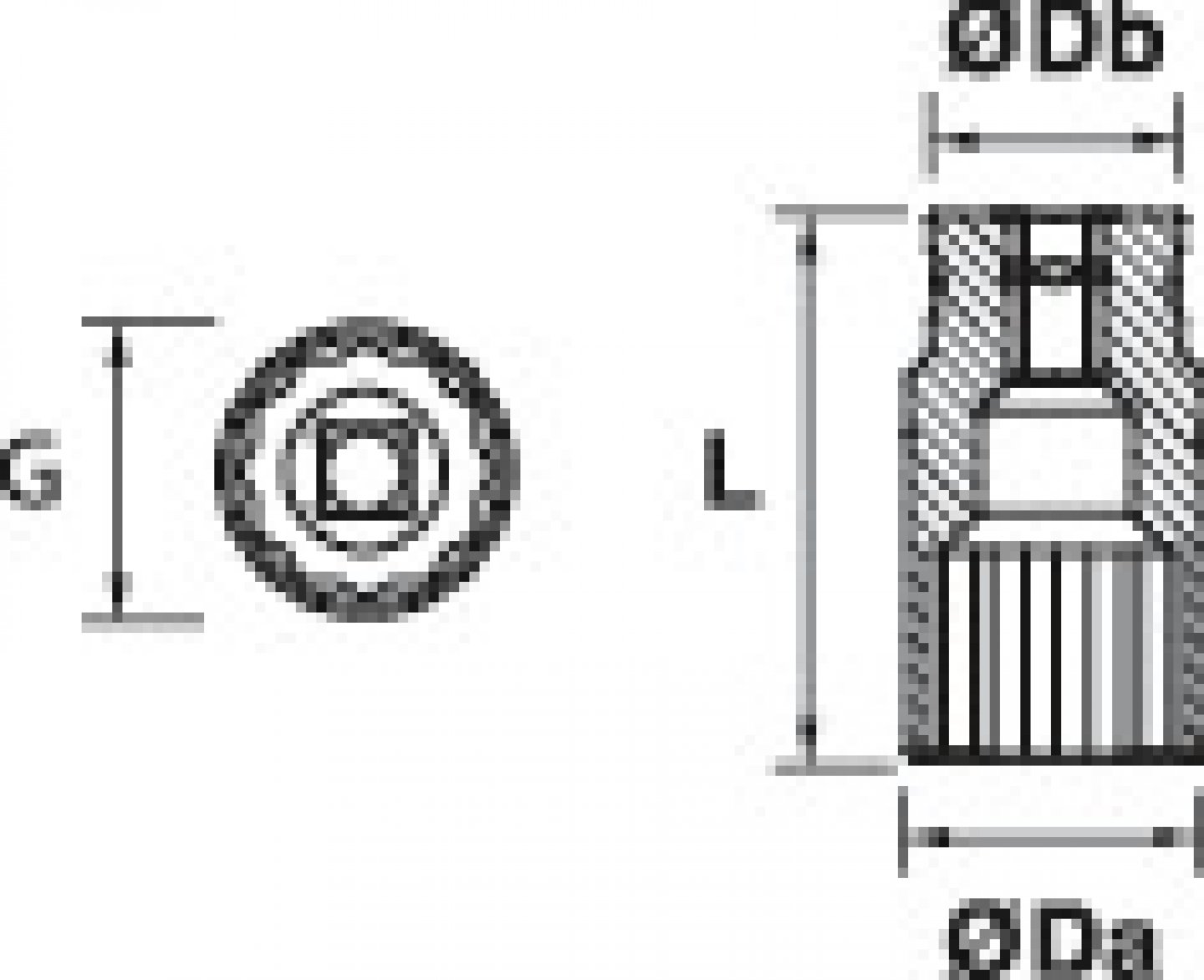

Dim mmØDb mmØDa mmL mm gG
7 16,9 10,7 63 48 E 9226070001 5 3303809226075
8 16,9 11,9 63 49 E 9226080001 5 3303809226082
9 16,9 13,2 63 52 E 9226090001 5 3303809226099
10 16,9 14,4 63 52 E 9226100001 5 3303809226105
11 16,9 15,7 63 60 E 9226110001 5 3303809226112
12 16,9 16,4 63 73 E 9226120001 5 3303809226129
13 17 17,8 63 74 E 9226130001 5 3303809226136
15 18 21 63 84 E 9226150001 5 3303809226150
16 18 21,8 63 97 E 9226160001 5 3303809226167
17 19 23,8 63 123 E 9226170001 5 3303809226174
18 20 24,6 63 124 E 9226180001 5 3303809226181
19 20 25,7 63 138 E 9226190001 5 3303809226198
20 20 27,2 63 157 E 9226200001 5 3303809226204
21 22 28 63 164 E 9226210001 5 3303809226211
22 22 29,7 63 188 E 9226220001 5 3303809226228
23 22 31 63 194 E 9226230001 5 3303809226235
24 22 31,9 63 210 E 9226240001 5 3303809226242
