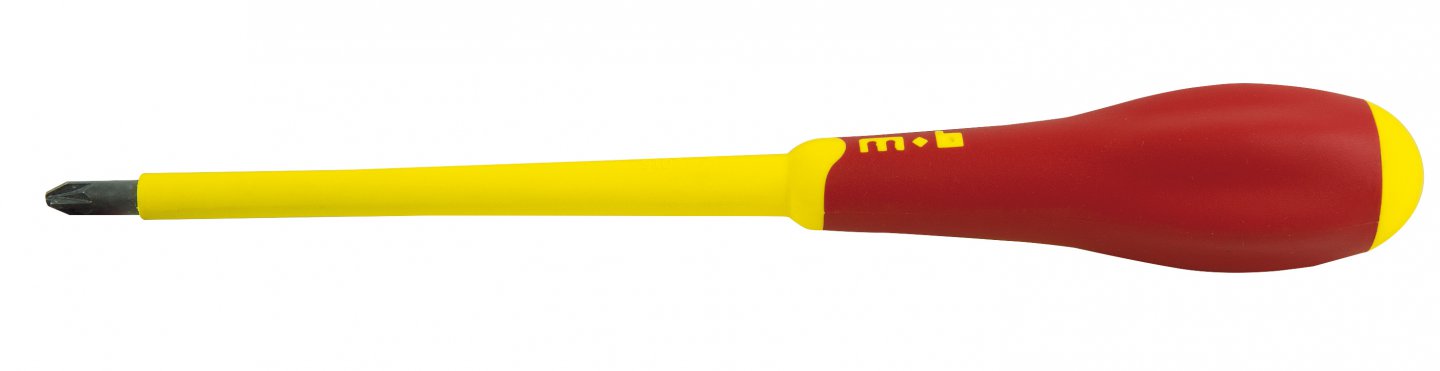

Screwdriver - plus-minus
With a special tip for different applications (terminal strips, relays, circuit breakers, switch cabinets , distributor boxes, ...). Combined Pozidriv/slotted head. ...
HD Images
- With a special tip for different applications (terminal strips, relays, circuit breakers, switch cabinets , distributor boxes, ...).
- Combined Pozidriv/slotted head.
- With handle marking to make finding and sorting the tool easier.
- High torque.
- Resistant.
- SAFETY AT WORK: conformity with the European norm EN60900.
- Tools for jobs of 1000 V AC, 1500 V DC.
- Each screwdriver's insulation is tested unitarily at 10 000 V.
- THE VDE-GS control organisation certifies the products conformity with the norm as well as the manufacturing process.
- Each lot and sample is tested: voltage test, test of the stability of the insulation material on the tool, fire resistance.
- This quality is guaranteed by the screwdriver marking: 1000 V AC DVE GS.
- PERFORMANCE: the blades high insulation is obtained by injection.
- The blades steel is alloyed with chrome, vanadium and molybdenum; they are machined and hardened to get the precision and durability of the ends.
- The bi-material ergonomic handle allows to gain power without getting tired..
| Type | L mm | L1 mm | L2 mm | ØDa mm | Db mm | ØDc mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PZF1 | 198 | 100 | 16 | 4,5 | 28 | 6,3 | 45 | G10 | 9103521001 | 1 | 3303809013163 |
| PZF2 | 232 | 125 | 16 | 6 | 33 | 7,8 | 80 | G10 | 9103531001 | 1 | 3303809013170 |
