Screwdrivers - pozidriv
SAFETY AT WORK: conformity with the European norm EN60900. Tools for jobs of 1000 V AC, 1500 V DC. Each screwdriver's insulation is tested unitarily at 10 000 V. ...
HD Images
- SAFETY AT WORK: conformity with the European norm EN60900.
- Tools for jobs of 1000 V AC, 1500 V DC.
- Each screwdriver's insulation is tested unitarily at 10 000 V.
- THE VDE-GS control organisation certifies the products conformity with the norm as well as the manufacturing process.
- Each lot and sample is tested: voltage test, test of the stability of the insulation material on the tool, fire resistance.
- This quality is guaranteed by the screwdriver marking: 1000 V AC DVE GS.
- PERFORMANCE: the blade’s high insulation is obtained by injection.
- The blade’s steel is alloyed with chrome, vanadium and molybdenum; they are machined and hardened to get the precision and durability of the ends.
- The bi-material ergonomic handle allows to gain power without getting tired..

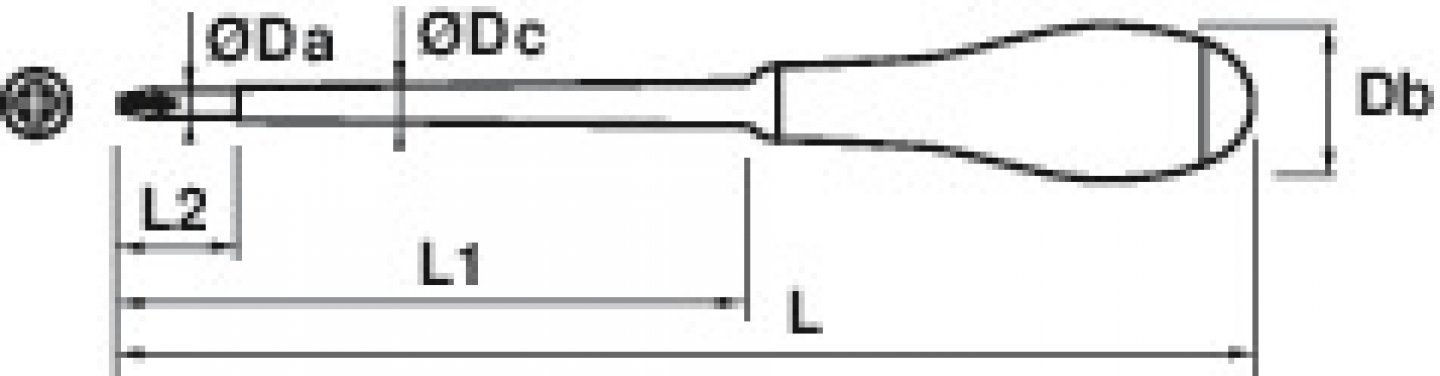

| Type | L mm | L1 mm | L2 mm | ØDa mm | Db mm | ØDc mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PZ0 | 164 | 75 | 13 | 3,5 | 23 | 5,3 | 25 | G10 | 9103510001 | 1 | 3303809013132 |
| PZ1 | 198 | 100 | 16 | 4,5 | 28 | 6,3 | 45 | G10 | 9103520001 | 1 | 3303809103529 |
| PZ2 | 232 | 125 | 16 | 6 | 33 | 7,8 | 80 | G10 | 9103530001 | 1 | 3303809103536 |
